Overview

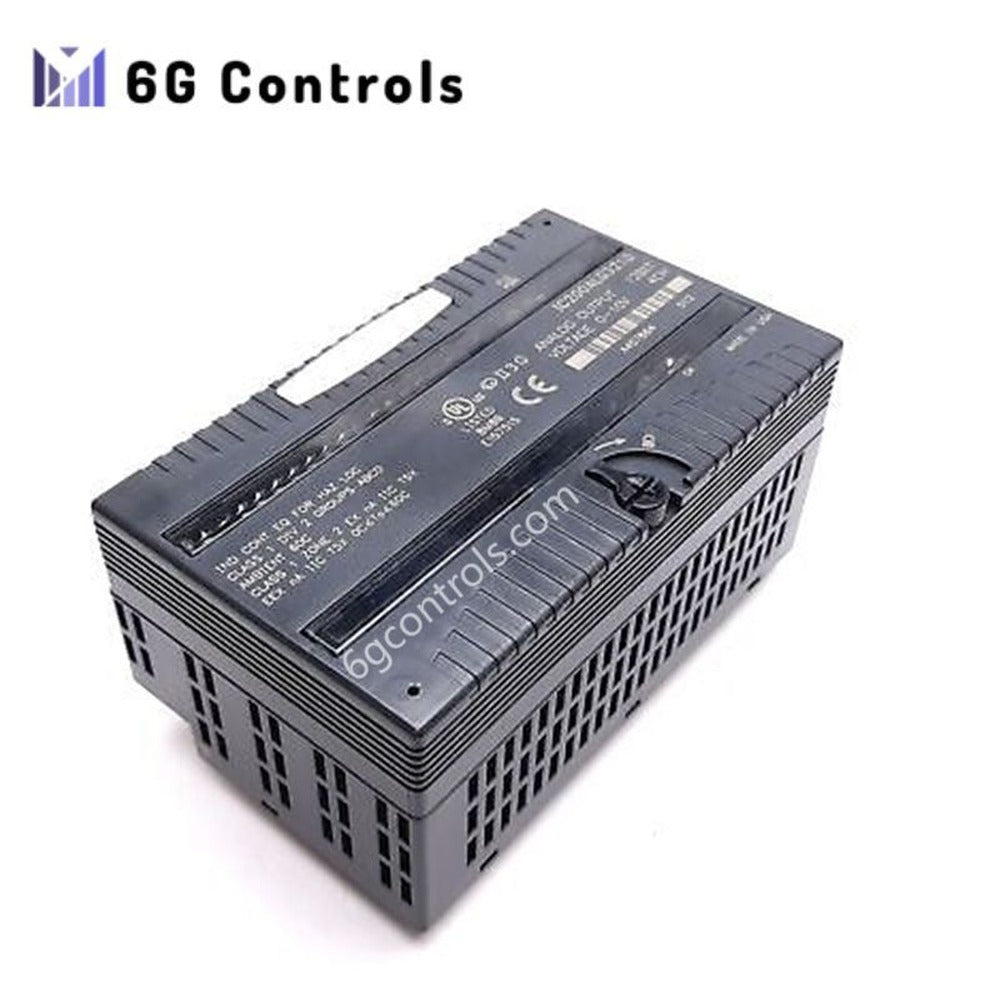

The IC200ALG321 is an analog output module for the GE Fanuc VersaMax PLC system. It provides precise control with four analog voltage output channels (0-10 VDC). This module is ideal for applications requiring accurate analog signal management.
Technical Specifications
- Module Type: Analog Output Module
- Series: VersaMax PLC
- Channels: 4 single-ended analog outputs
- Output Range: 0 to 10 VDC
- Resolution: 12-bit
- Update Rate: 0.3 ms per channel
- Power Supply: 5 VDC from backplane, external 24 VDC recommended
- Current Consumption: 50 mA (5 V), 125 mA (24 V)
- Operating Temperature: 0°C to 60°C
- Isolation: 1500 VAC between field and logic
- Mounting: DIN rail or panel
- Weight: 0.2 kg
