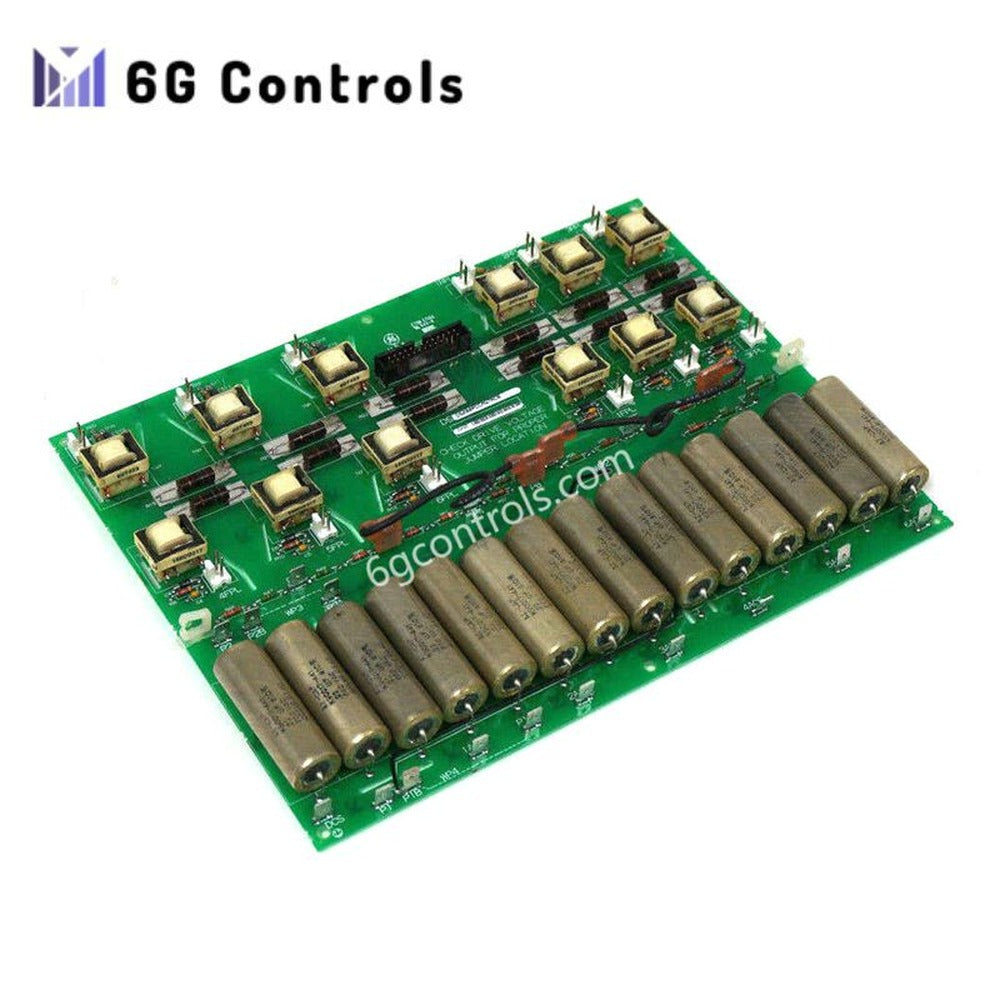

GE Fanuc DS200PCCAG7ACB Power Connect Card Brand New

The GE DS200PCCAG7ACB is a Power Connect Card in the Mark V Turbine Control System series. It interfaces the DC2000 drive with the SCR power bridge, ensuring efficient power conversion and system reliability.

Technical Specifications

• Model Number: DS200PCCAG7ACB

• Type: Power Connect Card

• Dimensions: 11 inches (W) x 8.5 inches (L)

• PCB Coating: Normal coating

• Voltage Compatibility: <600 V RMS AC

• Functional Abbreviation: PCCA

• Manufacturer: GE Industrial Control Systems

• Series: DC2000

• Functional Revisions: A (Revision 1), C (Revision 2)

• Artwork Revision: B

• Instruction Manual: GEI-100161

Key Features

• Supports AC and DC type snubbers for enhanced power conversion.

• Works with C or G frame power supply boards for flexible integration.

• Ensures SDCI compatibility for improved connectivity.

• Includes line fuses and reactors for system protection.

• Supports separate or common bus transformer configurations.

• Offers four adjustable hardware jumpers for system customization.
