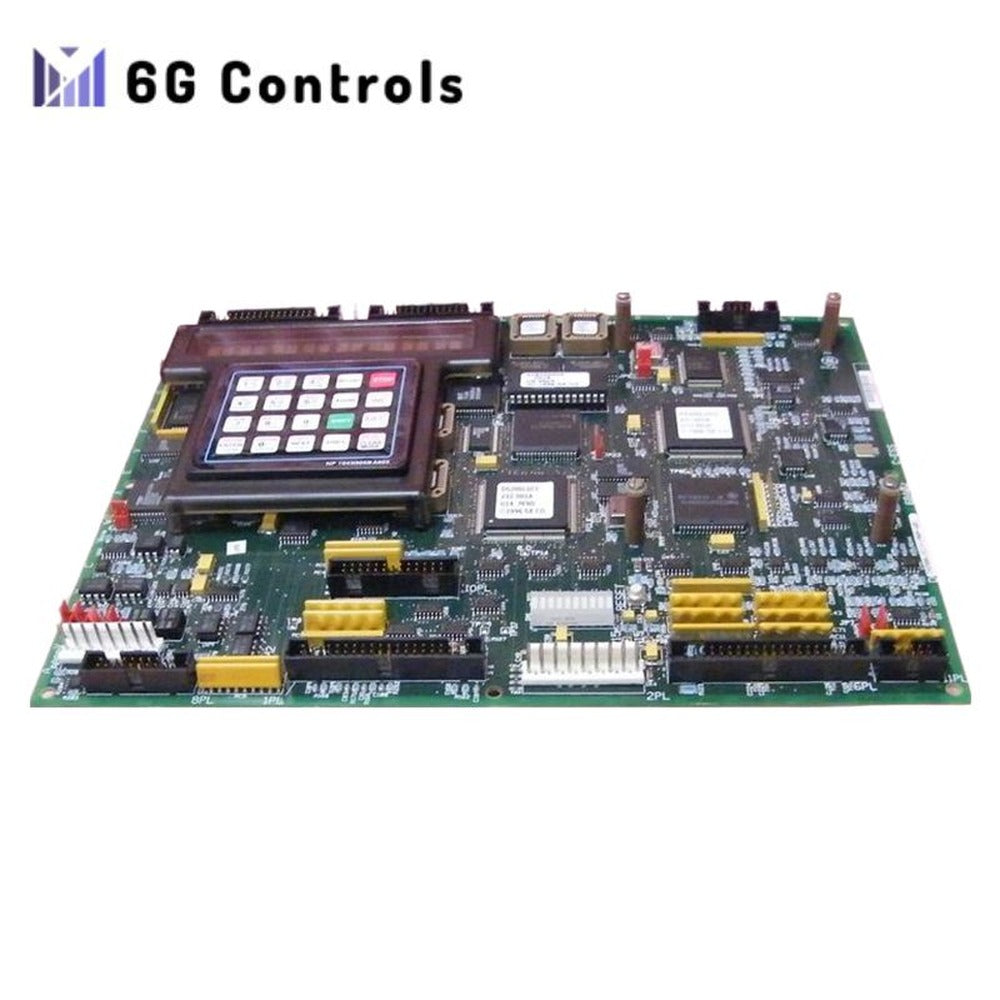

GE Fanuc DS200LDCCH1 LAN Control Card Drive Board In Stock

Overview

The DS200LDCCH1 is a LAN/Control communications board designed by GE for the Mark V series. This unit serves as a crucial component in drive control systems, specifically operating with GE’s DIRECTO-MATIC 2000 series exciters and drives. Its advanced microprocessors facilitate communication, processing, and operator interface tasks, making it integral to efficient drive operations. Despite being classified as obsolete, the DS200LDCCH1 utilizes GE’s patented Speedtronic control technology, showcasing its importance in legacy automation systems.

Technical Specifications of DS200LDCCH1

• Manufacturer: GE General Electric
• Series: Mark V
• Part Number: DS200LDCCH1
• Product Type: LAN/Control CD/CC Drive
• Instruction Manual: GEI-100216
• PCB Coating: Conformal Coating
• Assembly Type: Normal Assembly

Hardware Features

• Microprocessors:
  • Drive Control Processor (DCP): Manages integrated I/O peripherals like decoders and timers.
  • Motor Control Processor (MCP): Processes circuits for motor control and I/O communications.
  • Co-Motor Processor (CMP): Provides additional processing power when needed.
  • LAN Control Processor (LCP): Supports five bus systems for communication inputs.
• User Interface: Alphanumeric keypad for accessing system settings and diagnostics.

Memory Components

• Flash PROMs:
  • U6, U7, U11, U12, U22, U23 (configured at the factory with customizable options).
• EEPROM:
  • U9 (contains field-programmable parameters for customization).

Reset Trigger Methods

The DS200LDCCH1 supports four methods for triggering resets:

1. Pressing the RESET pushbutton.
2. Applying +5 to +24 V DC voltage to pin 30 on connector 6PL.
3. Using the drive terminal board.
4. Through programmed software control or internal hardware watchdog protection.

Environmental Protection

• The card ships with static-reducing protective plastic covering.
