Overview

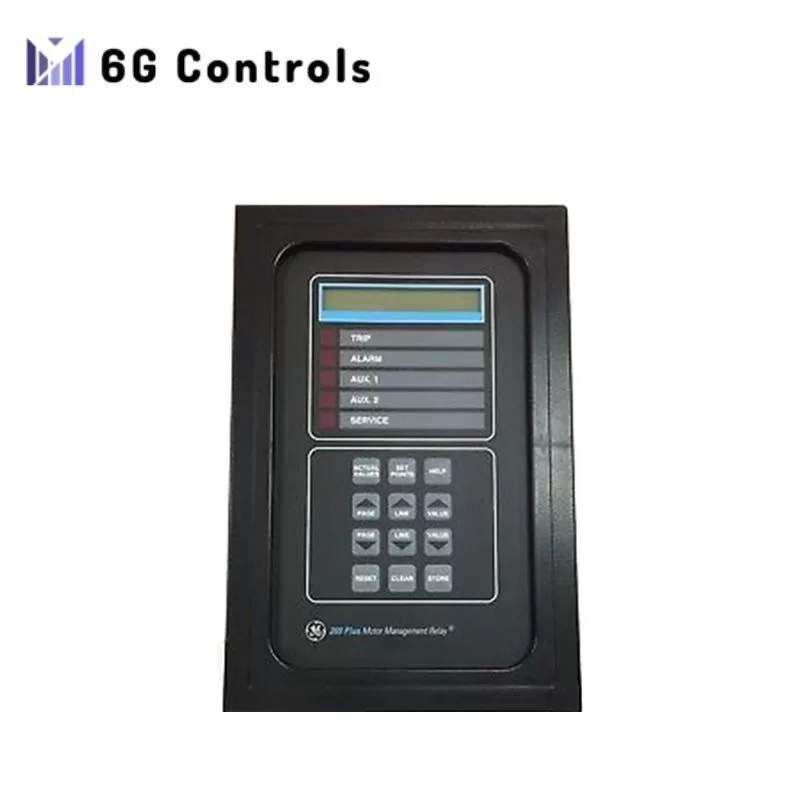

The 269PLUS-100P-HI is a motor management relay manufactured by GE Multilin. It features a 100 Ohm platinum RTD for temperature sensing. The relay is designed for monitoring and protecting medium-sized motors, ensuring both operational safety and efficiency.
Specifications
- Shipping Dimensions: 11.40″ (W) x 7.50″ (H) x 16.00″ (D)
- Shipping Weight: 7.75 lbs
- Ambient Temperature Range: -25°C to 60°C (storage and operation)
- Inputs:
- Meter communication port
- Spare input
- Differential relay input
- Speed switch input
- Programming access keyswitch
- External reset pushbutton
- Emergency restart keyswitch
- 6 stator RTDs, 4 additional RTDs
- Ground fault and phase CTs
- Universal AC/DC supply terminals
Motor Protection Features
- Overload Protection: Prevents motor overheating and protects from operator misuse.
- Shock Hazard Prevention: Safeguards personnel from electrical hazards.
- Mechanical Jam Detection: Protects equipment like pumps, fans, and compressors.
- Custom Overload Curves: Supports FlexCurve for unique rotor or stator damage protection.
Control Features
- Actual Values Mode: Displays real-time motor parameters with the press of a key.
- Setpoints Mode: Allows users to adjust trip, alarm, and relay setpoints for precise control.
Inputs/Outputs
- 12 Programmable RTDs: Provides flexible monitoring for motor protection.
- 5 Factory-Programmed Digital Inputs: Customizable for specific motor needs.
- Programmable Analog Input: Enhances adaptability for various applications.
- 4 Output Relays: Facilitates comprehensive control and monitoring.
