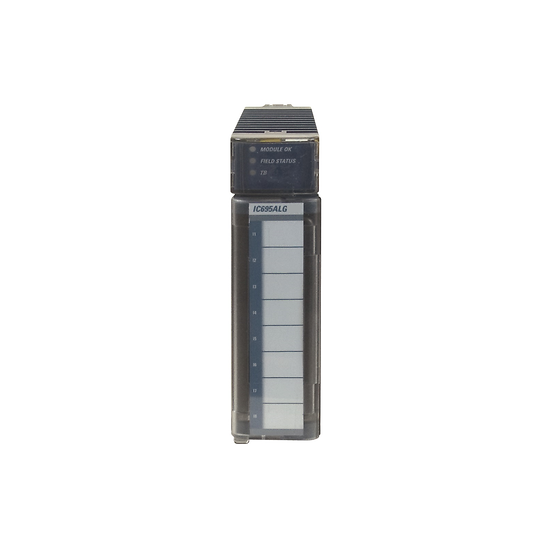

The GE Emerson IC695ALG808 PACSystems™ RX3i Analog Output module is equipped for current/voltage and is isolated with 8 channels. It serves a variety of ±10V, 0 to 10V, 0 to 20mA, and 4 to 20mA outputs, which are individually selectable per channel.
Specifications:
- Part Number: IC695ALG808
- Analog Output: 8 Channel; channels offer selectable outputs, such as +/-10V, 0 to 10V, 0 to 20mA, 4 to 20mA
- Resolution & Speed: 15 Bit for ±10V, 0 to 20mA & 4 to 20mA; 14 Bit for 0 to 10V. 8mS for all 8 Channels.
- Current Consumption: 250mA @ 3.3V, 17mA @ 5 VDC; 660mA with External 24 VDC Power
- Agency Approvals: UL, UL HAZLOC, CE EMC & LV Directives. Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
- Mounting: RX3i Rack; External 24VDC Required
Key Features:
- Advanced technology for faster throughput
- Hot swap capability for convenience
- Software-configurable without the need for module jumpers, enabling individual channel enabling or disabling
- Configurable options for Hold Last State or Output Defaults
- Channel-specific alarm detection and reporting including high, low, high-high, and low-low alarms
- Quick channel acquisition times based on filter frequency
