GE DS200TCQCG1BKG RST Overflow Board Original Package

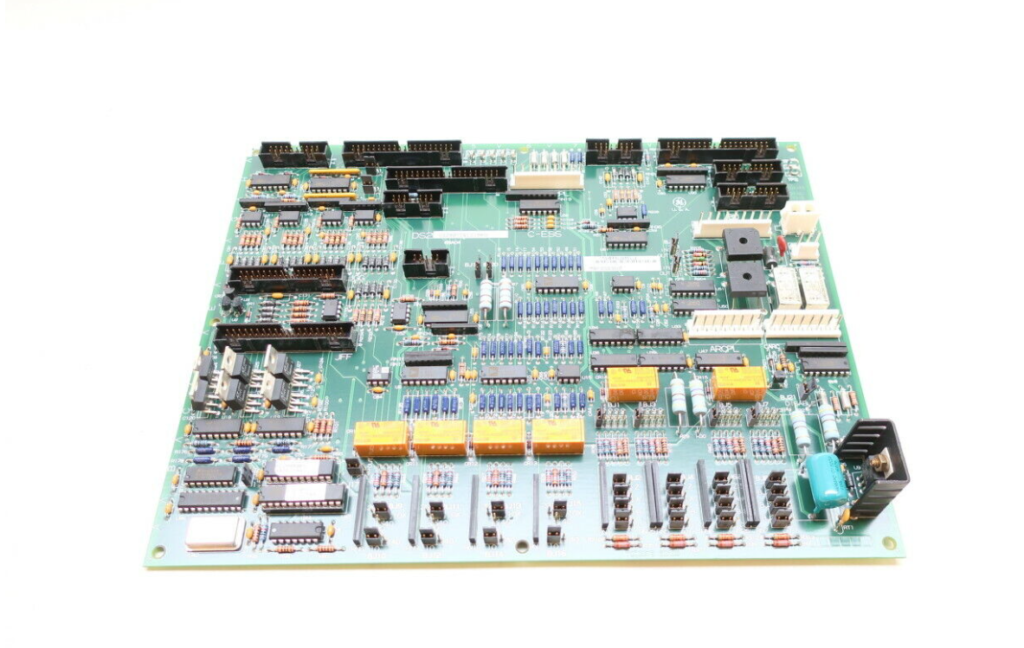

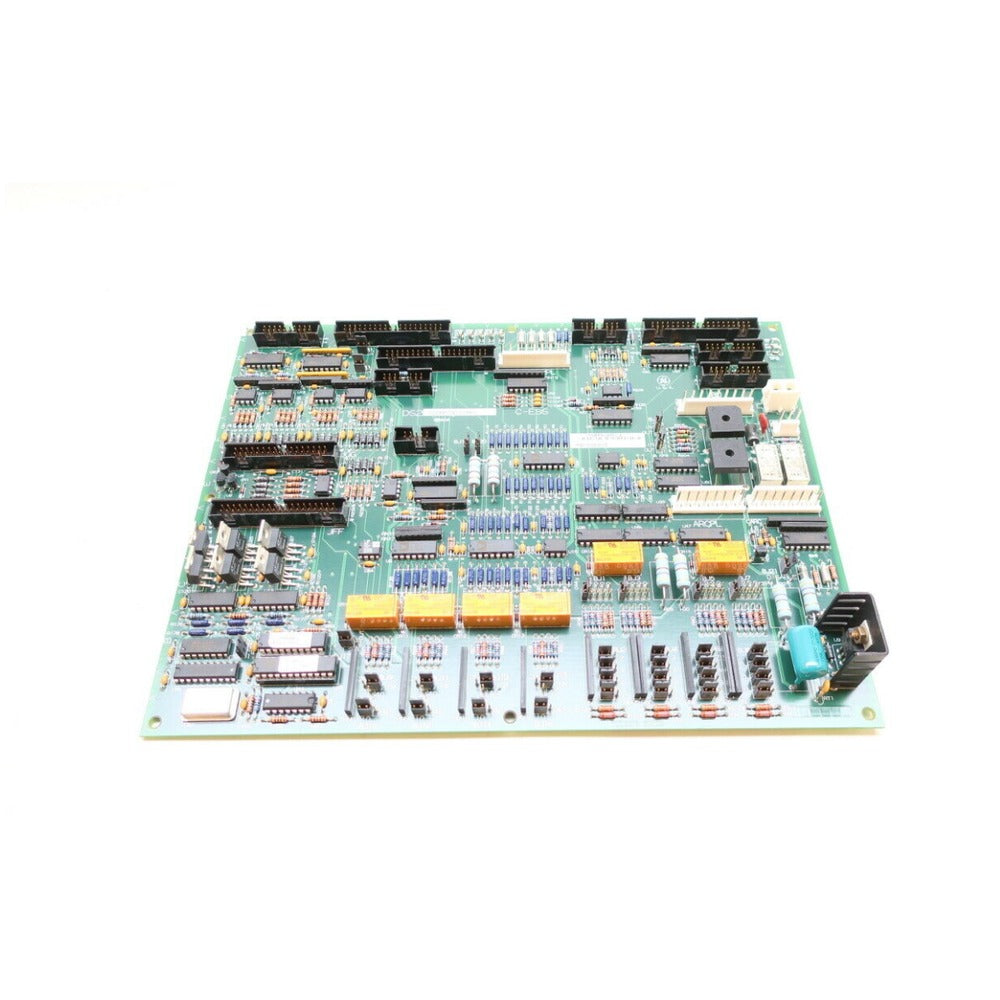

The GE RST Overflow Board DS200TCQCG1BKG houses 24 jumpers and 3 40-pin connectors. It also features 3 34-pin connectors and 1 16-pin connector labeled as JC. The 40-pin connectors carry IDs JFF, JE, and 6PL. Additionally, the GE RST Overflow Board DS200TCQCG1BKG incorporates heat sinks for dissipating heat. Before installing or removing the board, take into account the following information about the heat sinks. The heat sinks protrude from the board, requiring a minimum clearance of 3 inches between this board and others within the drive when placed closely together. This clearance ensures proper airflow for effective heat dissipation. Another critical consideration is that improper board arrangement may potentially damage other boards and components. Exercise care to prevent unintentional scratching of other boards or dislodging delicate components. Additionally, be cautious to prevent any contact between the board and other components that could displace the heat sinks.

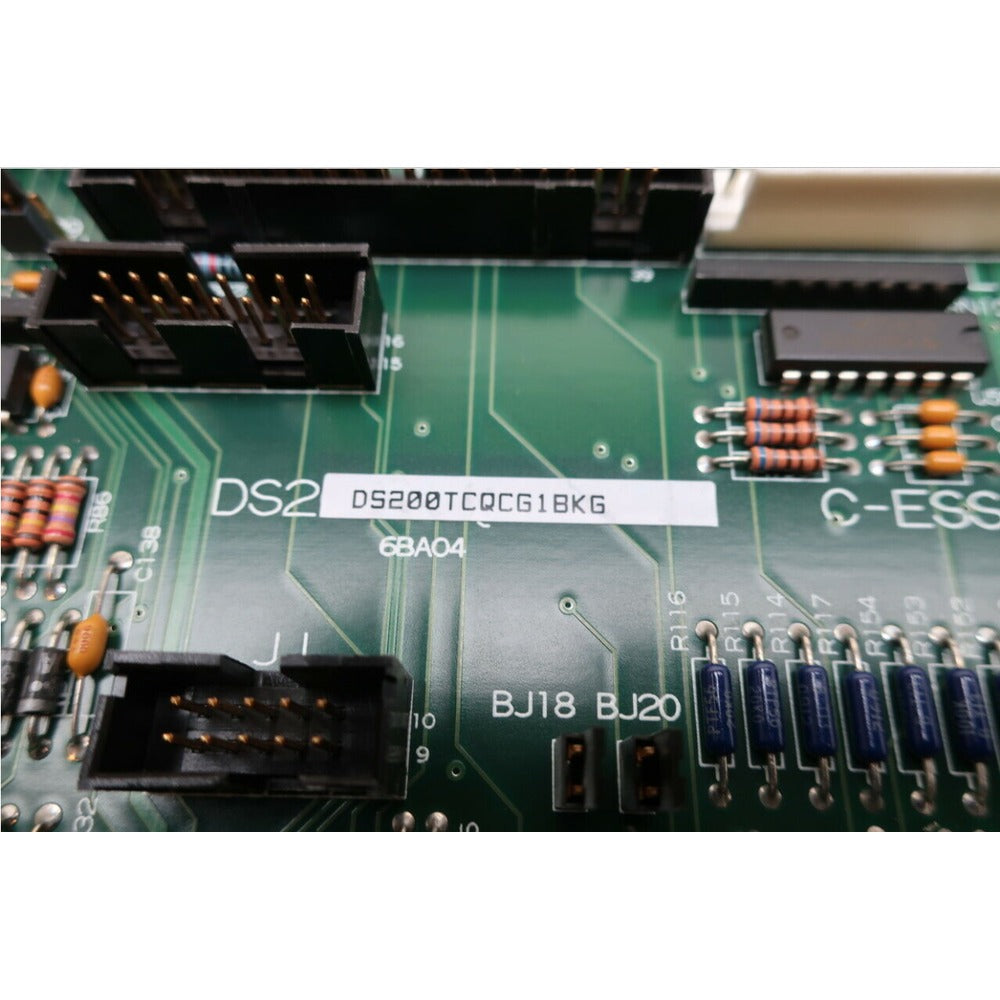

The jumpers bear IDs prefixed with BJ, such as BJ1, BJ5, and BJ24. The factory-supplied board instructions provide descriptions for each jumper, and the jumpers are identified by their respective jumper IDs. During the initial installation of the GE RST Overflow Board DS200TCQCG1BKG in the drive, the installer adjusts the jumpers to configure the board to meet the specific processing requirements of the site.
