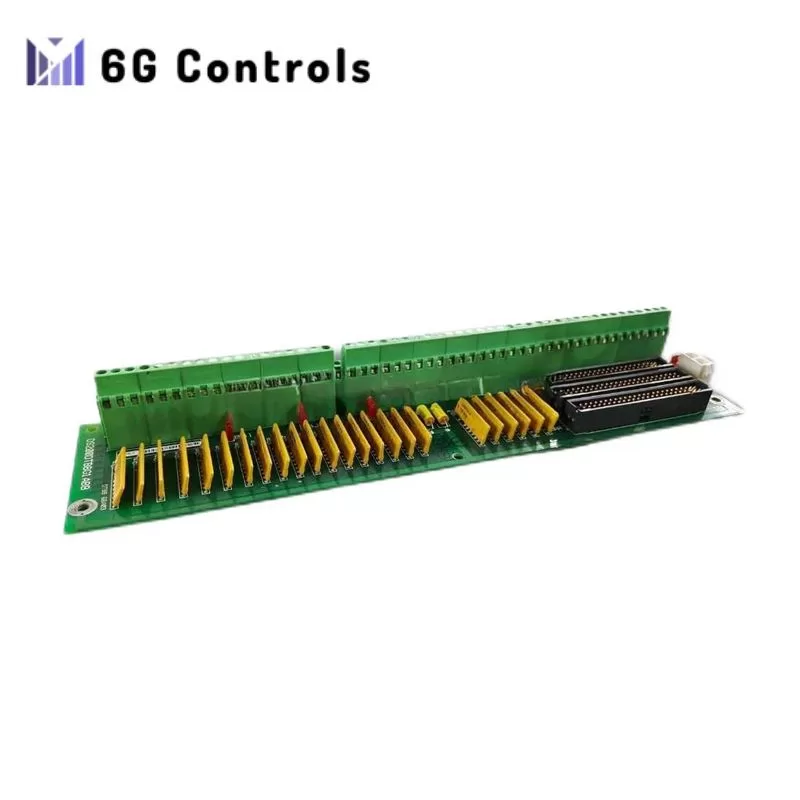

The DS200DTBDG1ABB is a specialized printed circuit board (PCB) essential to the legacy GE Mark V Turbine Control System Series. Designed for demanding wind, gas, and steam turbine environments, this PCB represents a final iteration of GE’s patented Speedtronic control technology. Known as the Contact Output Expansion Termination Module, it plays a critical role in enhancing system connectivity and reliability.
Type
- Specialized PCB for GE Mark V Turbine Control Systems
- Contact Output Expansion Termination Module
Features
- Expanded Connectivity: Increased contact output capacity compared to its predecessor, the DS200DTBDG1 module.
- Robust Construction: Built to withstand harsh conditions in turbine control systems.
- Seamless Integration: Compatible with other components within the Mark V ecosystem.
- Standard Hardware: Utilizes common Mark V Series components for reliability and maintainability.
Technical Specifications
- Connectors:
- JS1-JS8: TCRA Board Relay Signal Connectors
- J8: TCPD Board Solenoid Power Connector
- J19 and J20: Daisy-Chained Contact Outputs Power Connectors
- Components:
- Terminal Blocks: Two blocks with 107 terminals each
- Test Points: Multiple for easy diagnostics
- Jumpers: Two for configuration flexibility
- Connectors: Three 34-pin and three 40-pin connectors
- Voltage-Limiting Components: Standard Mark V Series rectifiers, diodes, capacitors
- Protective Coating: Ensures durability and performance in harsh environments
Installation Guidelines
- Preparation: Remove screws securing the PCB. Disconnect signal wires, ribbon cables, and other connections.
- Removal: Gently extract the PCB, avoiding contact with other components.
- Installation: Align the PCB accurately. Securely fasten it with screws. Reconnect cables, ensuring proper routing to avoid obstructing air vents.
- Caution: Handle components with care to prevent damage.
