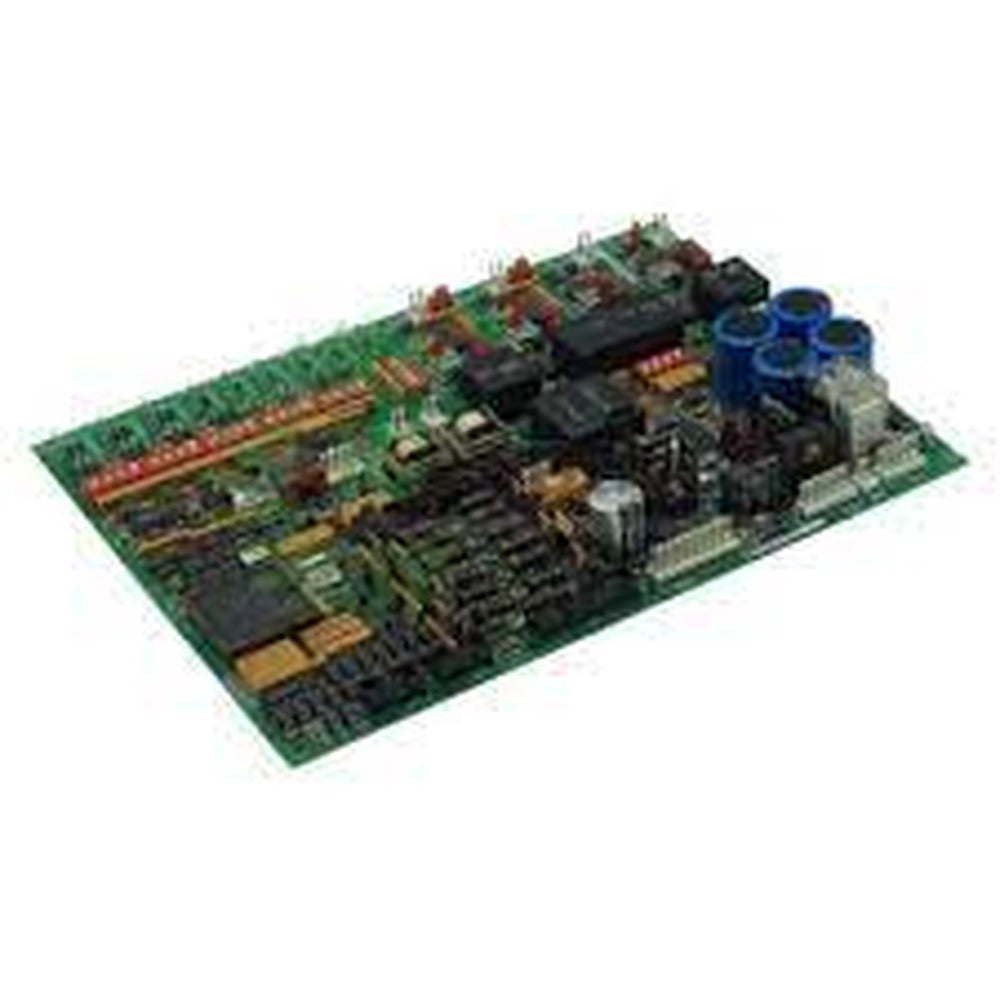

DS200DCFBG1B powers Mark V series machines like AC2000, CB2000, DC2000, FC2000, ME2000, EX2000. It offers control power and enclosure fan power directly from 38 to 115 VAC supplied via the control power transformer. The board has circuits for motor field power, driver, AC/DC monitoring, and control-level supply. Users can configure settings with twelve jumpers and seven DIP switches. LED and neon indicator lights show fuse switch diagnostics. Three protective fuses ensure power continuity, and five test points monitor voltages.
Follow manufacturer installation and storage guidelines for DS200DCFBG1B and the drive to prevent damage. Refer to the device’s manual and datasheet for wiring and installation instructions. Technical support for this board and the Mark V series was originally provided by General Electric.
Features:
- Power Supply: Provides control-level power to the drive and 115 VAC power to enclosure fans.
- Attenuation Circuit: Offers analog representation of motor voltage, biased at 2.5 volts, ranging from 0-5V based on motor voltage.
- Drive Applications: Used in DC2000, CB2000, EX2000, FC2000, GF2000, ME2000, and AC2000 drives. EX2000 serves a different purpose.
- Manual: Reference Manual GEI-100028, the Power Supply Board Manual specific to DS200DCFBG1B, for comprehensive guidance.
