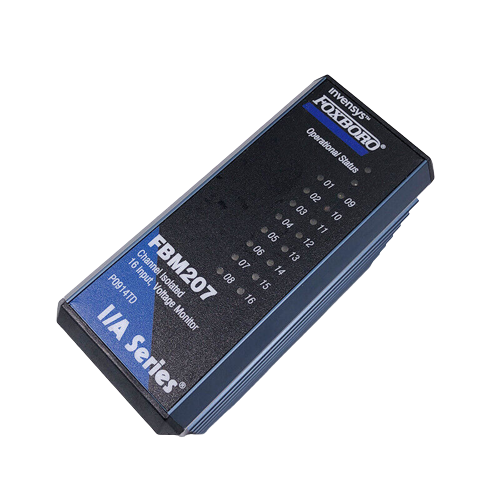

Foxboro FBM207 Channel Isolated 16 DIN Voltage Monitor

Overview:

The FBM207 Voltage Monitor functions as a 16-channel DC voltage monitor or 16-channel contact sensor. It accepts a 2-wire input from a DC voltage source (FBM207) or a pair of contacts or solid-state switches (FBM207b/FBM207c). Termination assemblies (TAs) support discrete input signals at various voltage levels, including 60 VDC, 120 VAC/125 VDC, or 240 VAC. The TAs also provide voltage attenuation and optical isolation for higher voltage inputs.

Features:

16 discrete inputs
Supports various voltage levels and contact inputs
Galvanically isolated channels
Suitable for use in Class G3 (harsh) environments
Performs signal conversion and executes various programs for different input types
Can be used as a single unit or in a redundant pair

Functional Specifications:

Communication: Communicates via the redundant 2 Mbps module Fieldbus with associated FCM or FCP.
Input: 16 isolated and independent channels.
Accuracy: No missing pulses for pulse rate 0 to 250 Hz.
Filter/Debounce Time: Configurable (No Filtering, 4, 8, 16, or 32 ms).
Voltage Monitor Function – Input:
- Logic One, On-State Voltage: 15 to 60 VDC
- Logic Zero, Off-State Voltage: 0 to 5 VDC
- Current: 1.4 mA (typical) at 5 to 60 VDC

Power Requirements:

Input Voltage Range (Redundant): 24 VDC +5%, -10%
Consumption (Maximum): Varies depending on the module type (FBM207, FBM207b, FBM207c)

Regulatory Compliance:

Electromagnetic Compatibility (EMC): Compliant with various standards.
Product Safety: UL/UL-C listed for suitable use in different environments.

Operating Conditions:

Temperature: -20 to +70°C (-4 to +158°F)

Physical Specifications:

Mounting: Modular baseplate with options for DIN rail or 19-inch rack mounting.
Weight: Varies depending on the termination assembly type.
Dimensions: Varies depending on the module and termination assembly type.

For more information, please read online or download the PDF: FBM207-b-c-Voltage-Monitor
