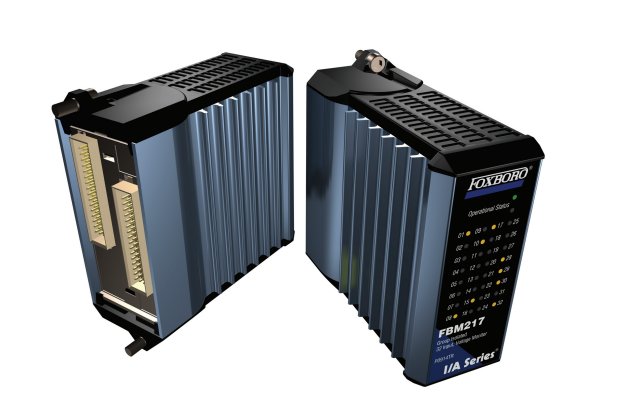

The FOXBORO FBM217 P0916CA Discrete Input Interface Module provides 32 dc voltage input channels.
FEATURES
Key features of the FBM217 include:
- Thirty-Two (32) discrete inputs
- Supports discrete input signals at voltages of:
- 15 to 60 V dc
- 120 V ac/125 V dc
- 240 V ac
- Single or redundant modules
- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
- Executes the programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events, with the configurable options: Input Filter Time and Fail-Safe Configuration
- Various Termination Assemblies (TAs) that contain:
- High voltage attenuation and optical isolation for inputs
- External power connection for device excitation.
OVERVIEW
The FOXBORO FBM217 P0916CA Discrete Input Interface Module provides 32 input channels, each accepting a 2-wire input from a dc voltage source. Associated termination assemblies (TAs) provide for discrete inputs of under 60 V ac, 120 V ac/125 V dc or 240 V ac. The module performs signal conversion required to interface the electrical input signals from the field sensors to the Module Fieldbus.
Depending on the type of I/O signal required, the TAs contain current limiting devices, high voltage attenuation circuits, optical isolation and external power source connections.
The module with its associated TA supports the following discrete inputs:
The module can be used as a single unit, or as a redundant pair (two FBM217s). When used as a redundant pair, the modules combine to provide redundancy at the Fieldbus Module (FBM) level, with field input signals received from one common termination assembly though a redundant adapter affixed to the FBMs’ baseplate. The field input current for redundant modules is doubled. A redundant digital input block in the control software validates each input in conjunction with information to/from the module, and selects the input with the highest quality for processing in the control strategy.
For more Product Specifications, please read the PDF document online: FBM217
