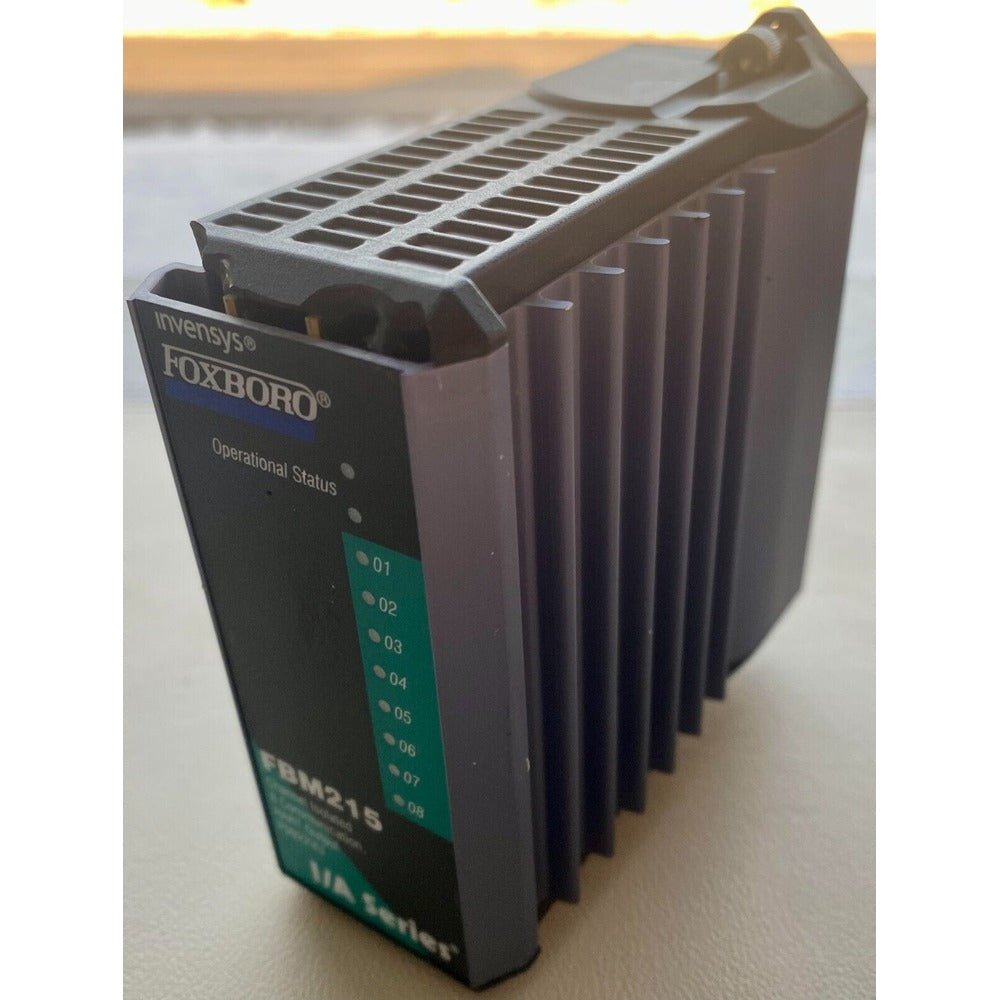

The FBM215 HART® Communication Output Interface Module offers eight output channels, each capable of providing a 4 to 20mA output signal or a digital HART signal superimposed on a 4 to 20 mA analog output signal.
Features:
- Eight channel-isolated output channels, each offering one of the following outputs:
- Standard 4 to 20 mA analog output signal
- Digital HART Frequency Shift Keying (FSK) signal superimposed on a 4 to 20 mA analog output signal.
- Dedicated FSK modem for each output channel, enabling bi-directional digital communications with a HART field device.
- Galvanic isolation of all output channels from each other, as well as from ground and module logic.
- Support for HART universal commands necessary to interface the field device with the I/A Series® system database.
- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments.
- Termination Assemblies (TAs) available for local or remote connection of field wiring to the FBM215.
SPECIFICATIONS:
General | |
Manufacturers | Schneider Electric / Invensys / Foxboro |
Model | FBM215 |
Condition | Used and in Excellent Condition |
Product Family | I/A, I/A Series, P0400YE, FBM04, FBM 04, P0400YD, FBM03, FBM 03, P0400ZG, P0500RY |
For more information, please refer to the PDF:Invensys_Foxboro_FMB215_Manual
