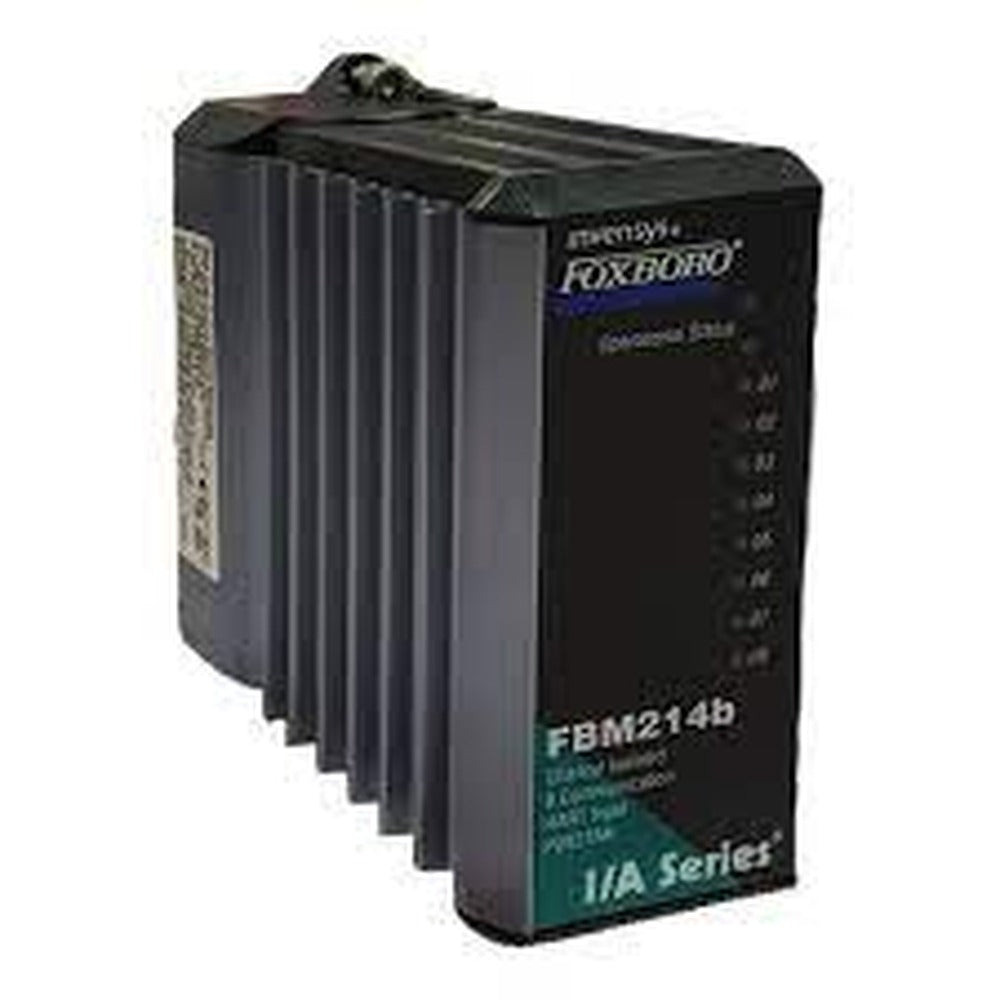

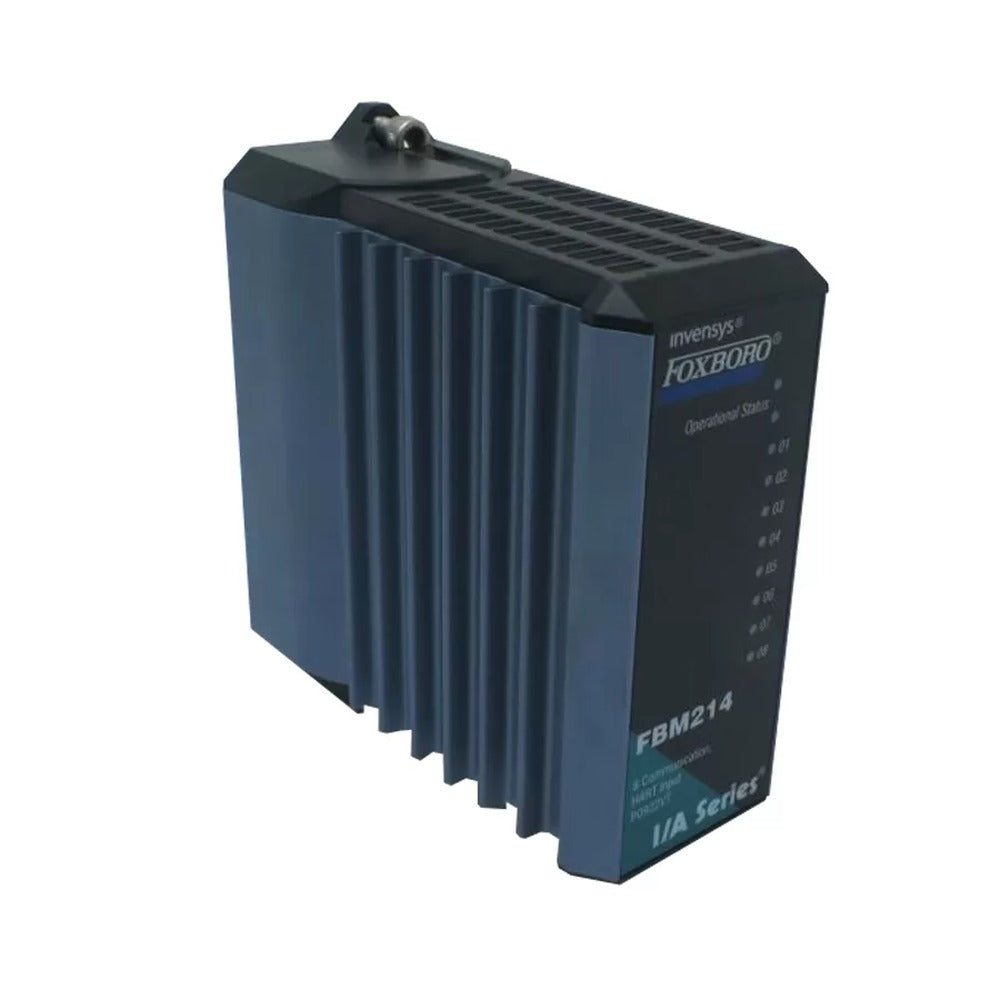

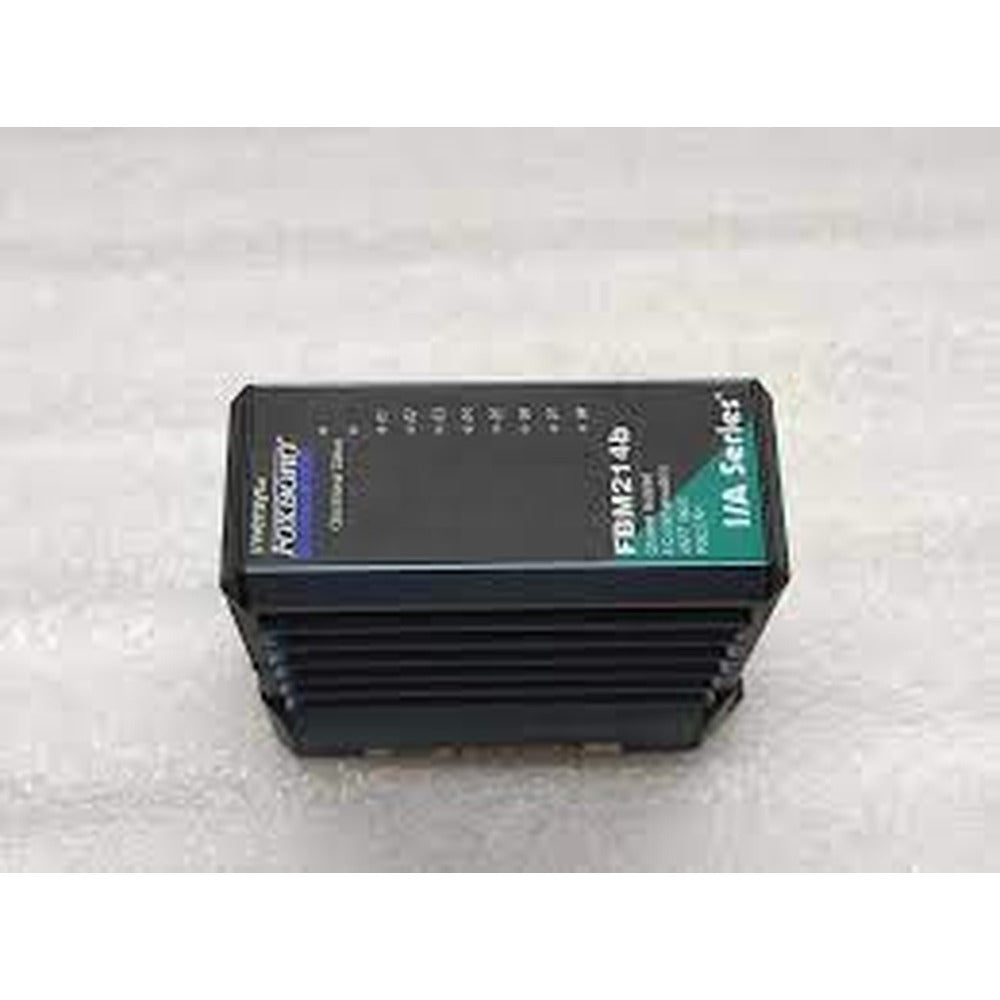

The FBM214 P0922VT HART® Communication Input Interface Module offers eight input channels, each capable of accepting a 4 to 20mA analog signal or a digital HART signal superimposed on a 4 to 20 mA analog input signal.
Features:
- Eight analog input channels, accommodating the following inputs:
- Standard 4 to 20 mA analog sensor signal
- Digital HART Frequency Shift Keying (FSK) signal superimposed on a 4 to 20 mA analog input signal.
- Each input channel is equipped with an FSK modem dedicated to bi-directional digital communications with a HART field device.
- Analog to digital conversion of each 4 to 20 mA input signal from HART devices.
- Support for the HART universal commands necessary for interfacing the field device with the I/A Series® system database.
- Galvanic isolation of the group of 8 input channels from ground and module logic.
- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments.
- High accuracy achieved through sigma-delta data conversions for each channel.
- Termination Assemblies (TAs) available for local or remote connection of field wiring to the FBM214 P0922VT.
- Termination Assemblies designed for per-channel internal and/or external loop-powered transmitters.
For more information, please refer to the PDF：Foxboro FBM214 P0922VT HART® Communication Input Interface Module
