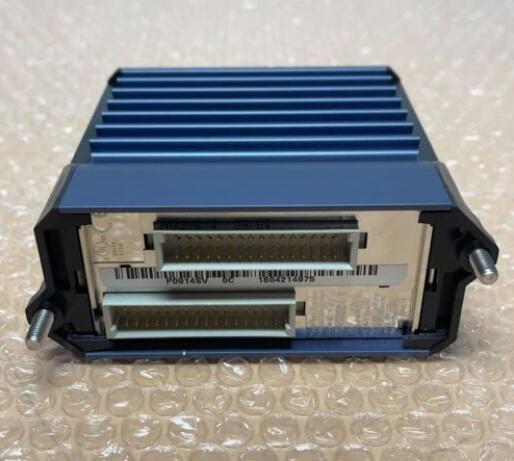

The Foxboro FBM203 P0914SV is an 8-channel isolated RTD input module designed for precise temperature measurements. It offers galvanic isolation between each channel and ground, ensuring accurate readings. This module is compatible with both 2- and 3-wire RTD sensors, with various resistance ranges available: 0 to 320 ohms (FBM203), 0 to 640 ohms (FBM203b), or 0 to 30 ohms (FBM203c).
Key Features:
- 8 isolated input channels
- Supports 2- or 3-wire RTD sensor input
- Wide resistance range options: 0 to 320 ohms (FBM203), 0 to 640 ohms (FBM203b), or 0 to 30 ohms (FBM203c)
- Galvanic isolation between channels and ground
- Optional redundant fieldbus for added reliability
- Includes an Analog input application program with configurable conversion time and Rate of Change Limits
Technical Specifications:
- Dimensions: 110 x 50 x 120 mm (4.33 x 1.97 x 4.72 in)
- Weight: 0.3 kg (0.66 lb)
- Operating Voltage: 24 VDC
- Current: 100 mA
- Temperature Range: -40 to 85°C (-40 to 185°F)
