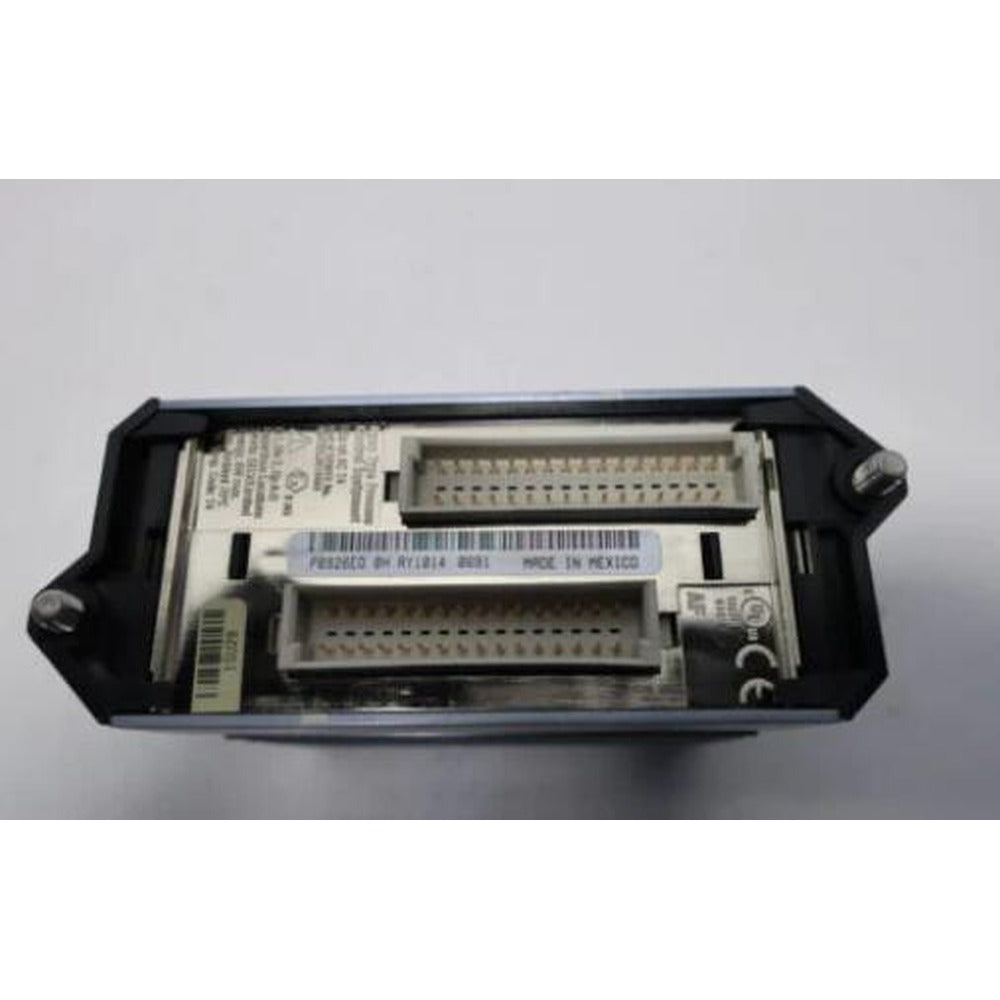

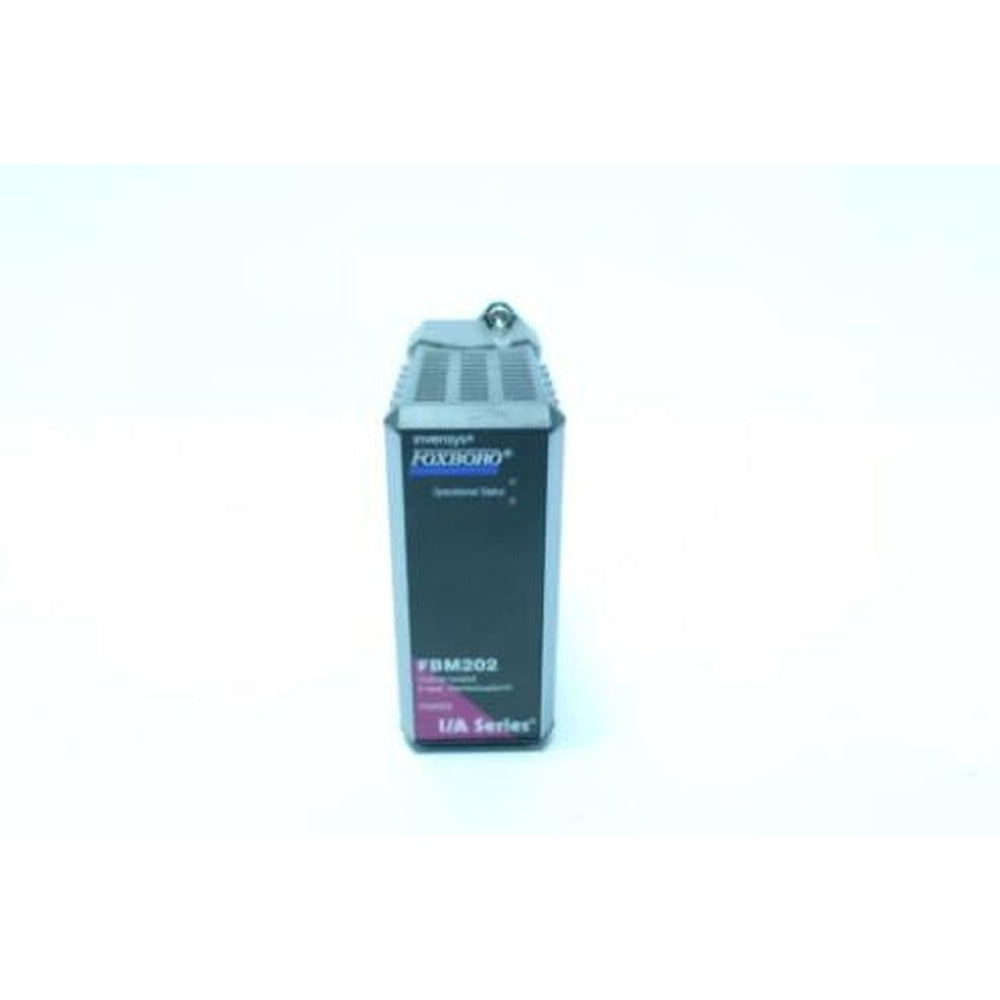

Foxboro FBM202 P0926EQ Channel Isolated 8 Input Thermocouple/mV

Brand: Foxboro

Model Number: FBM202 P0926EQ

Part Number: P0926EQ

Type: Channel isolated, 8 input, thermocouple/mV input interface module

Product Origin: United States

Payment: T/T, Western Union

Dimensions: 9.000″ x 6.000″ x 4.000″

Weight: 2.0000 lbs

Certificate: UL, CSA

Warranty: 1 year

  • Product Details
  • Inquiry

Overview

The FBM202 P0926EQ is a channel isolated, 8 input, thermocouple/mV input interface module that provides galvanically isolated analog input for thermocouples and mV signals. It is designed for use in industrial automation applications where it is necessary to measure and monitor temperature or other analog signals.

Features

  • 8 thermocouple input channels
  • 1 isolated RTD reference junction compensation channel
  • Accepts standard thermocouples for various temperature ranges
  • Thermocouple burnout detection (up-scale)
  • Galvanically isolated inputs
  • Signal conversion to Fieldbus
  • Analog Input application program with configurable integration time and Rate of Change Limits

Technical Specifications

  • Input voltage range: -10 to +10 VDC
  • Input current range: 0 to 20 mA
  • Thermocouple types supported: J, K, T, E, N, S, R, B, and C
  • RTD resistance range: 0 to 100 ohm
  • Burnout detection: Up-scale
  • Isolation voltage: 1500 VDC
  • Signal conversion: 16-bit ADC
  • Fieldbus: Foundation Fieldbus (FF) or PROFIBUS PA
