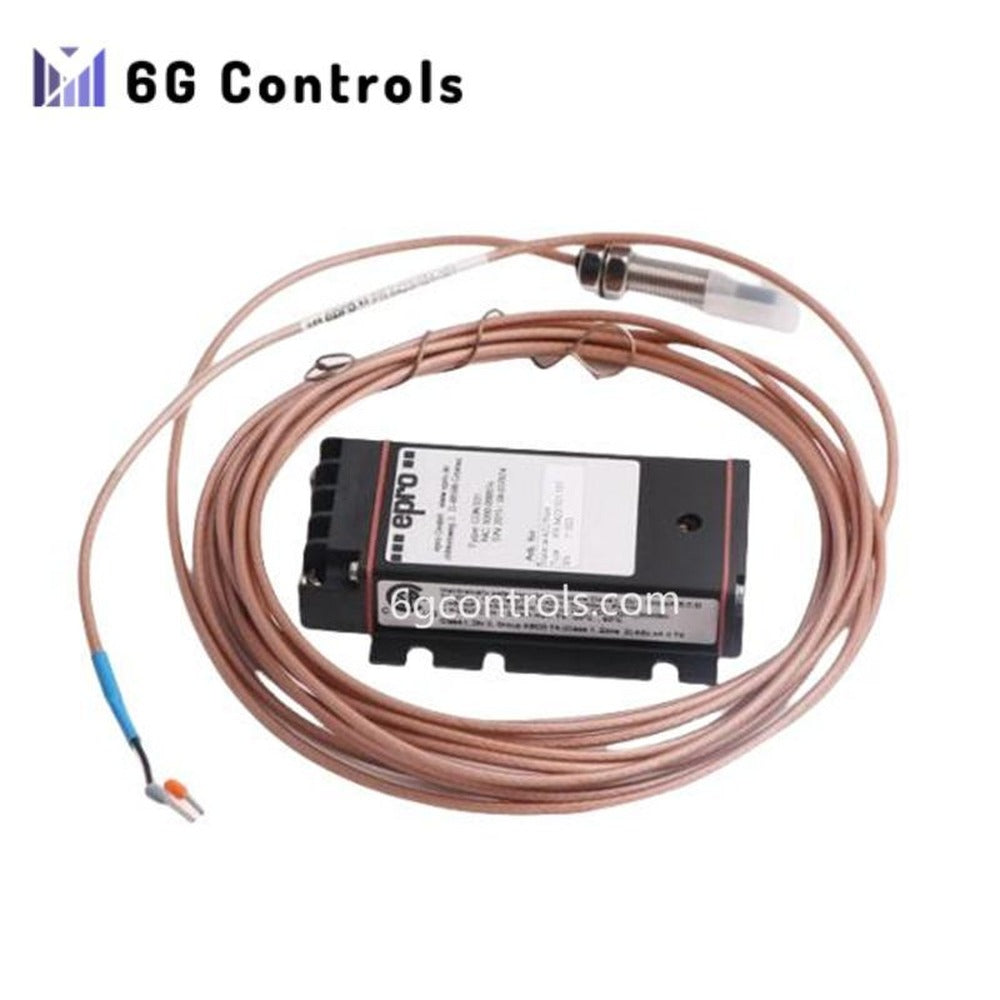

EPRO PR6423/000-101 Eddy Current Displacement Sensor

Overview

The EPRO PR6423/000-101 is an advanced eddy current displacement sensor designed for precision measurements in critical turbomachinery. It monitors radial and axial shaft displacement, eccentricity, and vibration, making it suitable for turbines, compressors, and pumps. The sensor’s non-contact measurement principle ensures reliable and accurate data, even in harsh industrial environments.

Technical Specifications

• Measurement Principle: Eddy current-based, non-contact measurement.

• Linear Measurement Range: ±2 mm (static).

• Sensitivity: 8 V/mm (203.2 mV/mil).

• Nominal Air Gap: 0.5 mm (20 mils).

• Frequency Response: Up to 20,000 Hz.

• Operating Temperature: -35°C to +180°C (-31°F to +356°F).

• Material: Stainless steel housing with PEEK sensor tip.

• Protection Class: IP66.

• Certifications: ATEX, IECEx, CSA (for hazardous areas).

• Sensor Diameter: 8 mm.

• Thread Type: M10 threads or 3/8-24UNF threads.

• Cable Diameter: Standard 2.8 mm.

• Cable Length: Varies by configuration.
