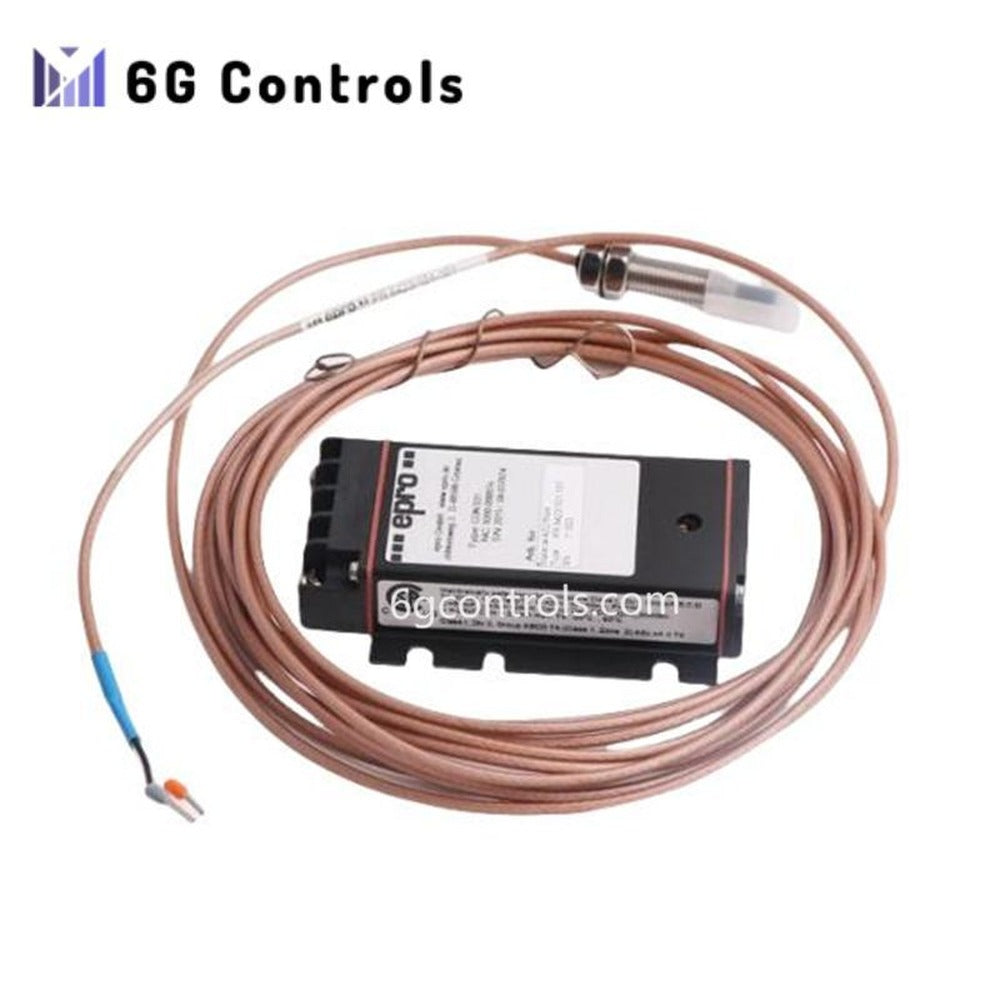

EPRO CON031+PR6423/000-101 Eddy Current Sensor

Overview

The EPRO CON031 and PR6423/000-101 combine an Eddy Current Signal Converter and an Eddy Current Displacement Sensor. This system measures radial and axial shaft displacement, position, eccentricity, and vibration in critical turbomachinery like turbines, compressors, and pumps.

CON031 (Signal Converter) Specifications

• Frequency Range: 0 to 20,000 Hz.

• Rise Time: <15 μs.

• Operating Temperature: -30°C to +100°C (-22°F to +212°F).

• Power Supply: -23V to -32V DC.

• Output Voltage Range: -4V to -20V or -2V to -18V.

• Protection Class: IP20.

• Certifications: ATEX, IECEx, CSA for hazardous areas.

PR6423/000-101 (Displacement Sensor) Specifications

• Measurement Range: ±2 mm (static).

• Sensitivity: 8 V/mm (203.2 mV/mil).

• Nominal Air Gap: 0.5 mm (20 mils).

• Frequency Response: Up to 20,000 Hz.

• Operating Temperature: -35°C to +180°C (-31°F to +356°F).

• Material: Stainless steel housing with PEEK sensor tip.

• Protection Class: IP66.

• Certifications: ATEX, IECEx, CSA for hazardous areas.
