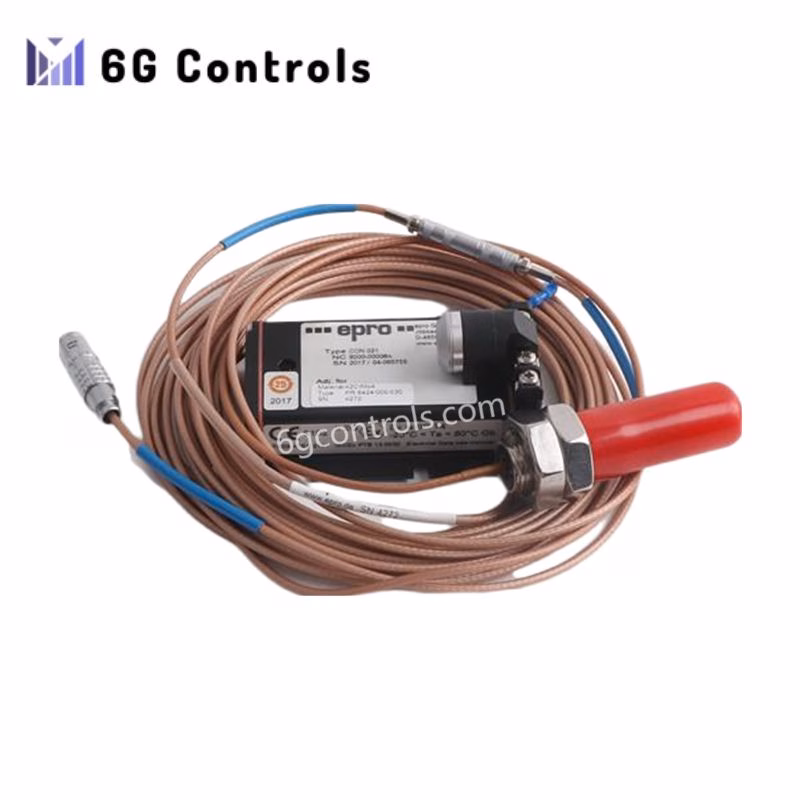

EPRO CON021+PR6424/000-030 Eddy Current Sensor

Overview

The EPRO CON021 and PR6424/000-030 form a combined system for precise displacement measurement. This solution is ideal for critical turbomachinery applications such as turbines, compressors, and pumps.

CON021 Signal Converter

• Frequency Range: 0 to 20,000 Hz.

• Rise Time: <15 μs.

• Operating Temperature: -30°C to +100°C (-22°F to +212°F).

• Power Supply: -23V to -32V DC.

• Output Voltage Range: -4V to -20V or -2V to -18V.

• Protection Class: IP20.

• Certifications: ATEX, IECEx, CSA for hazardous areas.

PR6424/000-030 Displacement Sensor

• Measurement Range: ±2 mm (static).

• Sensitivity: 4 V/mm (101.6 mV/mil).

• Nominal Air Gap: Approx. 2.7 mm (0.11 inches).

• Frequency Response: Up to 20,000 Hz.

• Operating Temperature: -35°C to +150°C (-31°F to +302°F).

• Material: Stainless steel housing with PTFE cable.

• Protection Class: IP66.

• Certifications: ATEX, IECEx, CSA for hazardous areas.
