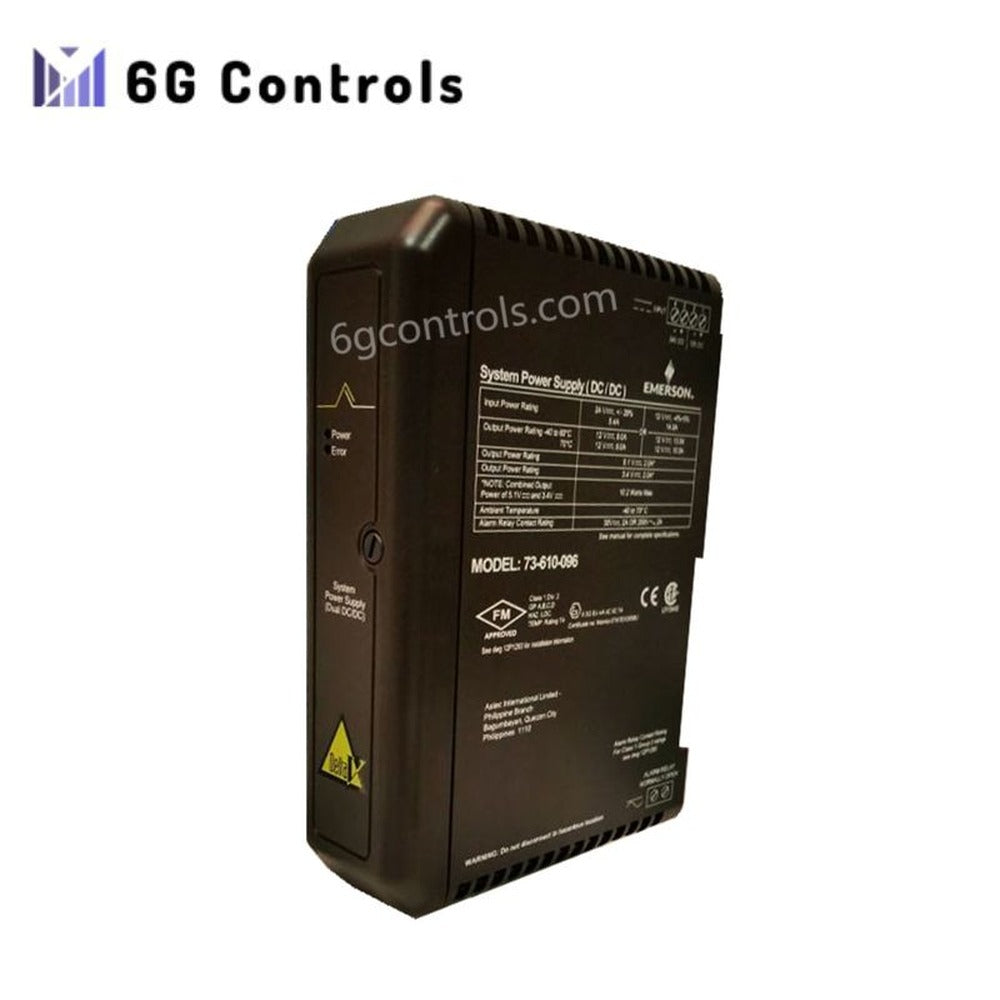

Emerson VE5009 KJ1501X1-BC3 System Dual DC Power Supply

Overview

The Emerson VE5009 KJ1501X1-BC3 is a dual DC power supply module designed for the DeltaV Distributed Control System (DCS). It provides stable, reliable power to system electronics and field devices, ensuring continuous operation in demanding industrial environments.

Technical Specifications

• Model Number: VE5009 KJ1501X1-BC3
• Manufacturer: Emerson
• Type: Dual DC Power Supply Module
• Input Voltage:
  • 12 VDC at 14.8 A
  • 24 VDC at 6.1 A
• Output Voltage:
  • 12 VDC at 13 A (from 12 VDC input)
  • 12 VDC at 8 A (from 24 VDC input)
  • 5.1 VDC at 2.0 A
  • 3.4 VDC at 2.0 A
• Output Power:
  • 10.2 W (total from +5.1 VDC and +3.4 VDC)

Environmental Specifications

• Operating Temperature Range: -40°C to +70°C
• Shock: 10g 1/2 Sinewave for 11 ms
• Vibration:
  • 1 mm Peak to Peak from 2 to 13.2 Hz
  • 0.7g from 13.2 to 150 Hz
• Airborne Contaminants: ISA-S71.04 –1985 Class G3
• Relative Humidity: 5% to 95% Non-Condensing
