Technical Specifications
Power Specifications
- Field Power: 30 VDC at 200 mA
Environmental Specifications
- Ambient Temperature: -40°C to +70°C
- Shock: 10g ½ sine wave for 11 milliseconds
- Vibration:
- 1 mm peak-to-peak from 2 to 13.2 Hz
- 0.7g from 13.2 to 150 Hz
- Airborne Contaminants: ISA-S71.04-1985 Airborne Contaminants Class G3
- Relative Humidity: 5% to 95% non-condensing

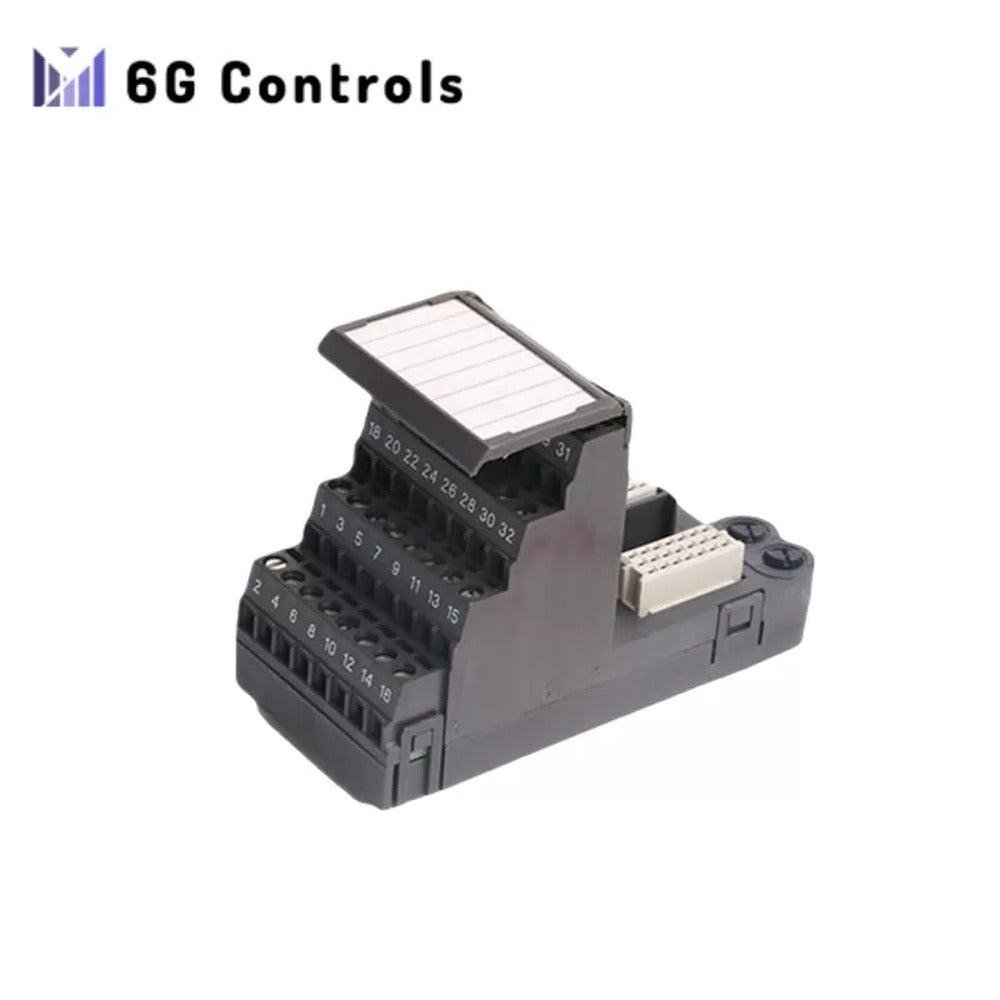

Terminal Block Key Position
- Set According to I/O Card Installed: The key position must be set to match the I/O card.
- Removal and Insertion:
- The terminal block can be added or removed with system power applied only if no I/O card is installed and no field wiring is connected to the terminal.
- A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation. The keys on the terminal block must be set to match the I/O card it will be used with.
Maintenance and Adjustment
- User Serviceability: This unit contains no user-serviceable parts and should not be disassembled for any reason.
- Calibration: Calibration is not required.
