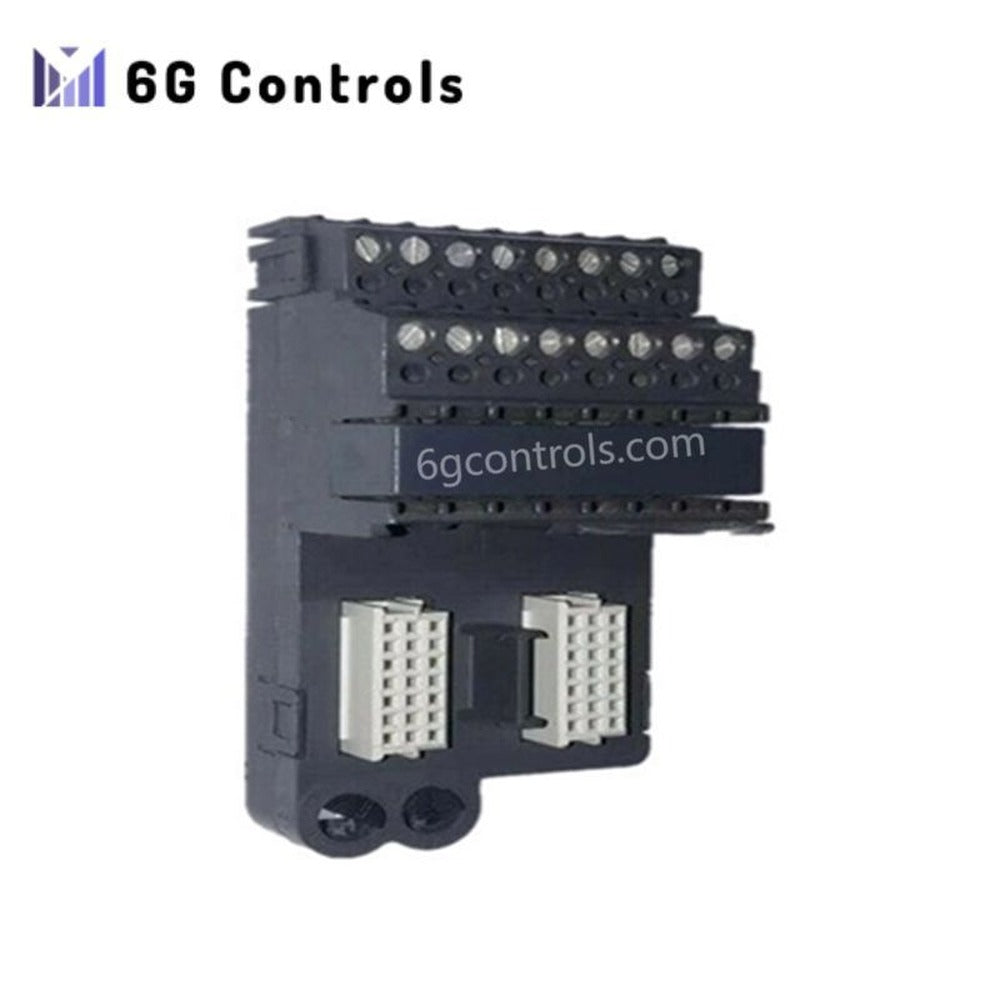

Emerson KJ4001X1-CF1 24-Pin Mass Terminal Block Brand New

Overview

The Emerson KJ4001X1-CF1 is a 24-pin mass terminal block, designed for use with the DeltaV Distributed Control System (DCS). It ensures reliable connectivity for industrial automation applications in demanding environments.

Technical Specifications

• Model Number: KJ4001X1-CF1
• Manufacturer: Emerson
• Type: Mass Terminal Block
• Number of Pins: 24
• Input Voltage: 30 VDC
• Current Rating: 1 A

Environmental Specifications

• Operating Temperature Range: -40°C to +70°C
• Shock Resistance: 10 g half-sine wave for 11 ms
• Vibration Resistance:
  • 1 mm peak-to-peak from 2 to 13.2 Hz
  • 0.7 g from 13.2 to 150 Hz
• Airborne Contaminants: ISA-S71.04-1985, Class G3
• Relative Humidity: 5% to 95% non-condensing

Power Specifications

• Input Power Rating: 30 VDC at 1 A per cable
