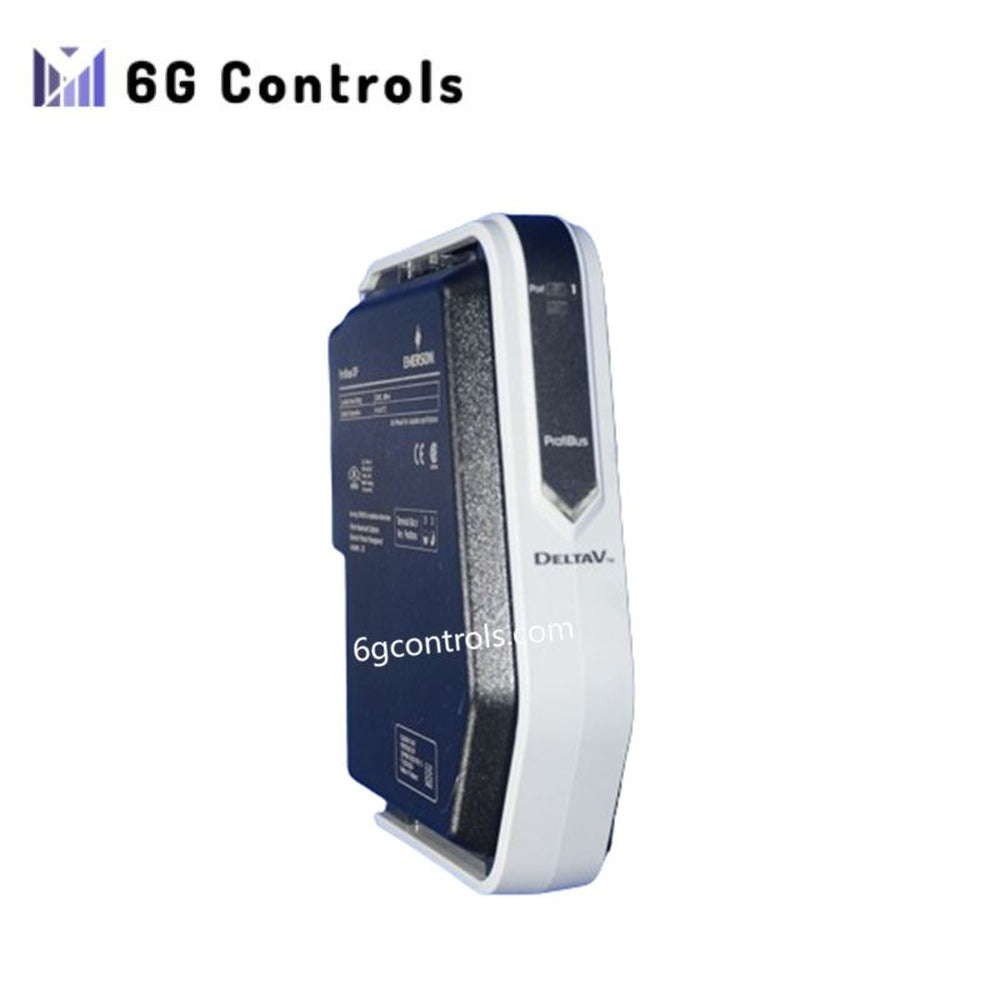

Emerson KJ3243X1-BK1 S-Series Profibus DP Interface Card

Overview

The Emerson KJ3243X1-BK1 is a Profibus DP Interface Card used in the DeltaV Distributed Control System (DCS). It ensures reliable communication between field devices and the control system, offering stable operation in hazardous environments.

Technical Specifications

• Model Number: KJ3243X1-BK1
• Manufacturer: Emerson
• Type: Profibus DP Interface Card
• Input Voltage: 12 VDC
• Local Bus Power: 12 VDC at 600 mA
• Operating Temperature Range: -40°C to +70°C
• Shock: 10g 1/2 Sinewave for 11 ms
• Vibration: 1 mm Peak to Peak (2 to 13.2 Hz); 0.7g (13.2 to 150 Hz)

Power Specifications

• Local Bus Power: 12 VDC at 600 mA

Environmental Specifications

• Ambient Temperature: -40°C to +70°C
• Shock: 10g ½ Sinewave for 11 ms
• Vibration: 1 mm Peak to Peak (2 to 13.2 Hz); 0.7g (13.2 to 150 Hz)
• Airborne Contaminants: ISA-S71.04 – 1985 Airborne Contaminants Class G3
• Relative Humidity: 5 to 95% Non-Condensing
