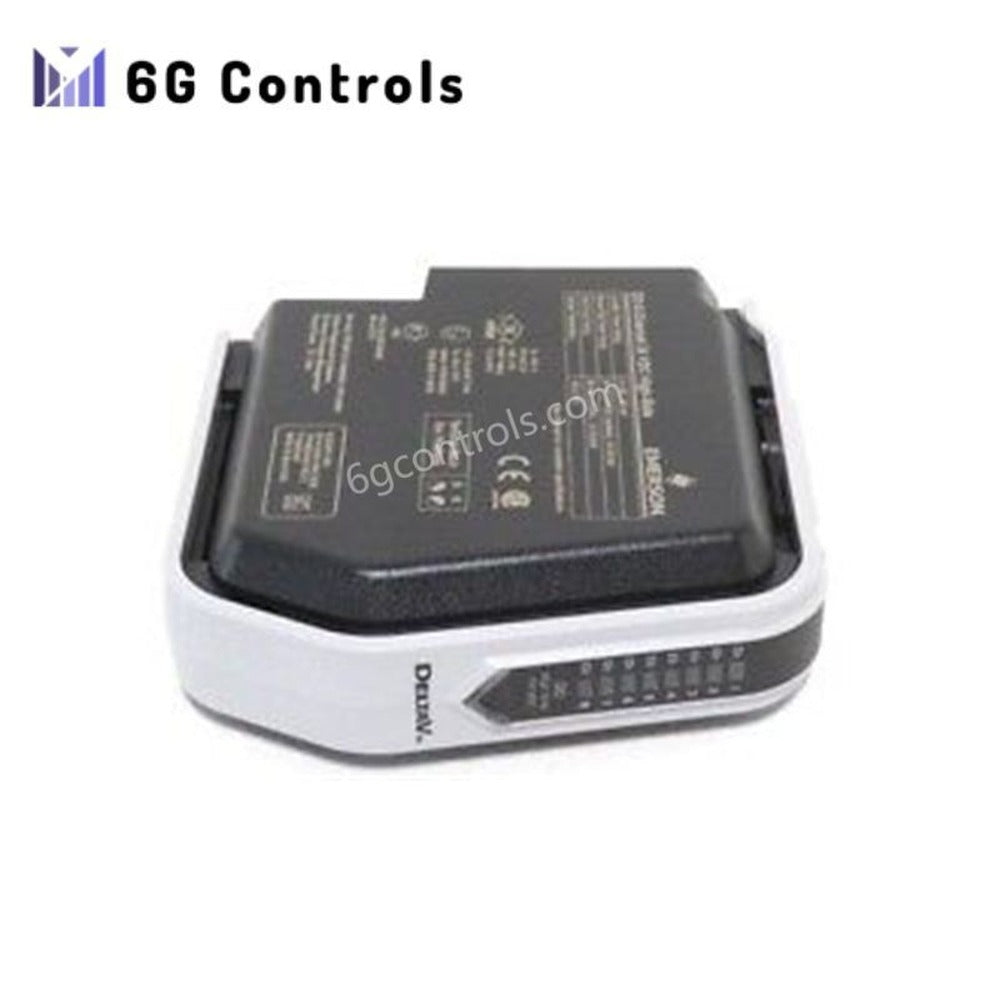

EMERSON KJ3202X1-BK1 S-Series DO 8-Channel 24 VDC High-Side Card

Overview

The Emerson KJ3202X1-BK1 is an S-Series Discrete Output Card designed for Emerson DeltaV systems. It ensures reliable and efficient discrete output functionality. This card is ideal for controlling various field devices in industrial settings.

Technical Specifications

• Model Number: KJ3202X1-BK1

• Type: S-Series Discrete Output Card

• Channels: 8 channels

• Voltage: 24 V DC (High-Side)

Power Specifications

• Local Bus Power: 12 V DC at 150 mA

• Field Power: 30 V DC at 3 A

• Field Circuit: 30 V DC at 1 A per channel, 3 A per card

Environmental Specifications

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Shock: 10 g half-sine wave for 11 ms

• Vibration: 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz

• Humidity: 5% to 95% non-condensing

Compliance and Environmental Ratings

• Airborne Contaminants: ISA-S71.04-1985 Class G3
