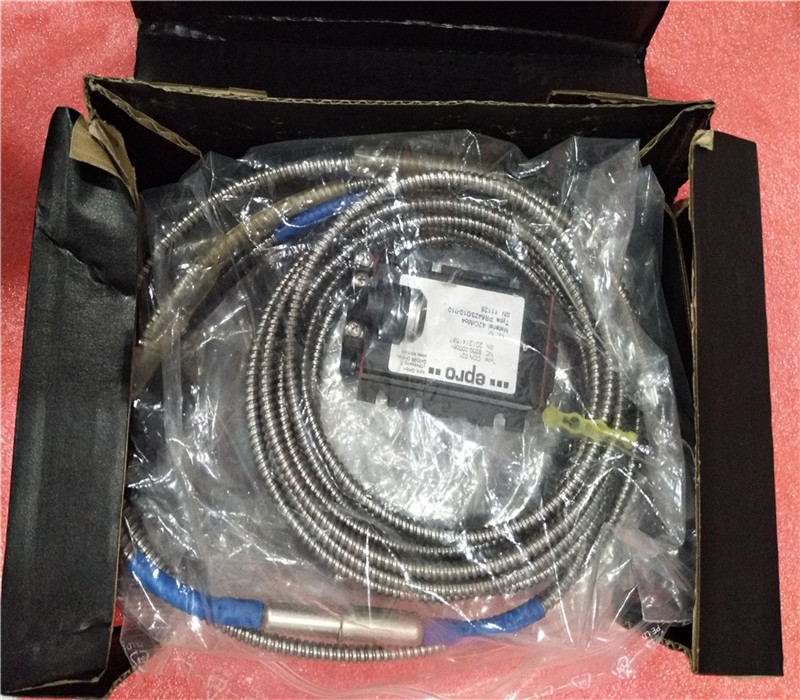

Emerson EPRO PR6424/003-040+CON021 Eddy Current Sensor

The Emerson EPRO PR6424/003-040+CON021 is a 16mm eddy current sensor. It has a sensitivity of 804.247719318987, an accuracy of 0.01, and a range of 100.

Features

Options include field or enclosure mounting, small to large shaft measurements and industry safety ratings
Eddy current sensors feature focused measurement areas over air-coil-based sensors

Specifications

Sensitivity/Linearity: 4 V/mm (101.6 mV/mil) ±1.5% max
Air Gap (Center): Approx 2.7 mm (0.11″) Nominal
Range Static: ±2.0 mm (0.079″)
Range Dynamic: 0 to 1,000µm (0 to 0.039″)
Shaft Diameter: ≥80mm
Weight (Sensor & 1M Cable, No Armor): 200 grams (7.05 oz)
Operating Temperature: -35 to 180°C (-31 to 356°F)
Shock and Vibration5g: @ 60 Hz @ 25°C (77°F)

DOWNLOAD FULL SPECS
