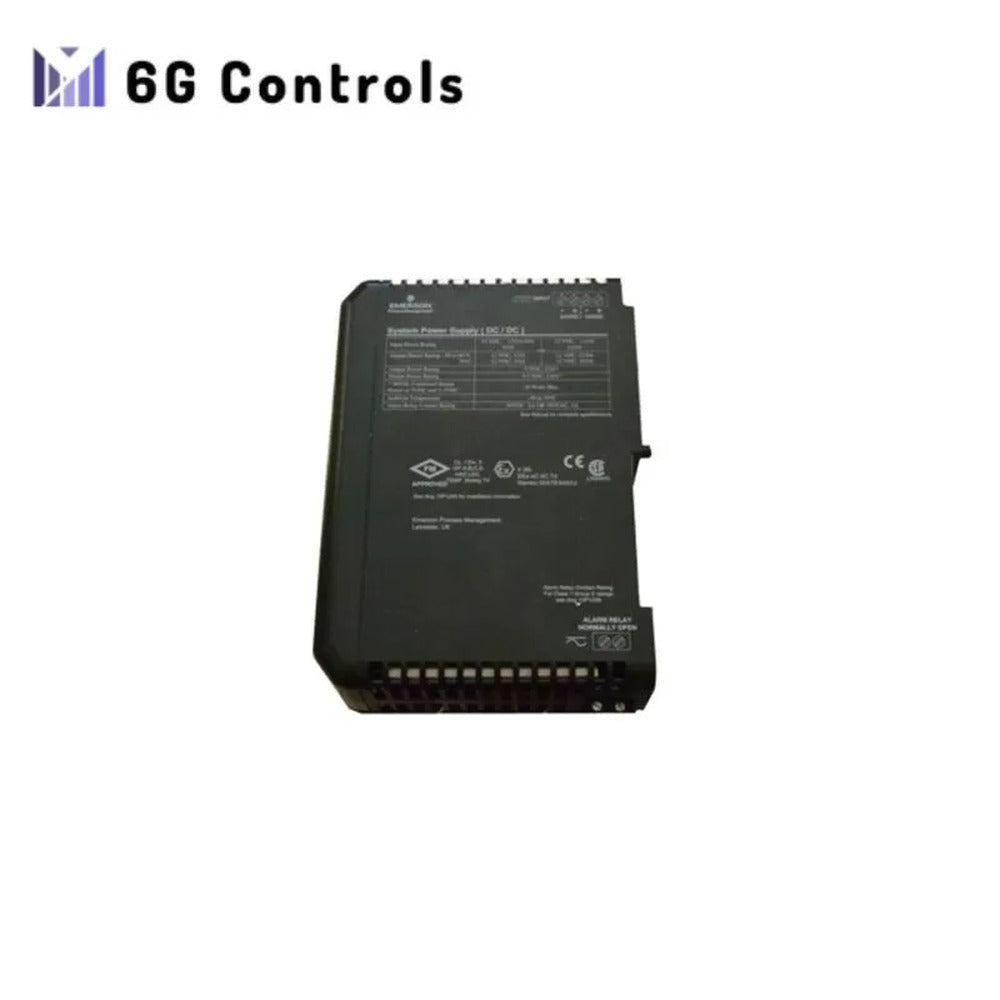

Overview:
Input Rating
- 12 VDC at 14.8 A
- 24 VDC at 6.1 A
Output Rating
- Output Power:
- 12 VDC at 13 A (when 12 VDC input)
- 12 VDC at 8 A (when 24 VDC input)
- 5.1 VDC at 2.0 A
- 3.4 VDC at 2.0 A
- Total of 10.2 W from +5.1 VDC and +3.4 VDC outputs
Environmental Specifications
- Ambient Temperature: -40°C to +70°C
- Shock: 10g ½ Sinewave for 11msec
- Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
- Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
- Relative Humidity: 5% to 95% Non-Condensing
Installation and Operation Notes
- Installation: Follow specific installation instructions for hazardous areas as per document 12P2046 “DeltaV™ Scalable Process System Zone 2 Installation Instructions”.
- Power Source Limitations: Ensure the voltage source does not exceed 12.6 VDC and supply no more than 16 A in 12 VDC passthrough mode.
- Safety: Unit should not be removed or inserted with system power energized. It contains no user-serviceable parts and should not be disassembled.
- Calibration: Not required.
