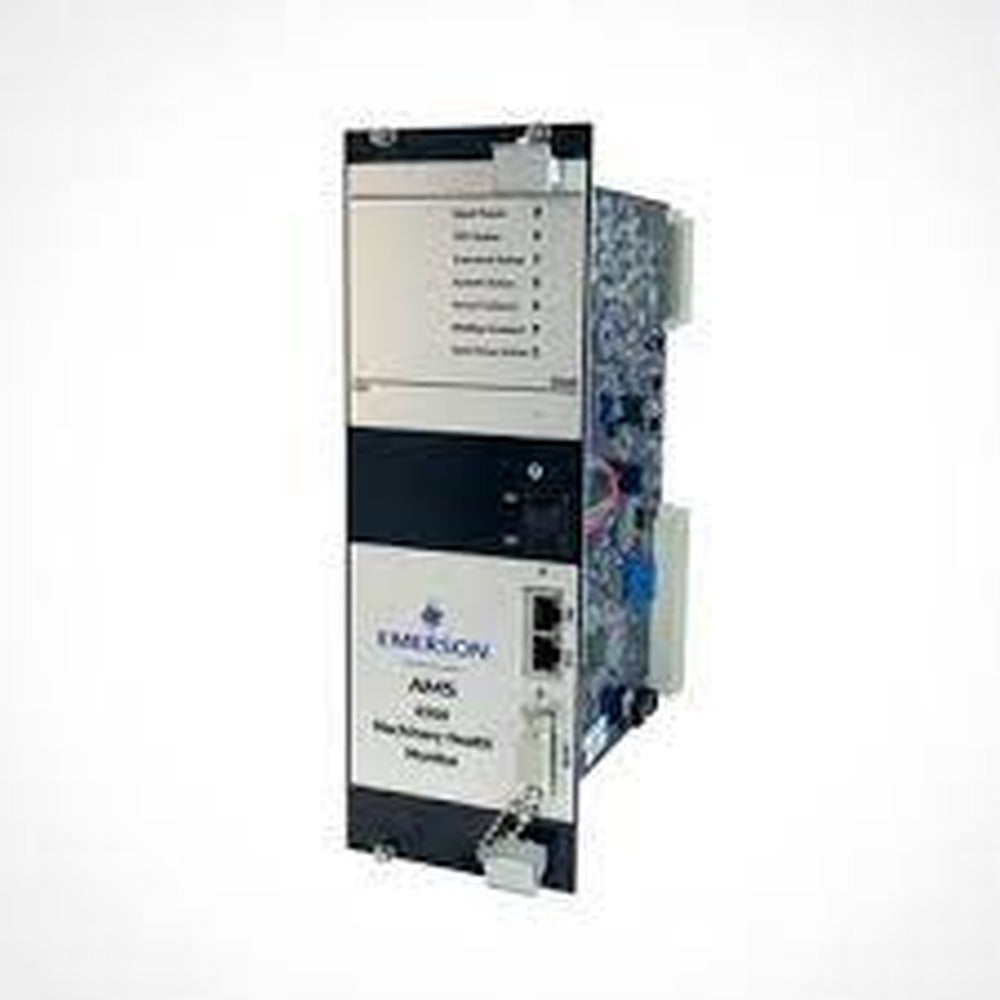

Emerson A6560 CSI 6500 Machinery Health™ Monitor Processor Card

The machinery health processor is the core component of the CSI 6500 Machinery Health Monitor, offering field-based predictive intelligence. The A6560 module provides several key functions:

1. Real-time overall vibration monitoring: This feature offers a quick assessment of all rotating machinery.
2. Configurable machinery health monitoring: The A6560 allows for flexible configuration to monitor machinery health.
3. A6560-T option: The A6560-T includes all the functionality of the A6560 and adds transient monitoring capabilities designed for turbomachinery.

While the real-time overall vibration monitor provides a rapid overview of rotating machines, the predictive machinery health processor conducts in-depth analysis, evaluating two channels simultaneously to diagnose deteriorating machine conditions. It computes waveform, spectrum, and analysis parameters on-site. Additionally, event-based adaptive monitoring adjusts parameters in the field to provide tailored monitoring for your machines and changing process conditions. The results are transmitted from the field to the control system or AMS Suite: Machinery Health Manager software for further analysis and storage.

Key features of the A6560 module include:

• Real-time overall vibration processing.
• Configurable event-based adaptive machinery health processing.
• A6560-T includes transient monitoring for turbomachinery.
• Order tracking.
• Optional PeakVue® functionality.
• Optional Modbus TCP/Ethernet output.
• Local system health check and status LEDs.
• Onboard memory for storing machinery health data in case of network loss.
• Support for up to two A6510 modules per A6560.
• Installation of one A6560 module per chassis when API 670 protection modules are installed.
• Installation of up to two A6560 modules per chassis when API 670 protection modules are not installed.

Technical Data for Process Module:

General:

• Memory Capacity: 32 MB SDRAM, 32 MB Flash.
• Onboard Test Generator.
• CSI 6500 Rack Health Relay: One relay changes states based on loss of power or rack reboot (SPDT 24VDC @ 0.5A DC dry contact).

Network Communications:

• 10/100 BaseT Ethernet NIC and HUB with front and rear RJ45 jacks.
• HUB may be used for daisy chain-type network architecture.

Local Communications:

• HUB for laptop or local display.
• RS-232 serial port.

Sensor Channels:

• Tachometer channels.
• AC, DC amplitude, and phase.

Overall Vibration Monitor:

• Sensor Channel Scan: 12 channels RMS, DC (or peak-to-peak) per 400 msec.
• Peak-to-peak available with transient option.
• Simultaneously scanned with overall vibration scan (includes DC Gap, temperature, and accelerometer bias).

Overall Level and DC Accuracy:

1% at input channel range full span at 1kHz.

Overall Level and DC Resolution:

16 bits.

Data Acquisition:

• Event-based relay input, RPM, DC, AC, or software-controlled.

Data Collection:

• Event-based, adaptive.
• Event-based and/or time-based.
• Exception-based and/or time-based.

ADC Resolution: 24-bit, 2-channel simultaneous.

Dynamic Range: 100 dB, all ranges.

Spectral Resolution: 100 to 6400 lines.

Analysis Bandwidth Fmax: 10 Hz to 40 kHz in discrete steps.

Production State Monitor:

• Spectral Scan Rate: 1 second per two channels, 400 lines, 400 Hz, 1 avg. (depends on analysis configuration).
• Amplitude Accuracy: 5% (0.2Hz – 0.5Hz), 2% (0.5Hz – 25kHz), 4% (25kHz – 40kHz).
• Frequency Accuracy: 0.01%, crystal-based.
• THD: -90 dB, all ranges.
• 1x Phase Accuracy: 4 degrees (1Hz – 1kHz, not calibrated below 1Hz), 5 degrees (> 1kHz).

Analysis and Trend Types:

Multiple analysis types, including total energy, energy in a range, non-sync energy in a range, sync energy in a range, sync peak, sync phase, true peak, HFD, waveform peak to peak, RPM, gap, orbit, and user-defined parameters.

Analysis Setup: Multiple analysis types per machine and per sensor.

Averaging: Normal, PeakVue®, order tracking, synchronous time averaging.

Units: English, Metric, Hz, CPM, order.

Scaling: Linear, log, dB.

Windows: Hanning, uniform.
