Overview

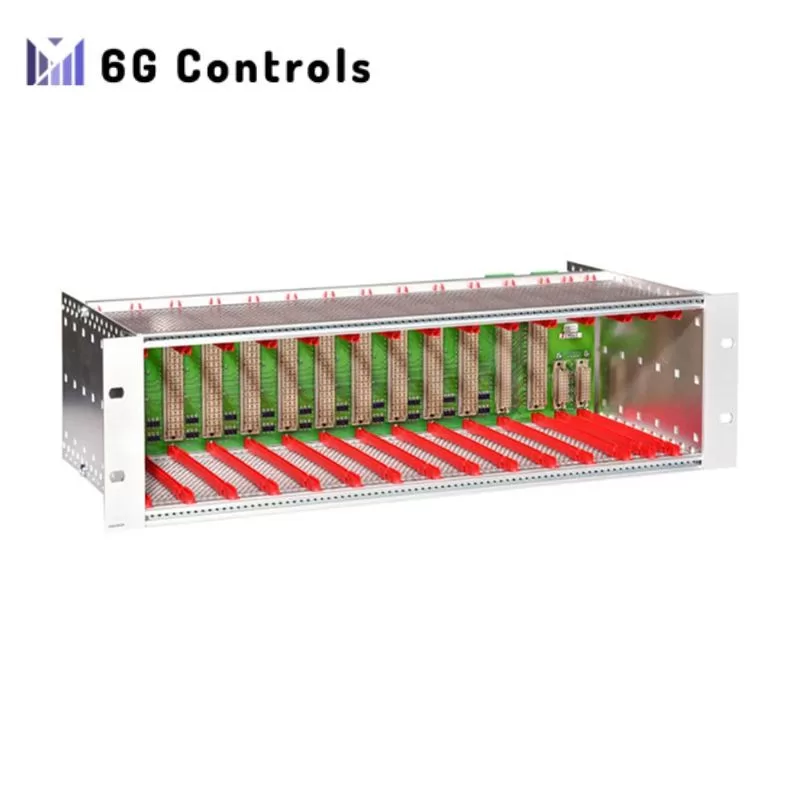

The Emerson A6500-SR System Rack is an essential part of the AMS 6500 ATG machinery protection system. This 19-inch rack provides the flexibility to install up to 11 protection cards.
Dimensions and Weight
- The rack measures 19 inches (483 mm) wide, 3RU (5.25 inches or 133 mm) high, and 10 inches (254 mm) deep.
- It weighs 10 pounds (4.5 kg), making it relatively lightweight for easy handling.
Power Supply
- The system operates on a 100-240 VAC power supply, compatible with 50/60 Hz frequencies.
Environmental Specifications
- The rack performs optimally within an operating temperature range of 0-50°C (32-122°F).
- It can withstand relative humidity levels between 10-90%, as long as there’s no condensation.
Certifications and Approvals
- The A6500-SR rack holds ATEX and IEC-Ex hazardous area approvals.
- For non-sparking environments, it combines nA with nC protection.
Card Capacity and Types
- The rack supports up to 11 protection cards.
- You can install A6500-UM Universal Measuring Cards, A6500-TP Temperature Process Cards, A6500-RC Relay Cards, and A6500-CC Com Cards.
Communication Capabilities
- The A6500-SR system communicates via Ethernet, RS-232, and RS-485, ensuring flexible connectivity options.
