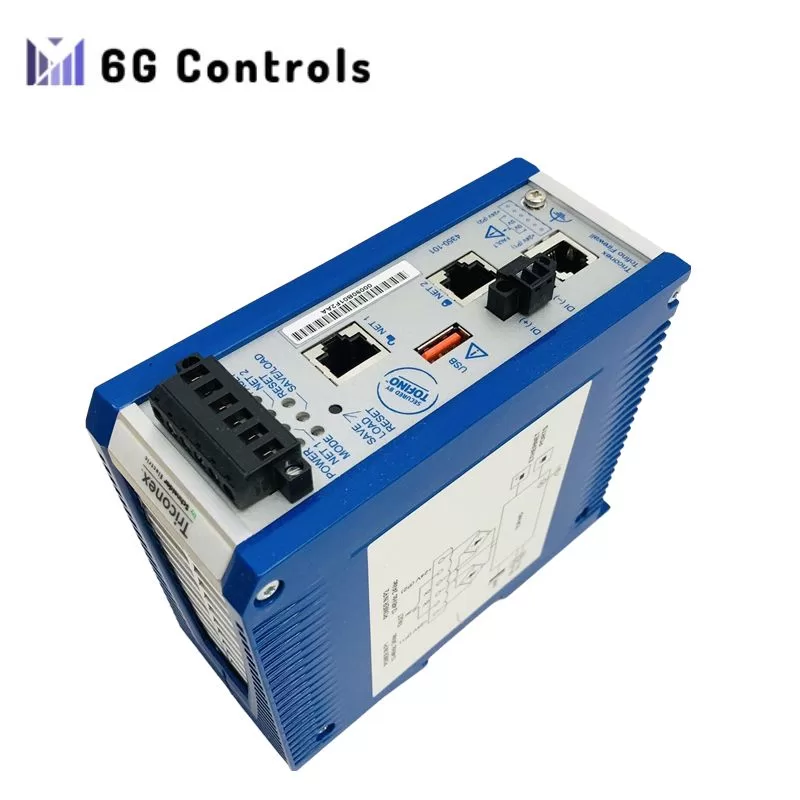

EATON 51154724-300 NE-FWMB01 Modbus TCP Firewall

The EATON 51154724-300 NE-FWMB01 is a specialized Modbus TCP firewall designed for industrial networks.

Modbus TCP Protection:
- Provides robust security for Modbus TCP communications
- Integrates seamlessly into existing industrial networks
Two Ethernet Ports:
- IEEE 802.3 BASE-T ports
- Supports 10/100 Mbps speeds
- Offers auto-sensing or manual configuration
Power Supply:
- Operates on 24 VDC
- Consumes 0.15 A and 3.6 W
Operating Temperature:
- Wide range from -40°C to 70°C
Storage Temperature:
- Ranges from -40°C to 85°C
Humidity:
- Functional in 5% to 95% non-condensing environments
Dimensions:
- Compact size: 22.5 mm x 100 mm x 113.5 mm
Weight:
- 220 g
Security Features:
- Built-in firewall
- Intrusion detection system for enhanced protection
Installation:
- Easy Plug-n-Protect technology
- No preconfiguration or network disruption required
Environmental Design:
- Rugged construction
- Suitable for harsh industrial conditions
Diagnostics:
- LEDs indicate power, mode, fault, save/load, reset, link status, and signal contact
