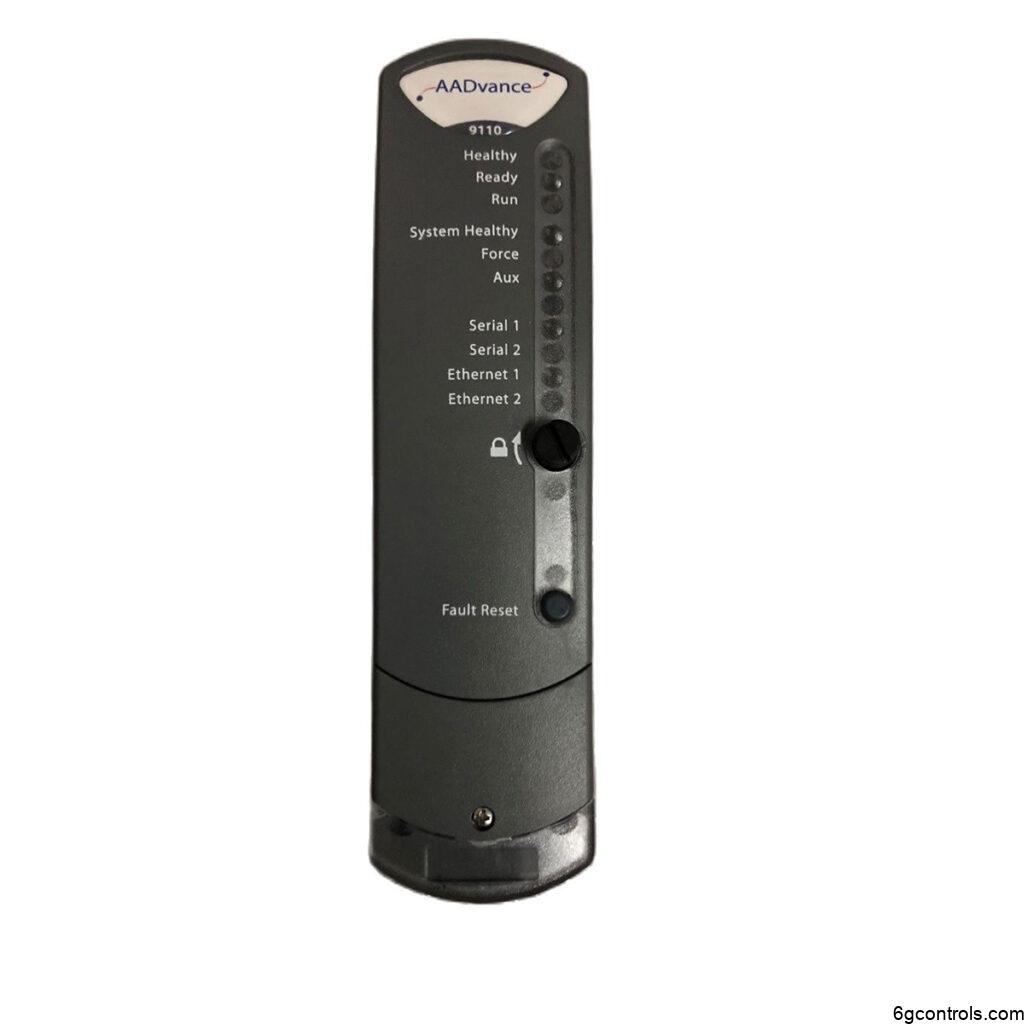

Buy ICS Triplex T9110 Processor Module – Brand New in Stock

The ICS Triplex T9110 Processor Module is a versatile PLC processor module suitable for various industrial applications. It offers high performance, reliability, and a wide range of I/O options.

Key Features:

• 1.5 GHz ARM Cortex-A9 processor
• 1 GB DDR3 RAM
• 128 MB NAND flash memory
• 100 Mbps Ethernet port
• 2x CANopen ports
• 4x RS-485 ports
• 2x USB 2.0 ports
• Support for up to 128 I/O points

Installation of T9110 Processor Module:



Pre-Installation Steps:

• Examine the new processor module for any damage.
• Record the module’s location and details from the label as the labels will be hidden after installation.
• Ensure all processor modules have the same firmware build if installing multiple.

Installation Steps:

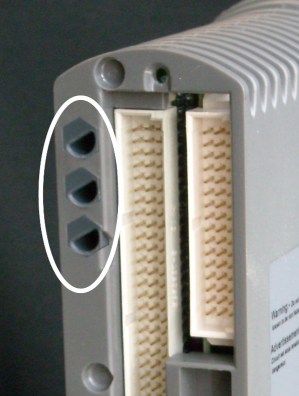

1. Check the coding pegs on the T9100 processor base unit and match them with the sockets on the rear of the processor module.
2. Place the processor module onto the coding pegs, ensuring the slot on the module locking screw’s head is vertical. Push the module in until connectors are fully mated.
3. Use a broad (9mm) flat blade screwdriver to turn the module locking screw clockwise to lock it in place. Note that this screw acts as a power interlock; the module won’t boot if not locked.

Replacing Faulty Processor Backup Battery:

Use the recommended Rockwell Automation battery (Part No: T9905) or an equivalent:

• Polycarbon monofluoride Lithium Coin Battery, BR2032
• Nominal voltage: 3 V
• Nominal capacity: 190 mAh
• Operating temperature: -30°C to +80°C

Battery Replacement Procedure:

1. Use a small cross-head screwdriver to release and remove the battery cover.
2. Remove the battery by pulling on the blue ribbon. Caution: mishandling can cause explosion; do not recharge, disassemble, or burn.
3. Insert a new battery with the positive (+) terminal to the right. Trap the ribbon behind the new battery. Push the battery into the holder.
4. Secure the cover with a cross-head screw.
5. Press the Fault Reset button on the processor module to update the clock. Green LED indicates a healthy processor if the module is part of a running system.

Setting Real Time Clock Manually:

For single controllers without a time server, set the processor’s real-time clock manually using RTC variables.

Date and Time Setting Procedure:

1. Wire processor variables and build/download the program.
2. In Debug mode, force the RTC Read Boolean and RTC Control Rack Variable time fields to TRUE.
3. RTC Status Variables display the current date and time.
4. Set the date and time in RTC Program Rack Variables.
5. Toggle RTC Write variable TRUE then FALSE to write new settings.
6. RTC Status rack displays new date and time.

Installing I/O Modules:



Pre-Installation Steps:

• Examine new I/O module for damage.
• Record module’s location and details as labels will be hidden after installation.

Installation Steps:

1. Match coding pegs on termination assembly with sockets on new I/O module.
2. Place I/O module onto dowel pins on T9300 I/O base unit. Push module home until connectors are mated.
3. Turn module clamp screw’s slot vertical and push until connectors fully mate with I/O base unit.
4. Turn locking screw a quarter turn clockwise using a broad (9mm) flat blade screwdriver. This screw acts as power interlock and must be locked for configuration.
