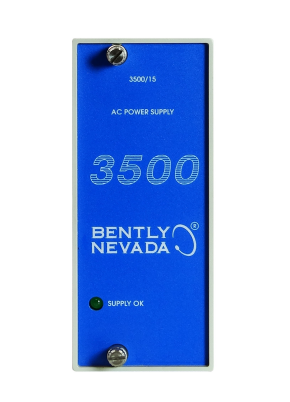

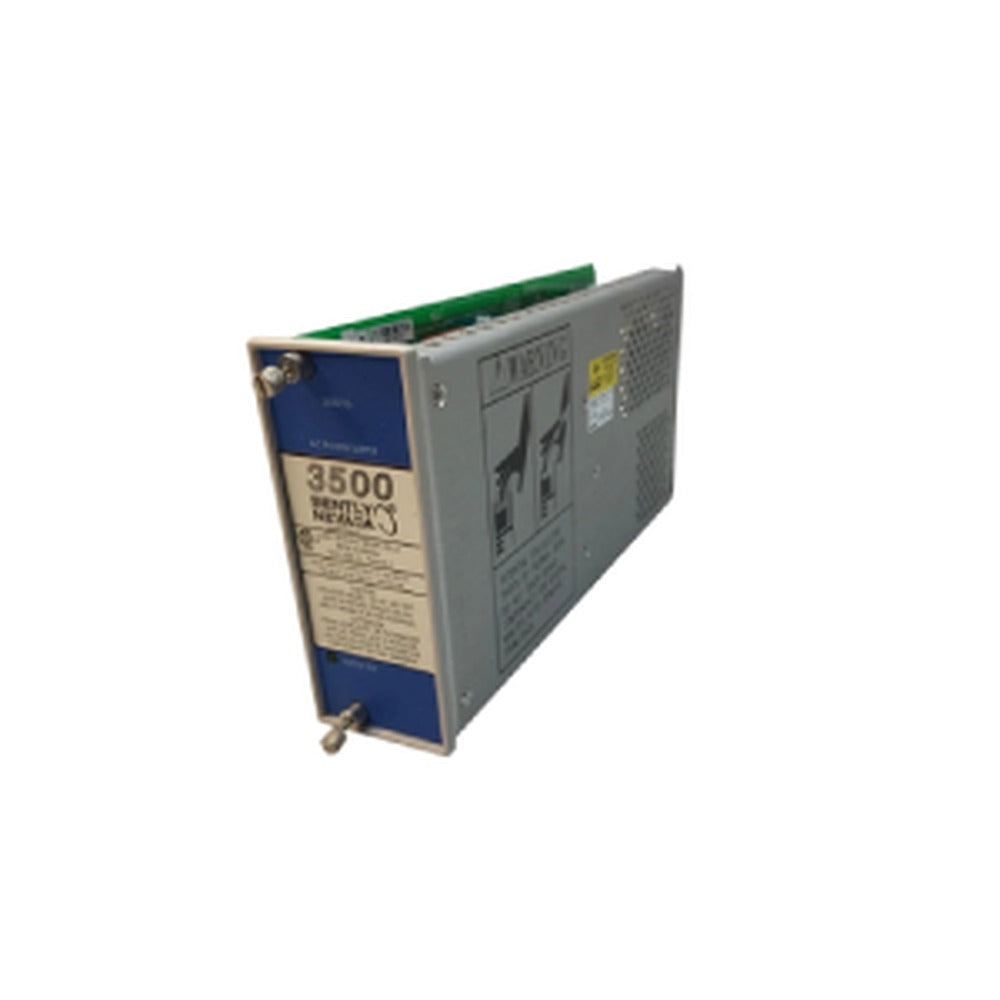

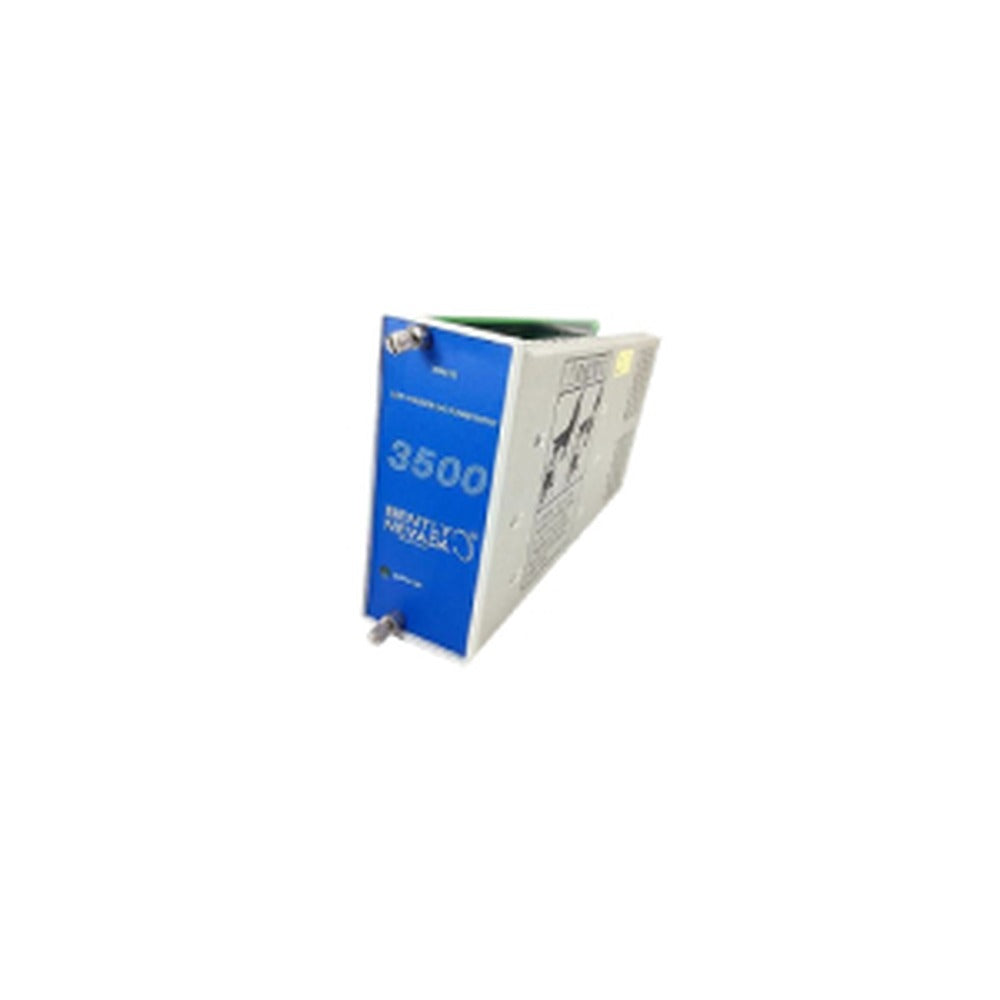

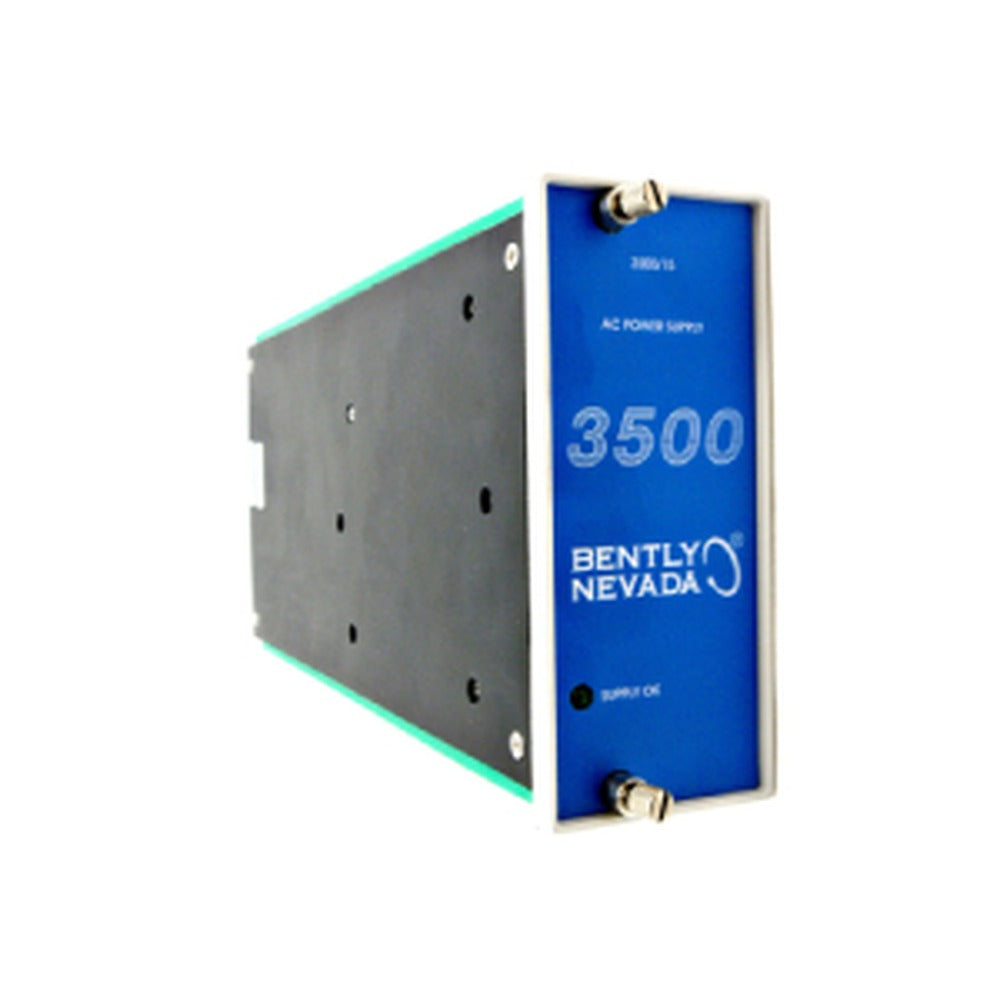

Bently Nevada 3500/15 AC and DC Power Supplies

The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.

Bently Nevada 3500/15 AC and DC Power Supplies When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.

Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.

The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:

Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply

The Universal AC Power Supply and PIM (Power Input Module) are not compatible with the Legacy 3500 AC Power Supply, High Voltage AC PIM and Low Voltage AC PIM.

The High Voltage and Low Voltage DC Power Supplies and PIM(Power Input Module) are NOT compatible with the Legacy 3500 High Voltage and Low Voltage DC Power Supplies and PIMs.

What is Bently Nevada 3500/15?

Bently Nevada 3500/15 is a power supply module designed for use in the Bently Nevada 3500 series machinery protection system. It is a half-height module that must be installed in designated slots on the left side of the rack. The module can accept a wide range of input voltages and convert them to voltages that are acceptable for use by other 3500 modules. There are three power supply versions available: universal AC power, high voltage DC power supply, and low voltage DC power supply. When two power supplies are installed, one acts as the primary supply and the other acts as the backup supply. 6G Controls maintains a large inventory of power supply modules and can fulfill many orders on the same day.
