Overview

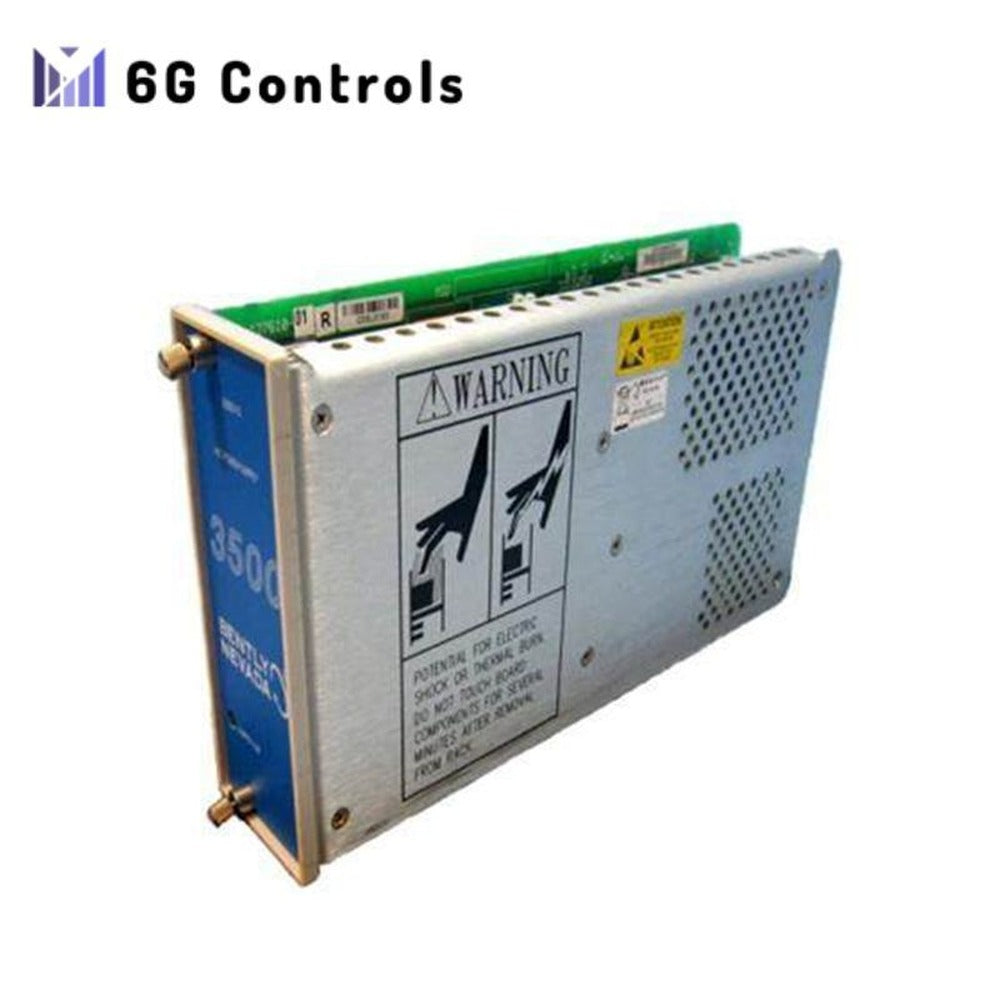

The Bently Nevada 3500/15 114M5335-01 is a Low Voltage DC Power Input Module (PIM) used in the Bently Nevada 3500 Series Machinery Protection System. This module ensures continuous, reliable operation by supplying power to the system’s various components. It supports both power supply redundancy and a wide range of input voltages, making it suitable for critical machinery monitoring in industries such as oil and gas, petrochemical, power generation, and water treatment.
Technical Specifications
General Specifications:
- Module Type: Low Voltage DC Power Input Module (PIM)
- Compatibility: Part of the Bently Nevada 3500 Series Machinery Protection System
- Power Supply Redundancy: Supports one or two power supplies (AC or DC)
- Rack Slot: Half-height module, installed in designated slots on the left side of the rack
Dimensions:
- Power Input Module:
- Height: 120.7 mm (4.75 in)
- Width: 25.4 mm (1.0 in)
- Depth: 114.3 mm (4.5 in)
- Weight: 0.34 kg (0.75 lb)
Environmental Limits:
- Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
Power Input Voltage Options:
- Universal AC Power Supply:
- Input Voltage: 110 to 220 Vac nominal, 85 to 264 Vac rms, 120 to 373 Vac pk
- Input Frequency: 47 to 63 Hz
- High Voltage DC Power Supply:
- Input Voltage: 88 to 140 Vdc
- Low Voltage DC Power Supply:
- Input Voltage: 20 to 30 Vdc
Rack Space Requirements:
- Power Supply Module:
- Two half-height slots on the left side of the rack
- Each slot accommodates one power supply (supports redundancy with two supplies)
- Power Input Module:
- Located directly behind the associated power supply in the rack
