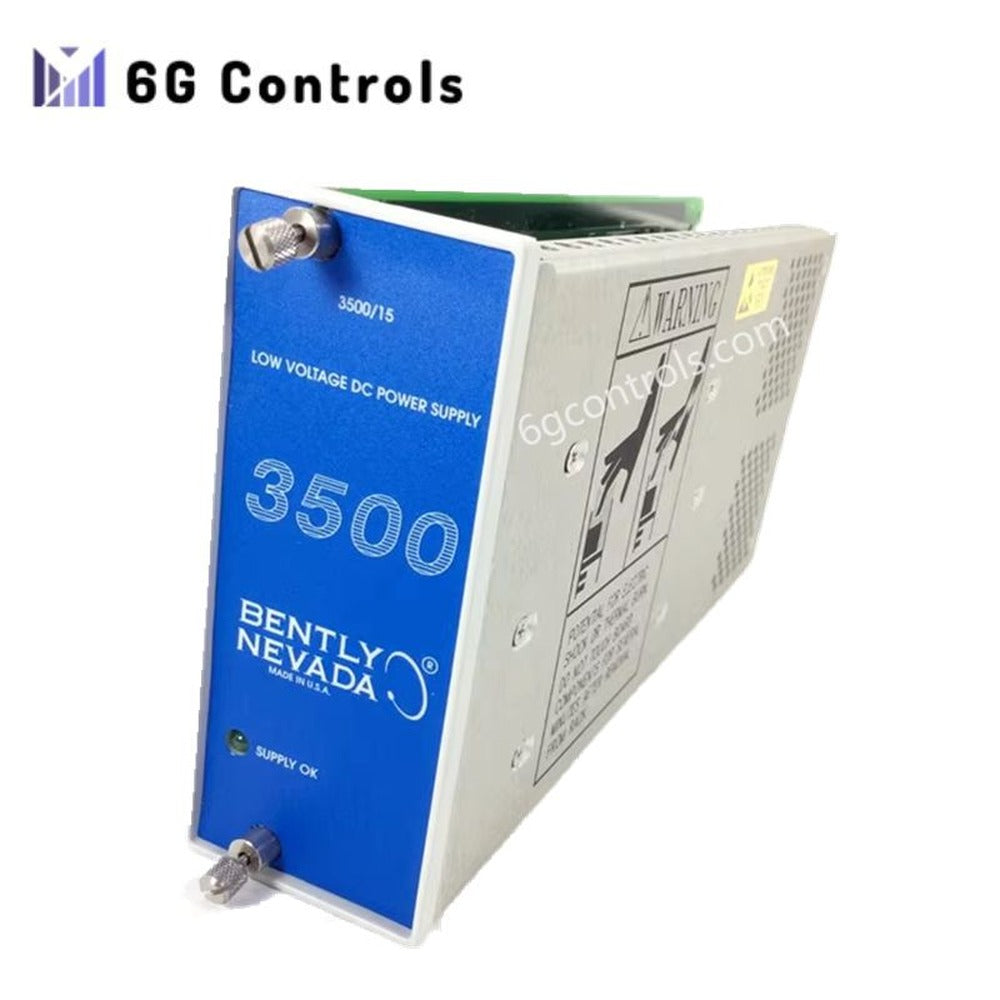

Bently Nevada 3500/15-05-05-00 (106M1079-01+106M1081-01) Power Supply Module

Overview

The Bently Nevada 3500/15-05-05-00 is a Power Supply Module, and the associated components 106M1079-01 and 106M1081-01 are its Universal AC Power Supply Module and AC Power Input Module, respectively. Together, they ensure reliable power delivery for the Bently Nevada 3500 Monitoring System, which is widely used for machinery protection and condition monitoring.

Technical Specifications

3500/15-05-05-00 (Power Supply Module)

• Type: Power Supply Module
• Input Voltage: Universal AC input (85-264 VAC)
• Output Voltage: Provides regulated DC power to the 3500 rack
• Power Capacity: Supports full rack operation
• Redundancy: Allows for dual power supply configuration (primary and backup)
• Dimensions: 5.1 cm x 25.2 cm x 12 cm
• Weight: 1.14 kg
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Certifications: CE, UL, CSA

106M1079-01 (Universal AC Power Supply Module)

• Functionality: Converts AC input to DC power for the rack.
• Input Voltage Range: 85-264 VAC
• Frequency: 47-63 Hz
• Efficiency: High efficiency for reduced energy consumption.

106M1081-01 (AC Power Input Module)

• Functionality: Interfaces with the Universal AC Power Supply Module.
• Compatibility: Designed to work seamlessly with the 3500/15 module.
• Durability: Built to withstand industrial environments.

Features

• Redundant Design: Supports dual power supplies for uninterrupted operation.
• Compact and Modular: Easy to install in the 3500 rack system.
• Reliable Performance: Ensures stable power delivery for critical machinery monitoring.
• Wide Input Range: Compatible with various power sources.
