Overview

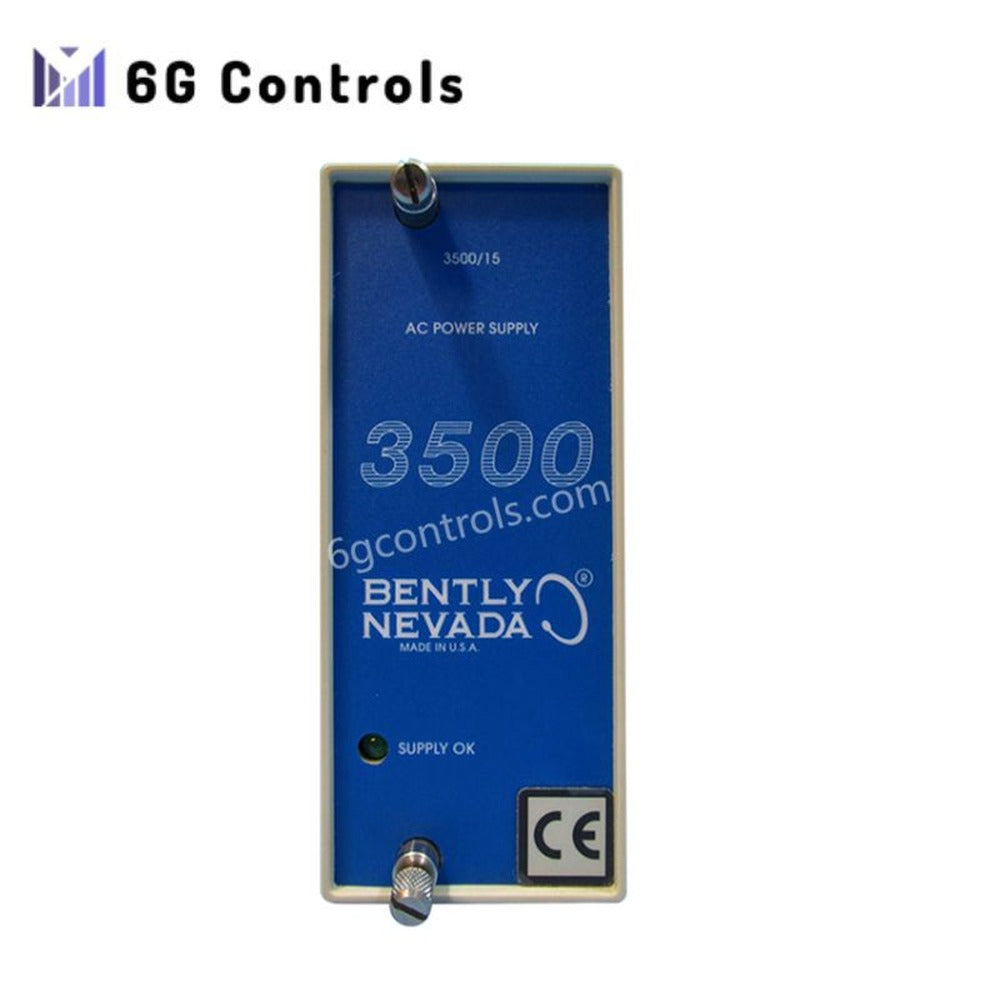

The Bently Nevada 3500/15-02-02-00 is a power supply module designed for the Bently Nevada 3500 Monitoring System. It provides stable and regulated DC power to the 3500 rack, ensuring uninterrupted operation of monitoring and protection modules for machinery. The module supports full rack operation and features redundancy through dual power supply configuration (primary and backup), making it reliable for critical industrial applications.
Technical Specifications
- Model Number: 3500/15-02-02-00
- Type: Power Supply Module
- Input Voltage: Universal AC input (85-264 VAC)
- Output Voltage: Regulated DC power for the 3500 rack
- Power Capacity: Supports full rack operation
- Redundancy: Dual power supply configuration (primary and backup)
- Dimensions: 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
- Weight: 1.39 kg (3.06 lbs)
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Power Supply Type (Top Slot): High Voltage AC (175 to 264 VAC RMS)
- Power Supply Type (Bottom Slot): High Voltage AC (175 to 264 VAC RMS)
- Agency Approval: None
