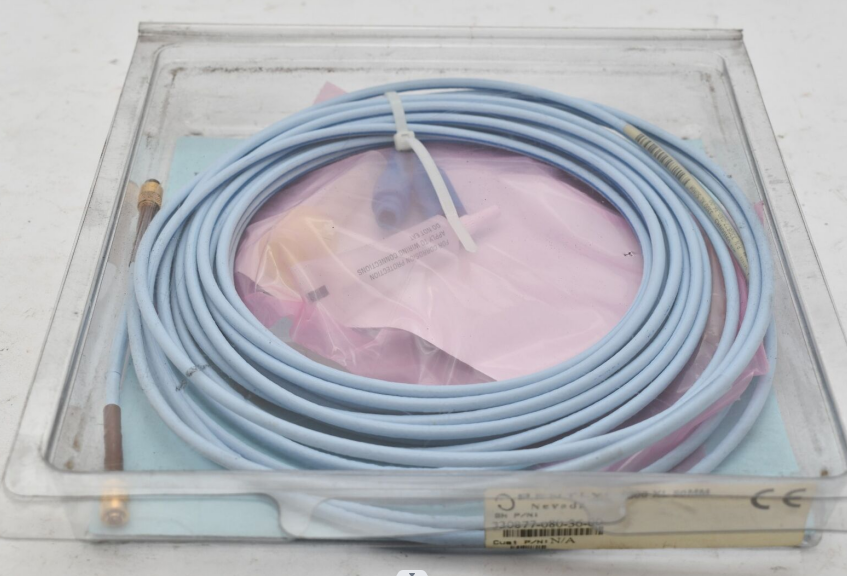

The BENTLY NEVADA 330877-080-36-00 3300 XL 50 mm probe is designed to survive the harshest steam turbine DE environments. It can continually operate and maintain its accuracy in high temperatures up to 200 °C (392 °F), and can withstand intermittent high temperatures up to 250 °C (482 °F). The 50 mm probe has both a front and rear seal which, combined with the High Temperature FluidLoc* cable (standard on all 50 mm probes), prevent moisture from entering the probe tip. Special high-temperature ClickLoc* connectors are also standard on the probe and extension cable. Each probe and cable come with connector protectors and a disposable connector protector installation tool to ensure that the connectors remain free of contamination. The ClickLoc connector on the probe lead features a removable collar that facilitates routing the cable through tight clearances.
The 3300 XL 50 mm probe is available in straight exit case styles with ½-20 English threads or M14x1.5 metric threads, including a locknut with predrilled safety wire holes. The side exit probe has two ¼-20 mounting holes in the rear of the probe case. For both straight exit and side exit probes the overall case diameter is 1.99 inches.
Specifications
- Cable Length Option : 080 = 8.0 metres (26.2 feet)
- Armor and Cable Option : 36 = FluidLoc ext. cable
- Agency Approval Option : 00 = No Approvals
- Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Extension Cable Material: 75 O triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.
- Operating and Storage Temperature: -51°C to +200°C (-31°F to +392°F)
Learn more and download the PDF file: 330878-90-00
