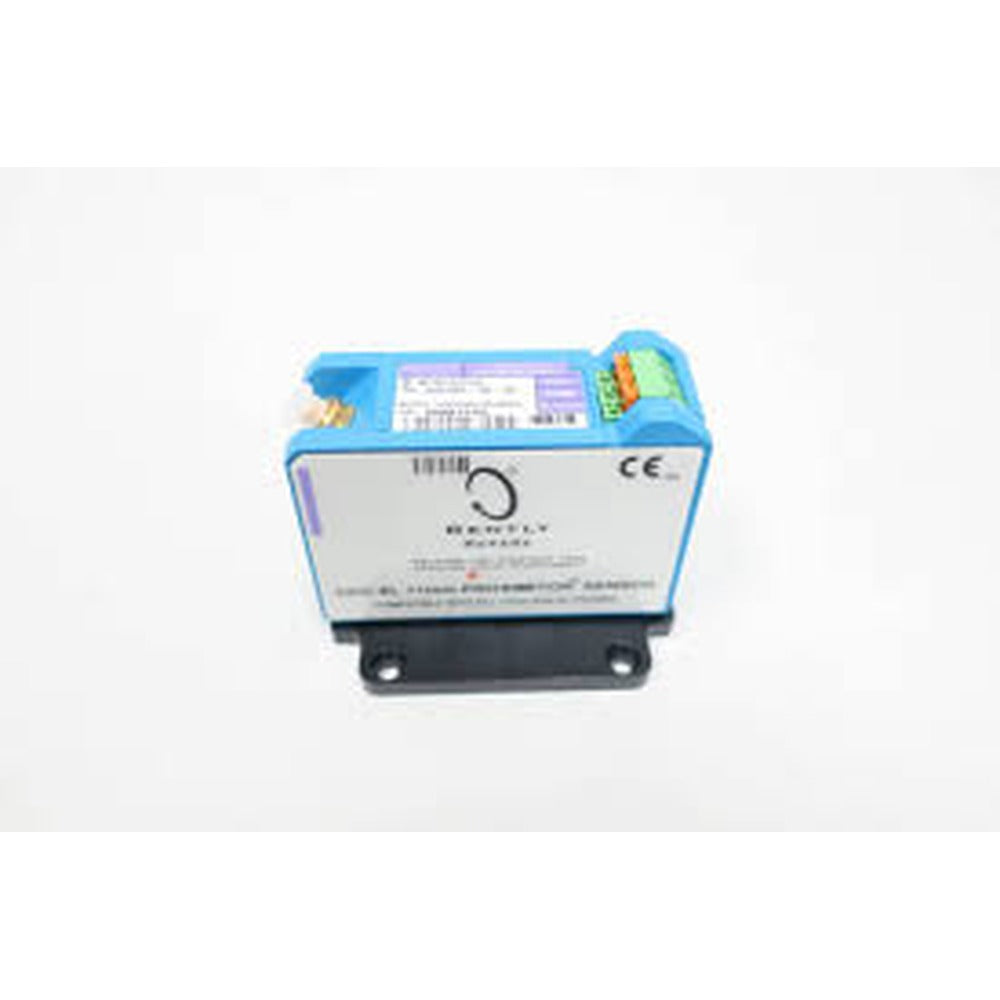

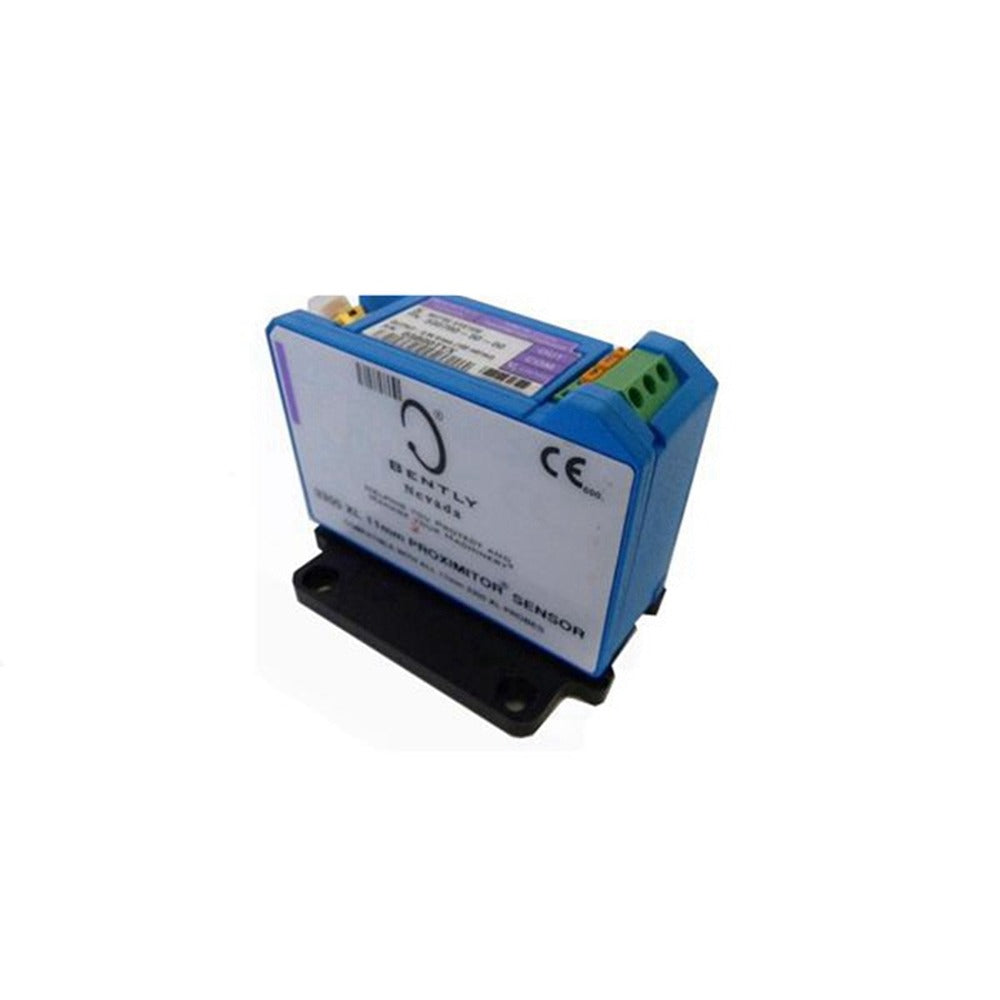

Bently Nevada 330780-50-00 3300 XL 11 mm Proximitor Sensor

Transducer System:

• The 330780-50-00 3300 XL 11 mm Proximity Transducer System is used for non-contacting vibration and displacement measurements on fluid film bearing machines.
• It includes a 3300 XL 11 mm probe, 3300 XL 11 mm extension cable, and a 3300 XL 11 mm Proximitor Sensor.
• The 11 mm tip of this transducer system provides a longer linear range compared to the standard 3300 XL 8 mm Transducer System.
• It is used in various applications, including axial position measurements, expansion measurements on steam turbines, rod position measurements on reciprocating compressors, tachometer measurements, and phase reference (Keyphasor) signals.
• When upgrading from the 7200-series system to the 3300 XL 11 mm system, all components must be replaced, and the monitoring system must be updated.
• The 3300 XL 11 mm Proximity Transducer is designed for measuring position or vibration within a frequency range of 0 to 8 kHz.

Proximitor Sensor:

• The 330780-50-00 3300 XL 11 mm Proximitor Sensor shares advanced features with the 3300 XL 8 mm Proximitor Sensor.
• It has a thin design for flexible mounting options, including DIN-rail and panel mount configurations.
• It has improved RFI/EMI immunity and European CE mark approvals.
• SpringLoc terminal strips on the Proximitor Sensor simplify field wiring connections.

Proximity Probe and Extension Cable:

• The 3300 XL 11 mm probe comes in various configurations, including armored and unarmored with different probe threads.
• Gold-plated brass ClickLoc connectors lock securely in place.
• The TipLoc molding method ensures a strong bond between the probe tip and body.
• CableLoc design provides a 330 N (75 lb) pull strength for the probe cable.
• FluidLoc cable option prevents liquid leakage through the cable.
• Connector protectors are recommended for added environmental protection.
• The probe includes a locknut with predrilled safety wire holes.

Specifications:

• Specifications for the 3300 XL 11 mm Proximitor Sensor, extension cable, and probe are provided, including operating conditions, power supply, target material, and probe gap.
• Product No. : 330780-50-00
• Product type : 3300 XL 11 mm Proximitor Sensor
• Made in U.S.A
• 50 – Total length and mounting option : 5.0 metre (16.4 feet) system length, panel mount
• 00 – Agency approval option : Not required
• Recommended Minimum Target Size : 30.5 mm (1.2 in) diameter (flat target)
• Weight : 0.82 Kg
• Shipping Weight : 2 Kg

Download PDF File 3300 XL 11mm Proximity Transducer System: 3300XL-11mm
