Overview

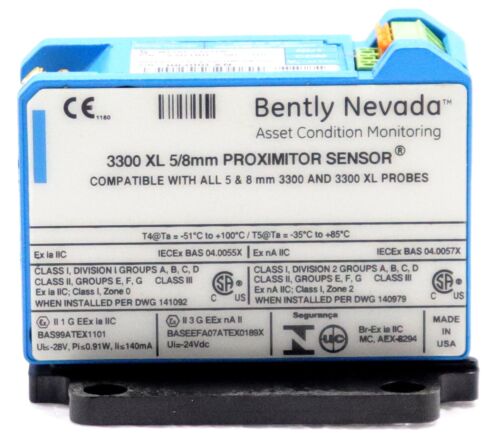

The Bently Nevada 330180-50-05 is a 5.0 metre (16.4 feet) panel-mounted proximity transducer system with CSA, ATEX, and IECEx approvals. It accepts one non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probe and extension cable.
Features
- 5.0 metre (16.4 feet) system length
- Panel mount
- CSA, ATEX, and IECEx approvals
- Accepts one non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probe and extension cable
- Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers
- Less than 2 mV change in output voltage per volt change in input voltage
- A308 aluminum proximity sensor material
- Gold-plated brass or gold-plated beryllium copper connector material
Technical Specifications
- Total length: 5.0 metres (16.4 feet)
- Mounting: Panel mount
- Agency approvals: CSA, ATEX, IECEx
- Proximitor sensor input: One non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probe and extension cable
- Power: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers
- Supply sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
- Proximitor sensor material: A308 aluminum
- Connector material: Gold-plated brass or gold-plated beryllium copper
For more parameters, please read the PDF of our 3300 XL Proximitor Sensor : 3300XL
