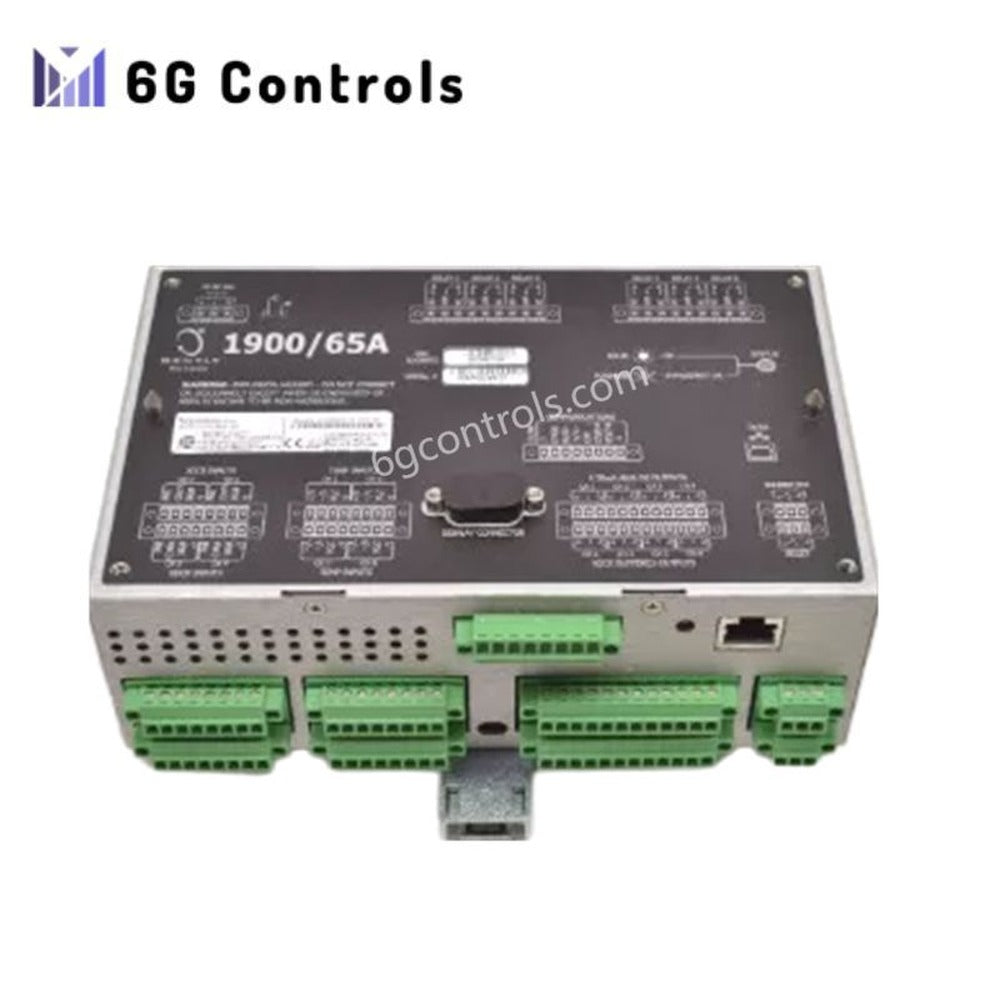

Bently Nevada 1900/65A-01-00-01-00-00 General Purpose Equipment Monitor

Overview

The Bently Nevada 1900/65A-01-00-01-00-00 is a General Purpose Equipment Monitor, designed for continuous monitoring and protection of industrial machinery. It offers a cost-effective solution for non-critical machinery and general-purpose applications.

Technical Specifications

Model Number: 1900/65A-01-00-01-00-00
Type: General Purpose Equipment Monitor
Power Supply: 18 to 36 VDC
Display Option: Attached display (no cable)
Mounting Option: DIN rail mount
Approvals: Multiple hazardous area certifications

Inputs

4 Transducer Inputs: Supports 2-wire and 3-wire accelerometers, velocity sensors, and proximity sensors
4 Temperature Inputs: Supports Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs

Outputs

6 Relay Outputs
4 Configurable 4-20 mA Recorder Outputs
Buffered Output: Provides transducer signals

Communication

Modbus: Supports Ethernet and RS232/485 serial port connections

Operating Conditions

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Dimensions: 19.69 cm x 14.94 cm x 7.44 cm
Weight: 2 kg

Key Features

Continuous Monitoring: Real-time machinery protection and monitoring
Flexible Configuration: Supports multiple sensor types with customizable settings
Compact Design: Easy to install with DIN rail mounting
Reliable Communication: Modbus connectivity integrates with SCADA, DCS, or PLC systems
Cost-Effective Solution: Designed for general-purpose applications, minimizing monitoring costs
