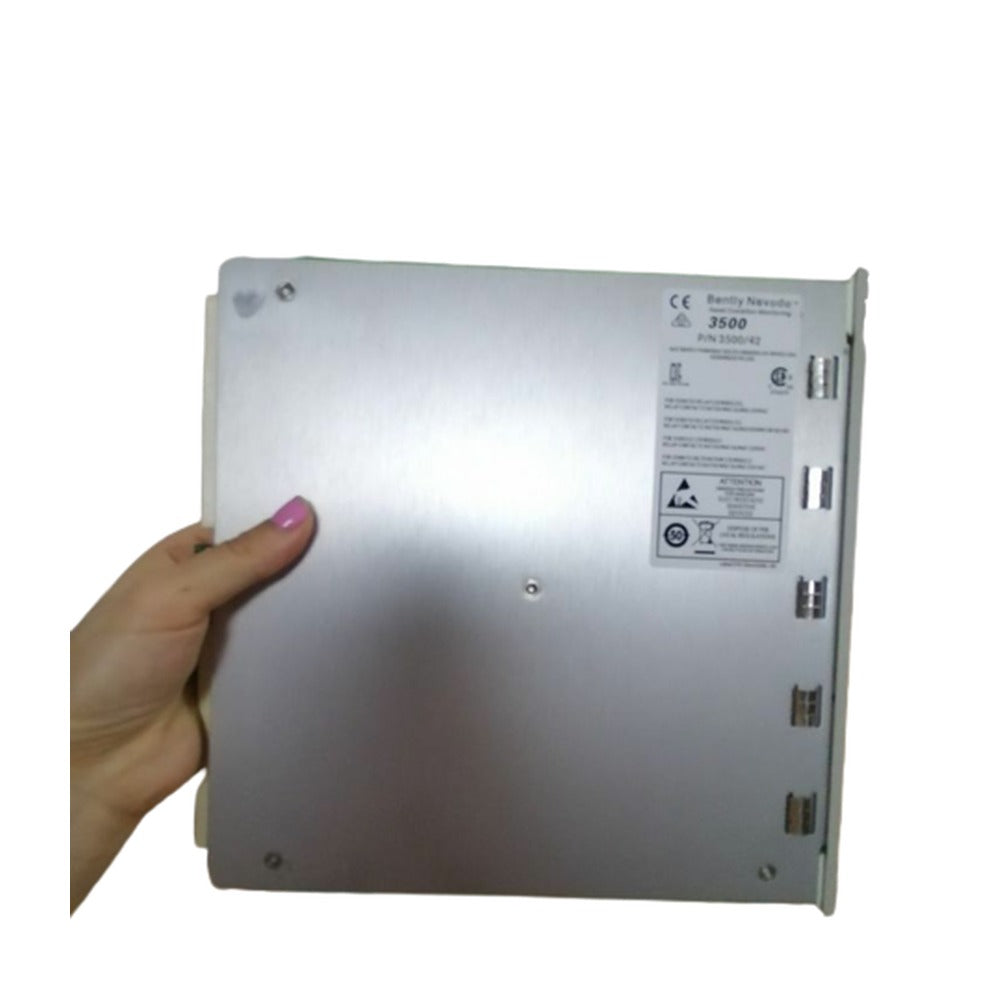

Bently Nevada 176449-02 3500/42M Proximitor/Seismic Monitor

Description:

The 3500/42M Proximitor/Seismic Monitor is a 4-channel monitoring device. It accepts input signals from proximity and seismic transducers, conditions these signals to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. Each channel can be programmed using the 3500 Rack Configuration Software to perform a range of functions including Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, REBAM*, Acceleration, Velocity, Shaft Absolute, and Circular Acceptance Region. It’s important to note that channels are programmed in pairs and can perform up to two of these functions simultaneously; channels 1 and 2 can perform one function, while channels 3 and 4 perform another (or the same) function.

Primary Purpose:

1. Machinery Protection: The primary purpose of the 3500/42M monitor is to ensure machinery protection by continuously comparing monitored parameters against configured alarm setpoints to trigger alarms.
2. Essential Machine Information: It also provides essential machine information for both operational and maintenance personnel.

Specifications:

Inputs:

• Signal: Accepts from 1 to 4 proximity, velocity, or acceleration transducer signals.
• Input Impedance: Standard I/O: 10 kΩ (Proximitor and Acceleration Inputs). TMR I/O: The effective impedance of three Bussed TMR I/O channels wired in parallel to one transducer is 50 kΩ.
• Power Consumption: 7.7 Watts, typical.

Sensitivity (mV/µm or mV/(m/s²)):

• Radial Vibration: 3.94 or 7.87 (Selectable)
• Thrust: 3.94 or 7.87 (Selectable)
• Eccentricity: 3.94 or 7.87 (Selectable)
• Differential Expansion: 0.394 or 0.787 (Selectable)
• REBAM: 40 or 80 (Selectable)
• Acceleration and Acceleration2: 10
• Velocity and Velocity2: Selectable among 20, 5.8, or 4
• Shaft Absolute, Radial Vibration: 3.94 or 7.87 (Selectable)
• Shaft Absolute, Direct: 3.94 or 7.87 (Selectable)
• Shaft Absolute, Velocity: Selectable among 20, 5.8, or 4
• Circular Acceptance Region: Same as Radial Vibration

Outputs:

• Front Panel LEDs:
  • OK LED: Indicates normal operation.
  • TX/RX LED: Communication status indicator.

The 3500/42M Proximitor/Seismic Monitor serves as a versatile monitoring system designed for machinery protection and providing essential machine data to support both operational and maintenance requirements.

NOTE: This is an upgrade replacement for 140734-02

For further information about the 3500/42m Proximitor Seismic Monitor, please review the PDF online: 3500-42M-Proximitor-Seismic-Monitor
