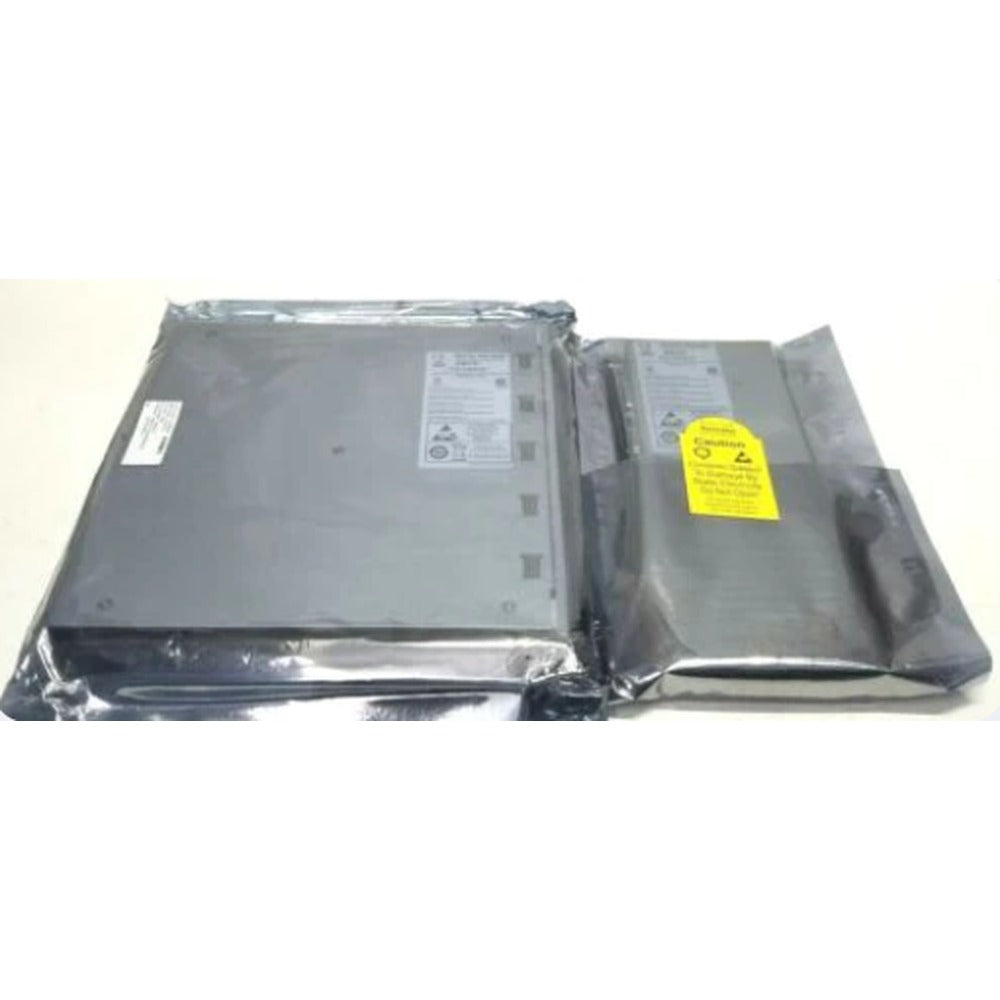

The Bently Nevada 3500/92 136180-01 Communication Gateway module offers extensive communication capabilities for integrating rack monitored values and statuses with process control and automation systems. It supports both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications, allowing seamless integration. This module facilitates Ethernet communication with 3500 Rack Configuration Software and Data Acquisition Software, and supports various protocols:
- Modicon® Modbus® protocol (via serial communications)
- Modbus/TCP protocol (TCP/IP Ethernet communications)
- Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software)
The Ethernet connection to the 3500/92 is via RJ45 for 10BASE-T star configuration Ethernet networks. The 3500/92 retains the communication interfaces, protocols, and features of the original 3500/90, except for primary value Modbus registers. Instead, the 3500/92 features a Configurable Modbus Register Utility, offering the same functionality as the original primary value Modbus registers.
Specifications:
Inputs: Power Consumption: 5.0 watts typical with Modbus RS232/RS422 I/O Module, 5.6 watts typical with Modbus RS485 I/O Module. Data Types: Collects data from various rack modules including proportional values, statuses, and alarms. Update Time: Data collection rate varies based on rack configuration but is generally within 1 second.
Outputs: Front Panel LEDs:
- OK LED: Indicates proper operation of the 3500/92.
- TX/RX LED: Indicates communication with other modules in the rack.
Protocols:
- BNC Host Protocol: Communication with 3500 Configuration Software and Data Acquisition Software over Ethernet TCP/IP.
- Modbus®: Based on AEG Modicon PI-MBUS-300 Reference Manual, using RTU transmission mode.
- Ethernet Communication Link: 10Mbps Ethernet conforming to IEEE802.3, supporting Ethernet TCP/IP frame and Modbus/TCP.
- Connection: RJ-45 (telephone jack style) for 10BASE-T Ethernet cabling.
Environmental Limits: Main Module Operating Temperature: -30°C to +65°C (-22°F to +150°F). Main Module Storage Temperature: -40°C to +85°C (-40°F to +185°F). Humidity: 95%, non-condensing.
I/O Module: Operating Temperature: 0°C to +65°C (+32°F to +150°F). Storage Temperature: -40°C to +85°C (-40°F to +185°F). Humidity: 95%, non-condensing.
For more details,Please read the PDF we have provided for you:136180-01
