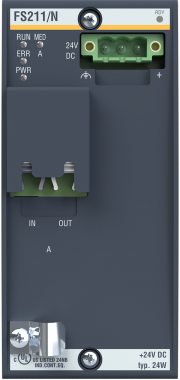

Bachmann FS211/N FASTBUS Module Brand new in Stock

The Bachmann FS211/N FASTBUS module is specifically engineered to facilitate the distribution of substations over extended distances while maintaining a very low signal delay. Additionally, the power supply integrated into the FASTBUS slave modules, like the FS211/N, can power the I/O modules of a substation.

Key Features:

• FASTBUS master modules with 1 FO interface
• FASTBUS slave modules with 1 FO interface
• FASTBUS slave modules equipped with an integrated power supply
• Support for up to 15 distributed substations
• Distances between 2 stations:
  • 40 meters for POF (Plastic Optical Fiber) cables
  • 150 meters for HCS (Hard Clad Silica) cables
  • 180 meters for special HCS cables
• Status display (RUN/ERR) and a display for fiber type
• Minimal signal delay

Technical Specifications:

• Cable Length: Inter-station spacing of 40/150/180 meters
• Maximum Total Length: 1000 meters
• Transmission Media:
  • Plastic Optical Fiber (POF): Up to 40 meters (POF is sometimes referred to as PMMA)
  • Hard Clad Silica Optical Fiber (HCS): Up to 150 meters (HCS is sometimes referred to as Plastic Clad Silica Optical Fiber, PCF)
  • Specialized HCS Cables: Up to 180 meters
• Maximum Number of Stations: Up to 16
• Integrated Power Supply:
  • Input Voltage: 24 VDC (18 to 34 V)
  • Maximum Current Consumption at 24 V: 1.2 A
  • Rated Power (Output): 17 W
  • Output Current at +5 V: 2800 mA 1)
  • Output Current at +15 V: 250 mA 1)
  • Output Current at -15 V: 200 mA 1)
  • Electrical Isolation from the System: 500 V
  • Reverse Polarity Protection: Yes
• Certifications and Approvals:
  • Overview: CE, cULus, CCC
  • Maritime: DNV, LR, ABS, BV, NK, KR, RINA
• Environmental Conditions:
  • Operating Temperature: 0 to +60 °C
  • Relative Air Humidity (during operation): 5 to 95%, non-condensing
  • Storage Temperature: -40 to +85 °C
  • Relative Air Humidity (during storage): 5 to 95%, non-condensing
  • Pollution Degree (per IEC 60664-1 Standard): 2 (non-condensing)
