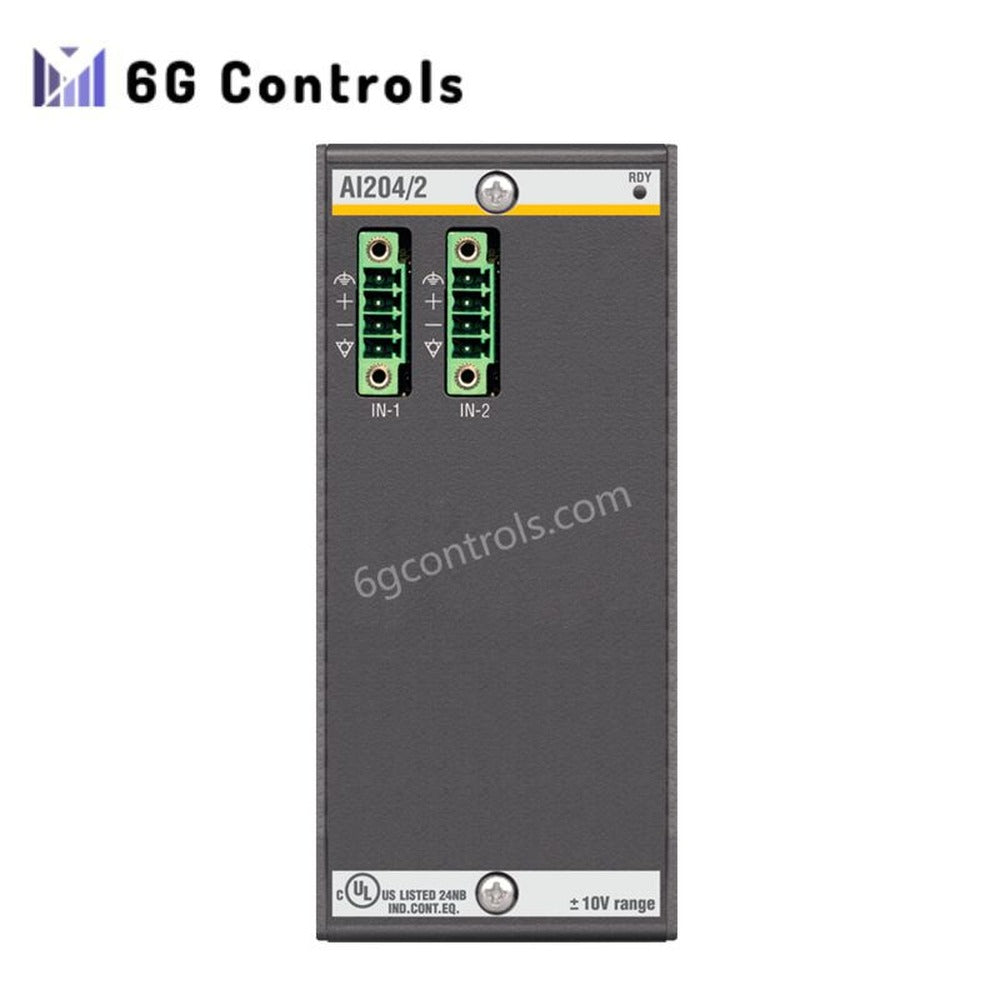

Bachmann AI204/2 Analog Input Module Most Favorable

Overview

The Bachmann AI204/2 is an analog input module designed for precise measurement and control in industrial automation systems. It provides reliable and accurate data acquisition, ideal for process technology applications.

Technical Specifications

• Model Number: AI204/2
• Manufacturer: Bachmann
• Type: Analog Input Module
• Number of Channels: 2 analog inputs
• Analog Inputs: 2x In ± 10V
• Resolution: 16-bit
• Accuracy: High precision, 0.005%
• Sampling Time: 20 μs
• Features: Digital averaging, single isolated
• Input Voltage Range: ±10 V
• Input Impedance: 33 kΩ
• Resolution: 16-bit
• Sampling Time: 20 μs to 640 μs (selectable)
• Galvanic Isolation: 500 V between channels and from the system
• Operating Temperature Range: -30°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Relative Humidity (Operation): 5% to 95% (non-condensing)
• Relative Humidity (Storage): 5% to 95% (with condensation)
• Dimensions: 100 mm x 50 mm x 25 mm
• Weight: 0.5 kg
