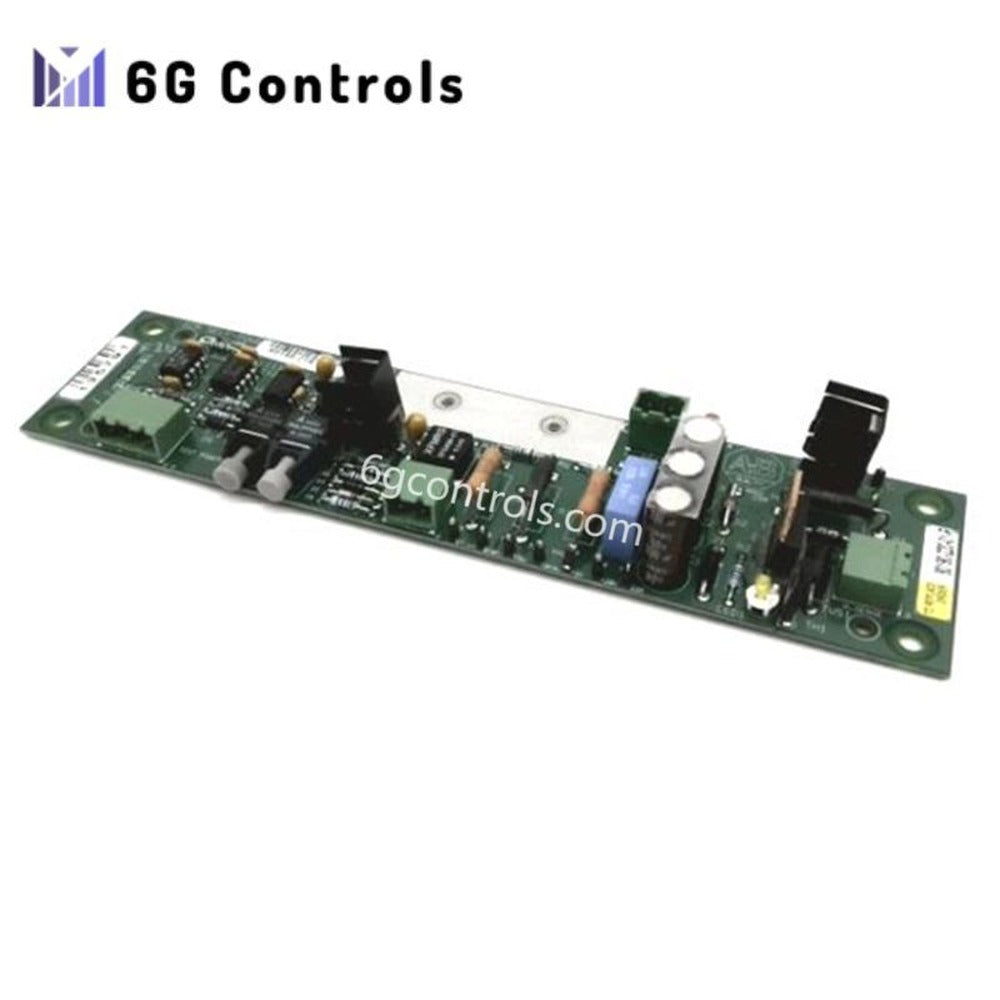

Allen Bradley 80190-220-01-R Driver Board Brand New

Overview

The Allen Bradley 80190-220-01-R is a compact driver board designed for AC motor control. It supports variable speed and direction adjustments using a pulse width modulation (PWM) method. Engineers rely on it in automation, HVAC, and pumping systems. It functions as a variable frequency drive (VFD), delivering consistent motor performance. Furthermore, its SCR-based gate driver ensures high-efficiency switching. This makes it ideal for both light and heavy-duty industrial applications.

Technical Specifications

• Model Number: 80190-220-01-R

• Type: Driver Board

• Manufacturer: Allen Bradley (Rockwell Automation)

• Rated Voltage: 220 VAC

• Rated Current: 20 A

• Rated Power: 4.4 kW

• Output Frequency: 0–60 Hz

• Output Current: 0–20 A

• Control Method: Pulse Width Modulation (PWM)

• Technology: SCR (Silicon-Controlled Rectifier) Gate Driver

• Power Source: Self-powered

• Category: Controls & Indicators

• Subcategory: CPU/Control Board

• Weight: 0.18 lbs
