Overview

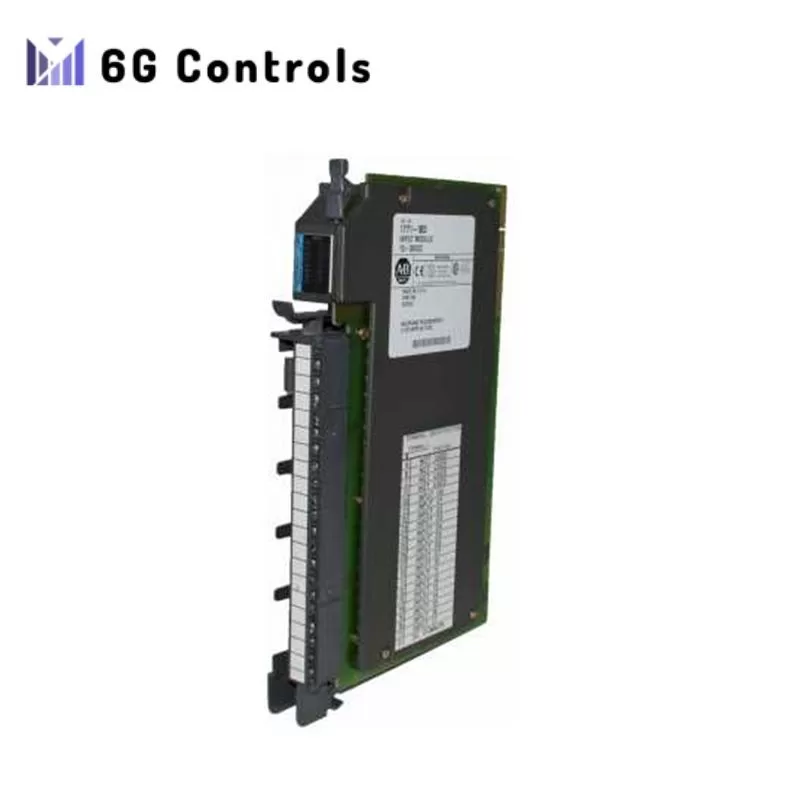

The Allen-Bradley 1771-IBD is a 16-point sinking/sourcing digital input module for PLC-5 controllers. It interfaces with external devices providing a DC voltage between 10 and 30 volts. The module includes a common ground connection. Each input point has an adjustable filter delay from 0.2 to 2.0 seconds.
Features
- 16 sinking/sourcing digital inputs
- Input voltage range: 10 to 30 VDC
- Common ground connection
- Individual filter delay for each input point
- Status LEDs for each input point
- Half-size module
Technical Specifications
- Input voltage range: 10 to 30 VDC
- Input current: 2.2 mA per input
- Output voltage range: 0 to 5 VDC
- Output current: 10 mA per output
- Filter delay: 0.2 to 2.0 seconds
- Power consumption: 7.3 watts
- Operating temperature: -40 to 75 degrees C
- Storage temperature: -40 to 85 degrees C
- Humidity: 5 to 95% non-condensing
- Vibration: 5 to 35 G at 20 to 500 Hz
- Shock: 30 G for 11 ms
- Dimensions: 3.94 inches (100 mm) x 6.26 inches (160 mm) x 0.87 inches (22 mm)
- Weight: 0.66 pounds (300 grams)
Applications
The Allen-Bradley 1771-IBD is versatile. It is used in various applications, such as:
- Reading pushbuttons and switches
- Monitoring sensors
- Interfacing with relays
- Controlling solenoids
- Reading encoders
Additional Information
The Allen-Bradley 1771-IBD is no longer in production. However, it is still widely used in legacy applications. Replacement modules and repair services are available from third-party vendors.
