Overview

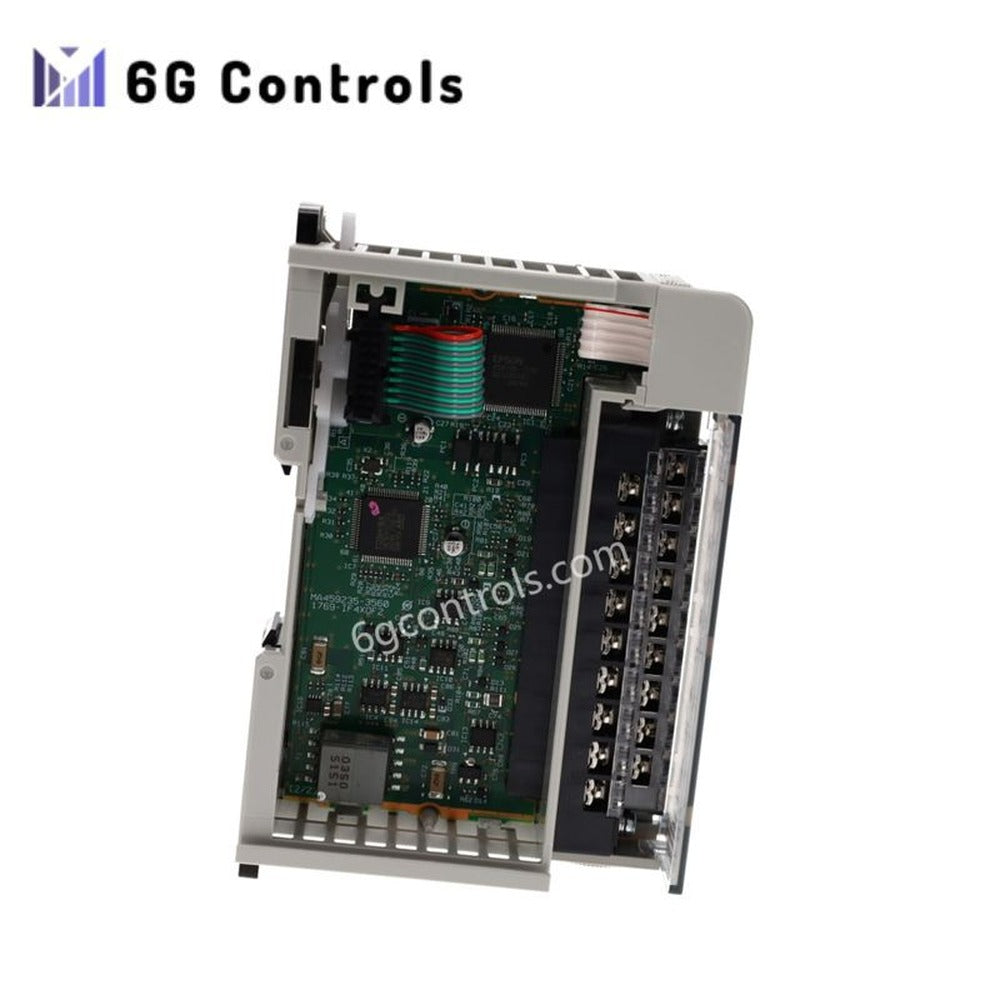

The Allen-Bradley 1769-IF4XOF2 is a compact I/O module designed for CompactLogix and MicroLogix 1500 controllers. This module combines four analog input channels and two analog output channels, offering a versatile solution for industrial automation systems. It is ideal for applications that do not require high-resolution or critical accuracy, making it cost-effective for general process control tasks.
Technical Specifications
Inputs
- Number of Inputs: 4 analog input channels (configurable for differential or single-ended)
- Input Type: Voltage (0 to 10.5 VDC) and Current (0 to 21 mA)
- Input Voltage Range: 0 to 10.5 VDC
- Input Current Range: 0 to 21 mA
- Resolution: 8 bits plus sign (always positive)
- Impedance:
- Voltage terminal: 150 kΩ
- Current terminal: 150 Ω
- Accuracy:
- Voltage input: ±0.7%
- Current input: ±0.6%
- Operational Accuracy Drift: ±0.006% per °C
Outputs
- Number of Outputs: 2 single-ended analog outputs
- Output Voltage Range: 0 to 10 VDC
- Output Current Range: 0 to 20 mA
- Output Accuracy: ±0.5% full scale
- Load Specifications:
- Voltage output: Minimum load > 1 kΩ at 10 VDC
- Current output: Maximum resistive load of 300 ohms
- Response Time:
- Current output: 0.3 ms (with resistance) / 3.0 ms (with capacitance)
Electrical Characteristics
- Operational Voltage: 30 VDC/AC
- Common Mode Voltage: 10 VDC per channel
- Signal Type: Differential or Single-ended
Converter
- Type: Delta Sigma converter
- Resolution: 8-bit with sign bit
Module Features
- Channel Diagnostics: Over- or under-range detection and process alarms
- Power Supply Distance Rating: Modules should not exceed 8 modules from the power supply in CompactLogix systems
- Enclosure: Open-style, DIN rail or panel mountable
Physical Dimensions
- Weight: 0.88 lbs (290 grams)
- Dimensions: 118 x 87 x 35 mm
