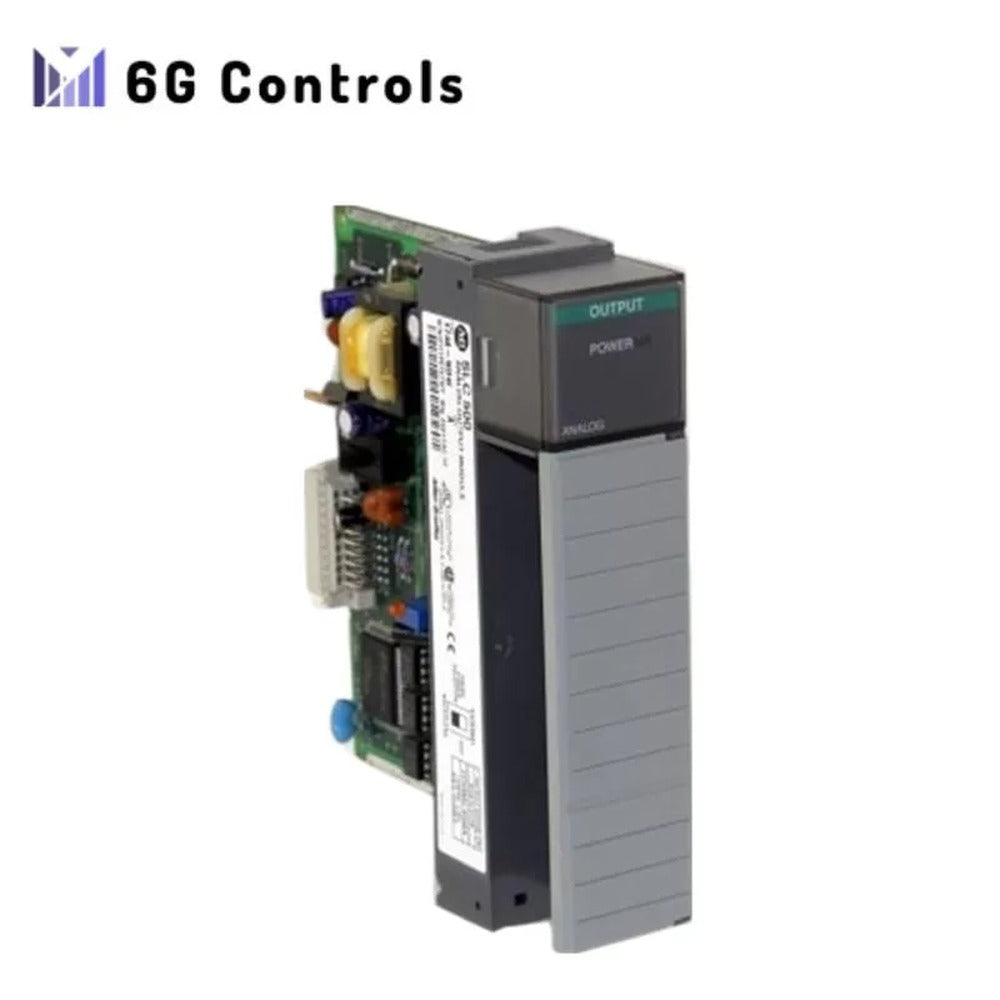

Allen Bradley 1746-NIO4I Combination Analog I/O Module

Overview

The Allen Bradley 1746-NIO4I is a combination analog I/O module designed for the SLC 500 series of programmable logic controllers (PLCs). It offers both input and output channels, making it versatile for various industrial automation applications.

Technical Specifications

I/O Channels

4 analog input channels
4 analog current output channels

Input Channels

Type: Current input
Range: -20 to +20 mA
Resolution: 1.22 mA/LSB
Impedance: 250 ohms

Output Channels

Type: Current output
Range: Configurable
ADC: Sigma-Delta ADC
Resolution: 16 bits, +/-1 LSB
Repeatability: 0.01%
Non-Linearity: 0.01%

Power Supply

The 1746-NIO4I operates with a 5 VDC power supply from the PLC backplane.

Environmental Suitability

The 1746-NIO4I is designed for industrial environments.

Key Features

Combination Module: It provides both input and output capabilities in a single module.
High Resolution: The module offers accurate measurement and control.
Flexible Configuration: You can configure output ranges for various applications.
Reliable Performance: It is built for industrial environments.
Compact Design: The module saves space in the control panel.

Applications

The 1746-NIO4I is commonly used in applications that require:

Monitoring and controlling analog signals
Process control
Temperature control
Pressure control
Flow control
