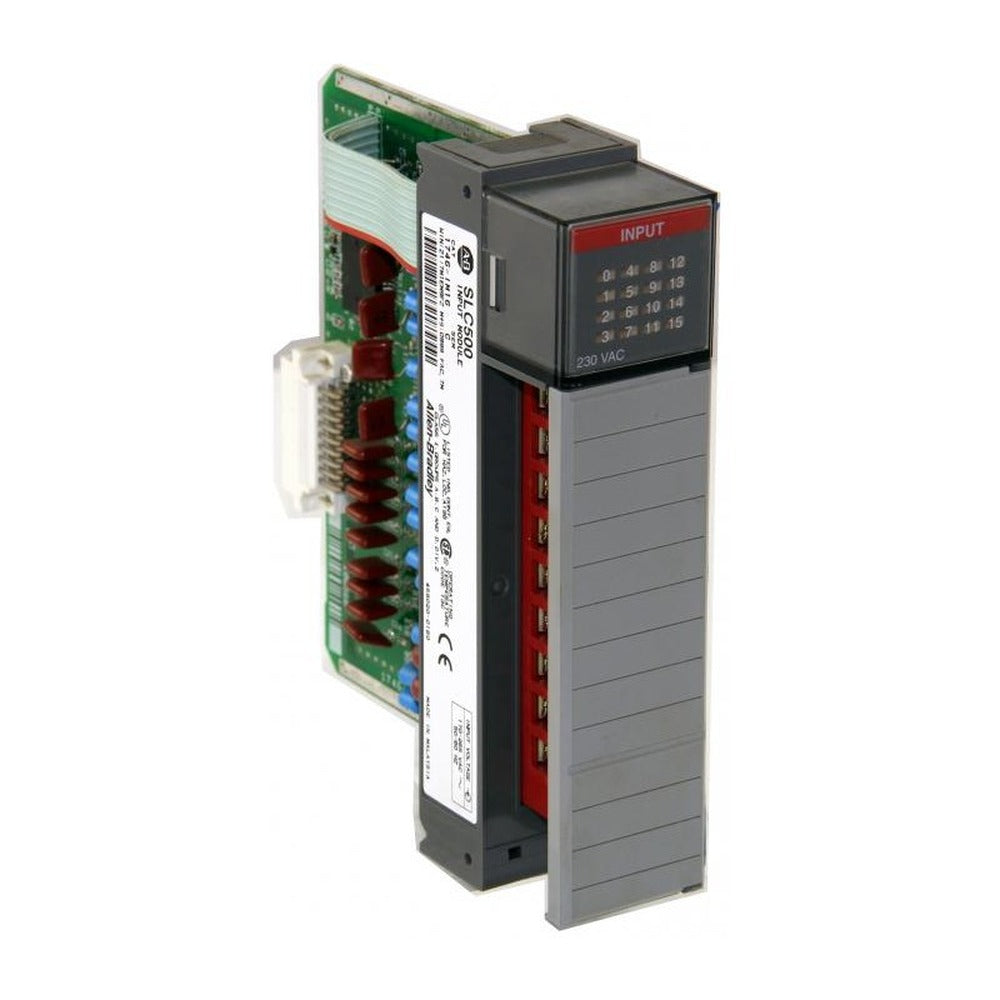

Allen Bradley 1746-IM16 Original Packaging Module in Stock

The Allen Bradley 1746-IM16 is a 16-channel AC input module for the SLC-500 programmable logic controller (PLC). It provides 16 isolated inputs for monitoring AC voltage signals. The module can be used to monitor a variety of devices, such as sensors, motors, and valves.

Features:

• 16 isolated AC input channels
• 200-240V AC input voltage
• 170-265V AC operating voltage
• 0.35 watts per point heat dissipation
• 0.425 watts minimum wattage
• 6 watts total wattage
• 16 points per common
• 0.085A backplane current at 5V DC or 0A at 24V DC
• 35ms maximum ON and OFF signal delays
• 0-60°C operating temperature
• -40-85°C storage temperature
• 5-95% humidity
• ICS 2-230 NEMA noise immunity
• Class I, Division 2 Groups A, B, C, and D hazardous environments
• 30G operating shock rating

Applications:

The Allen Bradley 1746-IM16 can be used in a variety of applications, including:

• Machine control
• Process control
• Building automation
• Robotics
• Transportation
• Medical devices
• Test and measurement

Technical Specifications:

• Model number: 1746-IM16
• Input type: AC
• Number of channels: 16
• Input voltage: 200-240V AC
• Operating voltage: 170-265V AC
• Heat dissipation: 0.35 watts per point
• Minimum wattage: 0.425 watts
• Total wattage: 6 watts
• Points per common: 16
• Backplane current: 0.085A at 5V DC or 0A at 24V DC
• Signal delays: 35ms maximum ON and OFF
• Operating temperature: 0-60°C
• Storage temperature: -40-85°C
• Humidity: 5-95%
• Noise immunity: ICS 2-230 NEMA
• Hazardous environments: Class I, Division 2 Groups A, B, C, and D
• Operating shock rating: 30G

Benefits:

The Allen Bradley 1746-IM16 offers a number of benefits, including:

• 16 isolated AC input channels
• Wide input voltage range
• Low heat dissipation
• Low power consumption
• Small footprint
• Rugged construction
• Wide operating temperature range
• Hazardous environment certification
• High shock rating

Conclusion:

The Allen Bradley 1746-IM16 is a versatile and reliable AC input module that can be used in a variety of applications. It offers a number of benefits, including a wide input voltage range, low heat dissipation, and a small footprint. The module is also rugged and reliable, making it a good choice for demanding applications.

Q: Is the Allen Bradley 1746-IM16 Original Packaging Module currently in stock?

A: Yes, the Allen Bradley 1746-IM16 Original Packaging Module is currently available in stock.

Q: What are the key features of the Allen Bradley 1746-IM16 Original Packaging Module?

A: The key features of the Allen Bradley 1746-IM16 Original Packaging Module include high-quality performance, a durable design, seamless integration, flexible configuration options, and easy installation and maintenance.

Q: In which industries can the Allen Bradley 1746-IM16 Original Packaging Module be used?

A: The Allen Bradley 1746-IM16 Original Packaging Module can be used in various industries, including manufacturing, oil and gas, automotive, pharmaceuticals, and food and beverage.

Q: What are the technical specifications of the Allen Bradley 1746-IM16 Original Packaging Module?

A: The technical specifications of the Allen Bradley 1746-IM16 Original Packaging Module are as follows: input voltage of 24V DC, operating temperature range of -20°C to 60°C, dimensions of 120mm x 80mm x 40mm, weight of 150 grams, and 16 input channels.

Q: What are the benefits of using the Allen Bradley 1746-IM16 Original Packaging Module?

A: By using the Allen Bradley 1746-IM16 Original Packaging Module, users can benefit from improved control and monitoring capabilities, enhanced efficiency and productivity, cost-effective automation solutions, increased system reliability and uptime, and seamless integration with existing equipment.
