Overview:

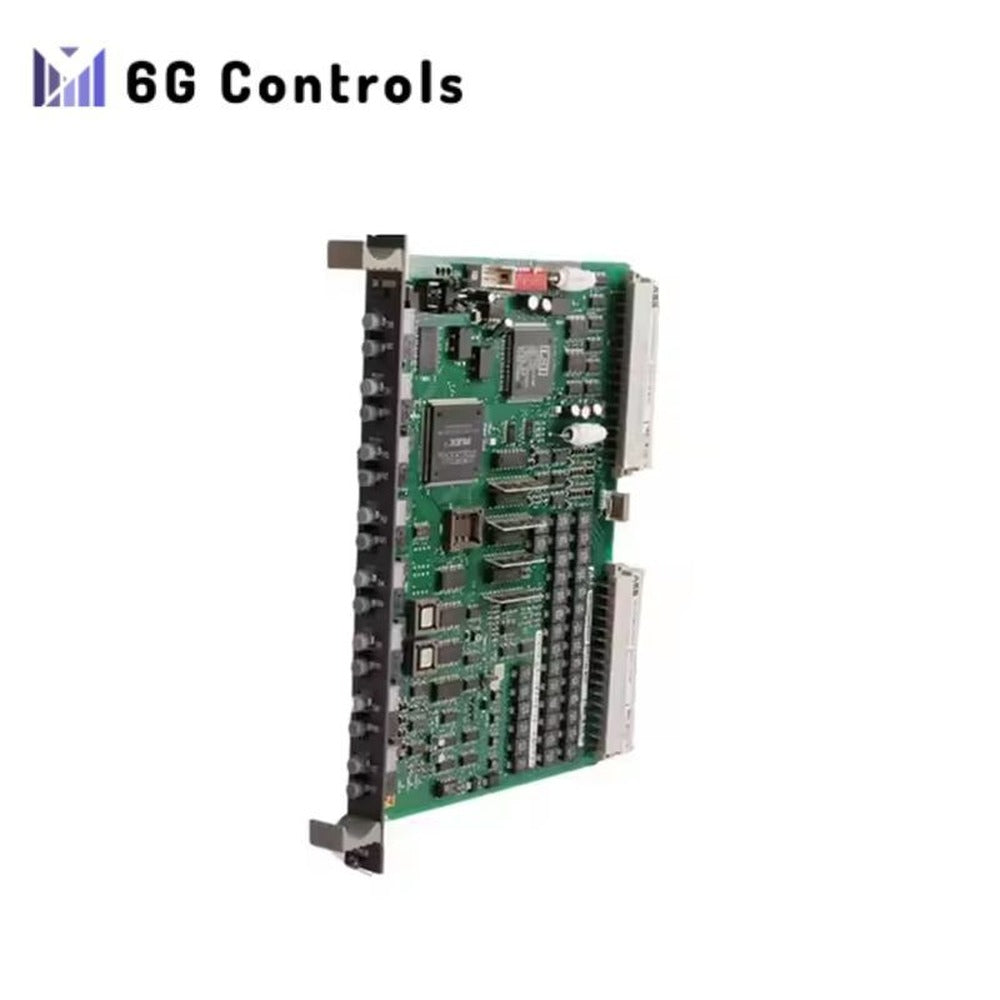

The ABB TPSG4AI 1KHL015623R0001 provides 16 analog inputs with a resolution of 12 bits. It supports an input range from -10 V to +10 V and includes a built-in filter for noise reduction. This module is suitable for various applications including data acquisition, process control, machine control, and building automation.
Key Features:
- 16 analog inputs
- 12-bit resolution
- Input range: -10 V to +10 V
- Built-in filter
- Ethernet, PROFINET, and Modbus communication
- 24 VDC power supply
- Dimensions: 100 x 100 x 50 mm
- Weight: 0.5 kg
Applications:
- Data acquisition
- Process control
- Machine control
- Building automation
Technical Specifications:
- Number of channels: 16
- Resolution: 12 bits
- Input range: -10 V to +10 V
- Accuracy: ±0.1% of full scale
- Update time: 2 ms
- Input impedance: 2 MΩ
- Common mode rejection ratio: 60 dB at 50 Hz
- Power supply voltage: 24 VDC
- Power consumption: 2 W
- Operating temperature: -20 to +60 °C
- Storage temperature: -40 to +80 °C
- Humidity: 0 to 95% RH (non-condensing)
- Vibration: 0.5 g RMS, 10 to 500 Hz
- Shock: 5 g, 11 ms
- Protection: IP20
