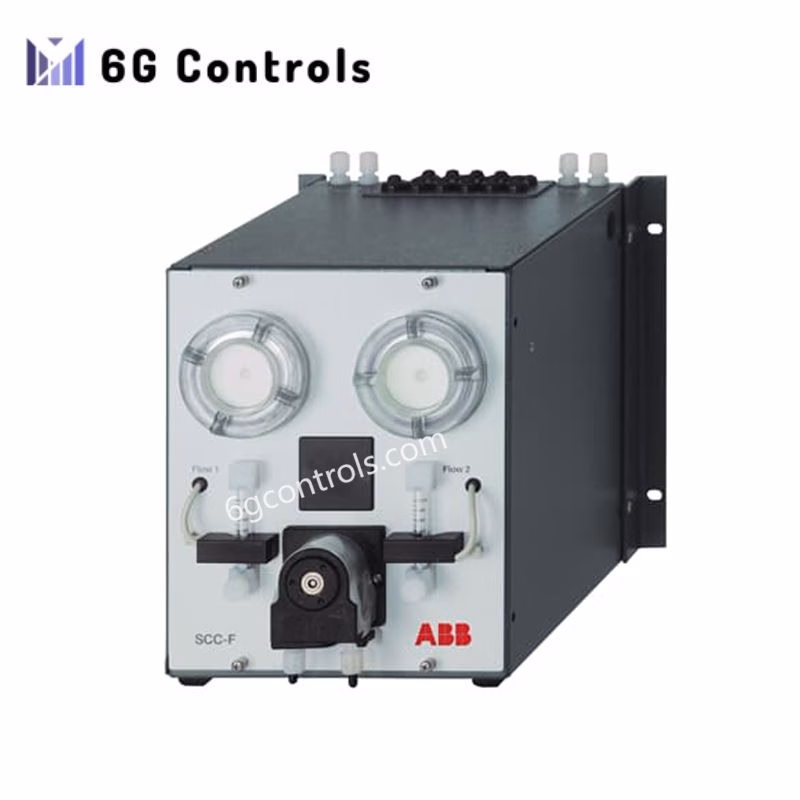

ABB SCC-F 31004G9B Sample Gas Feed Unit High Quality

Overview

The SCC-F 31004G9B is a Sample Gas Feed Unit used for continuous gas analysis. It ensures precise sample gas transportation and conditioning for analyzers, making it suitable for demanding industrial environments.

Technical Specifications

• Model Number: SCC-F 31004G9B

• Type: Sample Gas Feed Unit

• Dimensions:

  • Width: 266 mm

  • Height: 302 mm

  • Depth: 88.9 mm

• Weight:0.8 kg

• Gas Paths: Two independent gas paths, with an optional condensate pump

• Flow Rate: Adjustable via rotameter (10 to 100 l/h)

• Material: Corrosion-proof, metal-free gas lines

• Power Supply: Integrated switching amplifier for flow and condensate control
