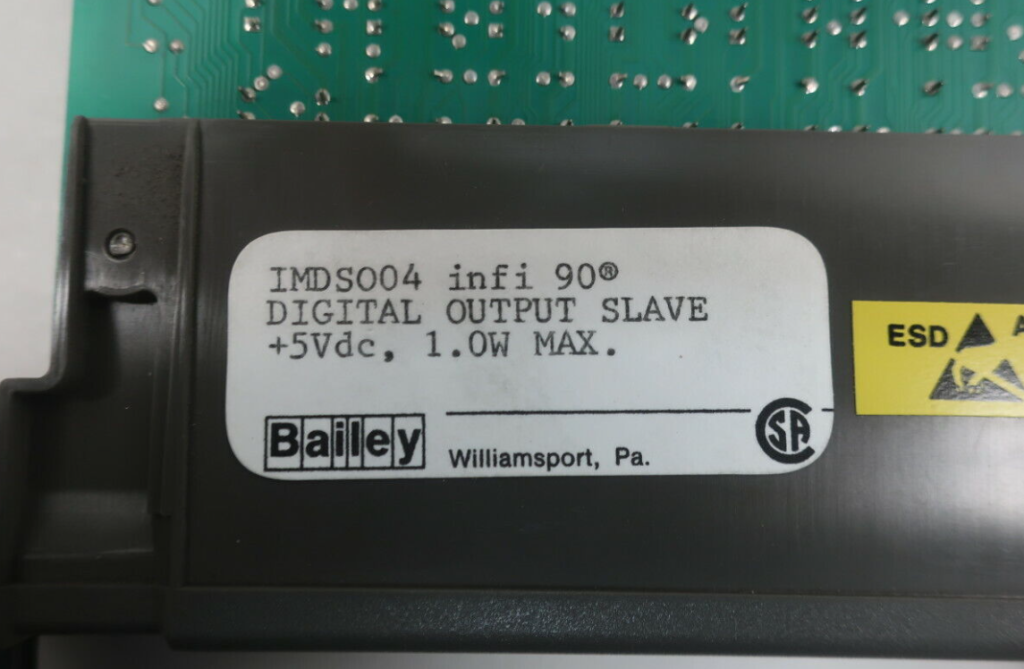

The ABB IMDSO04 is a digital output slave module that provides 16 discrete outputs for use with the Infi90 PLC system. It is a cost-effective solution for a variety of applications, including machine control, building automation, and process control.
Product Introduction
The IMDSO04 is a compact, easy-to-use module that can be quickly and easily installed in a standard Infi90 module mounting unit. It has a wide operating temperature range of -40 to 85 degrees Celsius and is resistant to shock and vibration.
Features
- 16 discrete outputs
- TTL compatible outputs
- 300 V rms isolation between outputs
- Meets ANSI/IEEE C37.90A-1974 surge withstand capability test
- CSA certified as process control equipment in an ordinary (non-hazardous) location
Applications
The IMDSO04 can be used in a variety of applications, including:
- Machine control
- Building automation
- Process control
- Security systems
- Traffic control
- Medical equipment
Technical Specifications
- Number of outputs: 16
- Output type: TTL compatible
- Voltage: 24 V DC
- Current: 200 mA
- Isolation: 300 V rms
- Temperature range: -40 to 85 degrees Celsius
- Shock: 15 g
- Vibration: 2 g
Benefits
The IMDSO04 offers a number of benefits, including:
- Cost-effective
- Easy to use
- Wide operating temperature range
- Resistant to shock and vibration
- CSA certified
Conclusion
The ABB IMDSO04 is a versatile and reliable digital output slave module that is ideal for a variety of applications. It is a cost-effective solution that is easy to use and install.
