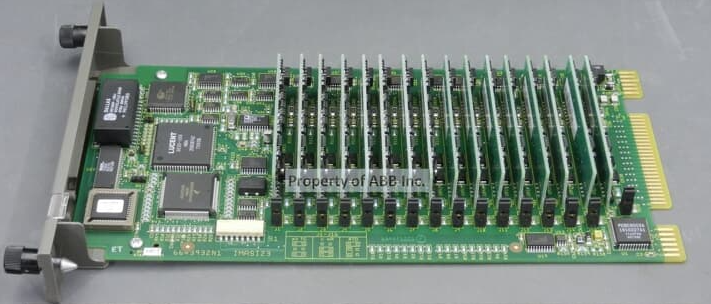

The ABB product with ID IMASI23 is a 16-channel universal analog input slave module. It falls under the category of I/O (Input/Output) modules and is designed to be part of the Symphony Harmony INFI 90 control system. This module allows for the integration of analog input signals into the control system for monitoring and processing.
General Information:
- Product ID: IMASI23
- ABB Type Designation: IMASI23
- Catalog Description: 16 ch universal analog input slave mod
- Long Description: 16 ch universal analog input slave mod
- Analog input channels: 16
- Thermocouples: Type B, E, J, K, L, N (14 AWG), N (28 AWG), R, S, T, U
- 3-wire RTD: Chinese type E and Chinese type S
- Millivolt: 100 mV to 10 V
- High level: 4 to 20 mA
- Current: 0 to 20 mA
- Input impedance: 200 kΩ
- A-to-D resolution: 16 bits
- Conversion time: 100 ms
Additional Information:
- Product Type: I-O_Module
Ordering:
- HS Code: 853890 – Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37.- Other
- Customs Tariff Number: 85389081
Dimensions:
- Product Net Depth / Length: 73.66 mm
- Product Net Height: 360.68 mm
- Product Net Width: 269.24 mm
- Product Net Weight: 0 kg
Environmental:
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- Number of Batteries: 0
Please note that this information provides an overview of the ABB IMASI23 analog input slave module, including its specifications and categorization within ABB’s product ecosystem.
