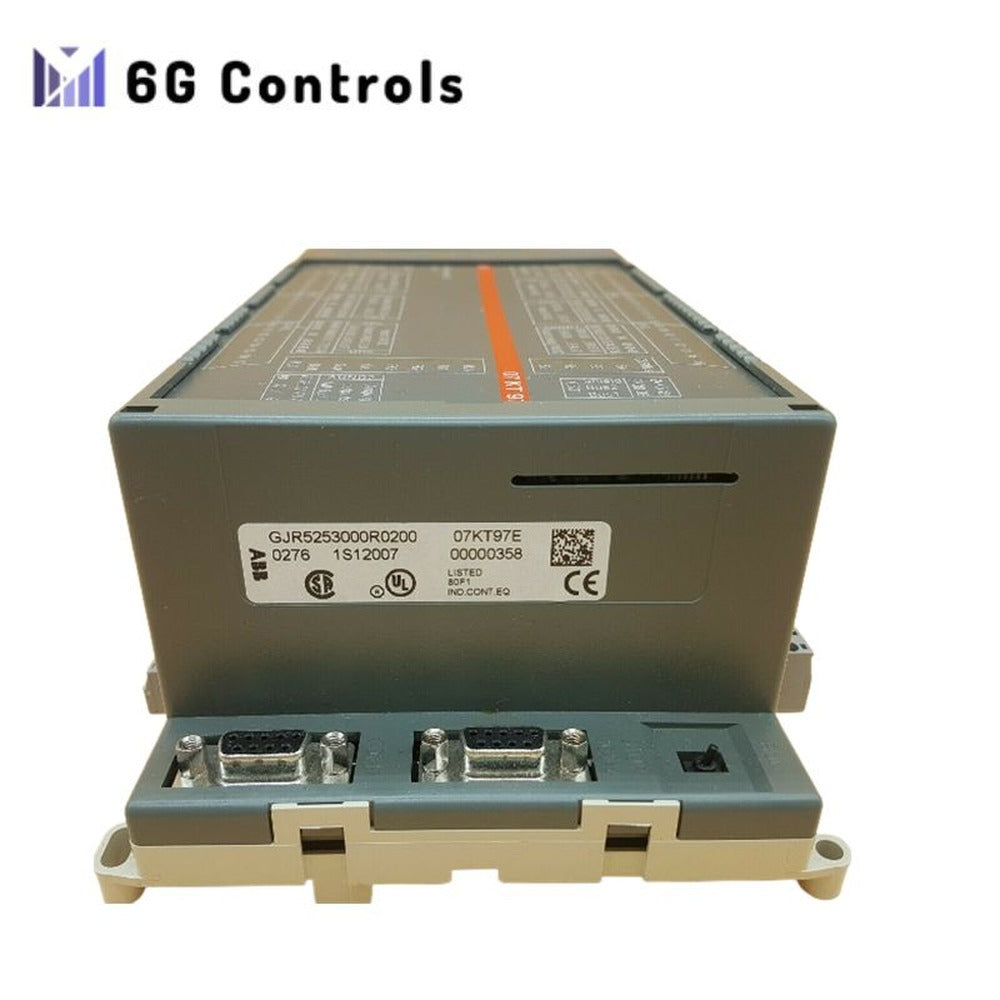

ABB 07KT97E GJR5253000R0200 Central Unit High Quality

General Information

• Product ID: GJR5253000R0200
• ABB Type Designation: 07KT97
• Catalog Description: 07KT97 PLC Central unit, 24V DC

Additional Information

• ABS Certificate: 1SAA960000-0101
• Ambient Air Temperature:
  • Operation: 0 … +55 °C
  • Storage: -25 … +75 °C
• Analog Inputs:
  • 8 channels, supports:
    • 0 … +5V (10 bit + sign)
    • -5 … +5V (10 bit + sign)
    • 0 … +10V (11 bit + sign)
    • -10 … +10V (11 bit + sign)
    • 0 … 20mA (12 bit)
    • 4 … 20mA (12 bit)
    • PT100 (2 or 3 wire, 12 bit, bipolar)
  • Usable as digital inputs
• Analog Outputs:
  • 4 channels, supports:
    • -10 … +10V (11 bit + sign)
    • 0 … 20mA (12 bit)
• CS31-Bus: 1
• CSA Certificate: 1SAA960000-1102
• Core Credit: 0.00
• Country of Origin: Germany (DE)
• Customs Tariff Number: 85371091
• Data Sheet: KT97, KT96, KT95: Basic Units
• Declaration of Conformity – CE: 1SAD938504-0047
• Environmental Information: 1SAA960001-2401
• Frame Size: Spare Parts
• GL Certificate: 1SAA960001-0403
• Gross Volume: 6.142 dm³
• Gross Weight: 5.71 kg
• Instructions and Manuals: KT97, KT96, KT95: Basic Units
• Invoice Description: 07KT97 PLC Central unit, 24V DC
• LR Certificate: 1SAA960000-0502
• Made To Order: No
• Maximum Hardware Counter Input Frequency: 50 kHz
• Maximum Number of Analog I/Os: 232 AI, 228 AO
• Maximum Number of Digital I/Os: 1024
• Medium Description: 07KT97
• Memory Size User Data: 256 kB
• Memory Size User Program: 480 kB
• Memory Type User Data: Flash EPROM
• Memory Type User Program: Flash EPROM, non-volatile RAM, SMC
• Minimum Order Quantity: 1 piece
• Number of Analog Configurable I/Os: 0
• Number of Digital Configurable I/Os: 8
• Number of Digital Inputs DC 24V: 24
• Number of Digital Outputs DC 24V: 16
• Number of Hardware Counters: 2
• Object Classification Code: K
• Order Multiple: 1 piece
• Output Current: 0.5 A
• Output Voltage (Uout): 24 V DC
• Package Level 1 Gross Weight: 1.05 kg
• Package Level 1 Units: 1 case
• Parallel Extension: 1
• Part Type: New
• Primary Voltage: 24 V
• Product Depth: 85 mm
• Product Main Type: 07KT97
• Product Name: 07KT97 PLC Central unit, 24V DC
• Product Net Weight: 5.71 kg
• Product Type: Spare Parts
• Programming Software: AC1131
• Quote Only: No
• RMRS Certificate: 1SAA960000-0701
• Real-time Clock: Yes
• RoHS Information: 1SAA960003-4401
• Selling Unit of Measure: piece
• Serial Port 1 Type: RS232 / Programming, Modbus Master or slave
• Serial Port 2 Type: RS232 / Modbus Master or slave, ASCII
• Short Description: 07KT97: AC31, Prog. Logic Controller 480KB
• Speed for 1000 instructions (65% Logic, 35% Word): 0.3 ms
• Stocked At (Warehouses): Menden, Germany; Ladenburg, Germany
• Terminal Type: Screw Terminals, Pluggable
• UL Certificate: 1SAA960000-1601
• UNSPSC: 32151705
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• eClass: 27-24-22-07
